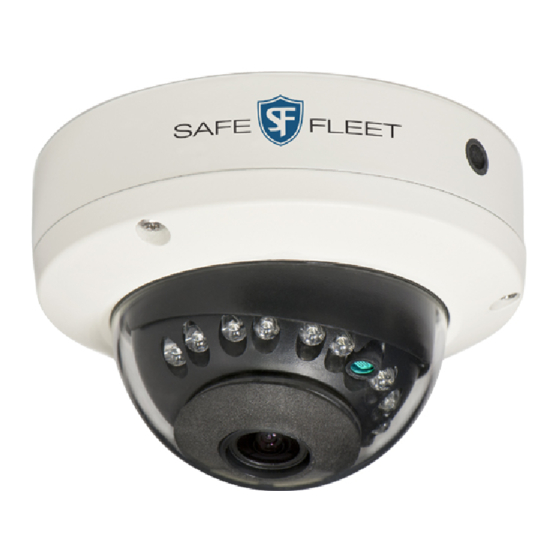

Safe Fleet SEON HD1Q Quick Install Manual

Specifications
Power Consumption
Operating Voltage Range
Operating Temperature Range
Resolution
Infrared LED Lamps
Minimum Illumination
Enclosure Size
Enclosure Material
Dome
Connector Cable Length
Weight
Support
Routine Maintenance
Most liquid cleaners or graphite gel can be used to clean your camera enclosure. Do not use
abrasive cleaners that can scratch the window and reduce visibility of the camera.
Replacing Damaged Housing
If the camera housing or dome is damaged or scratched, order a replacement part from Seon. To
remove and replace the housing, follow the steps in Step 3 and Step 6.
Service
If your HD1Q Series Dome Camera is to be returned to Seon Design for service, please call toll
free 1-877-630-7366, or 604-941-0880, and provide the model and/or serial number of your
unit. Ask for a Return Authorization (RA) number. An RA number allows the Service Technicians
to track your product when it comes in for service. Please display the RA number on the outside
of the package. ANY PRODUCT SENT TO SEON DESIGN WITHOUT AN RA NUMBER WILL BE
RETURNED.
Warranty
For full warranty information, go to www.seon.com/warranty.html.
Documentation
Copies of this guide can be found online at https://community.seon.com
Information in this guide is subject to change without notice.
1 W (IR off ); 2 W (IR on)
12 VDC ± 10% (powered by DVR)
-4 to 122ºF (-20 to 50ºC)
720p
12 LEDs (5mm)
Color: 0.1 lux (F2.0)
B&W, IR LED on: 0 lux
Diameter : 3.74" (95 mm)
Height: 2.64" (67 mm)
Solid aluminum alloy
Impact-resistant polycarbonate, anti-glare,
scratch-resistant hardcoating, UV protected
12" (30 cm)
0.52 lbs (0.24 kg)

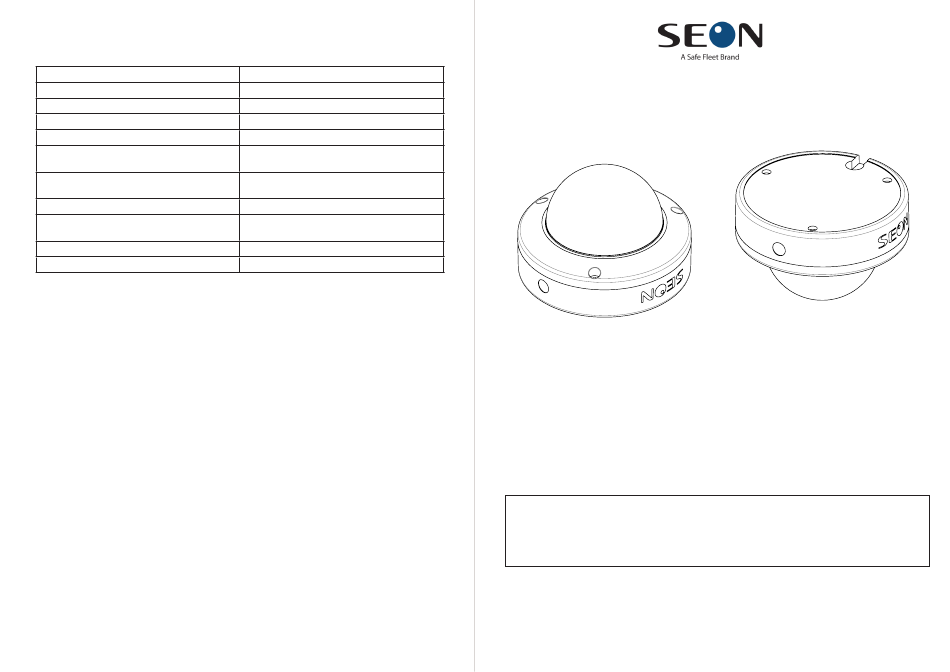

HD1Q Dome Camera
Quick Install Guide
COPYRIGHT SEON DESIGN INC., ALL RIGHTS RESERVED. THIS DOCUMENT MAY NOT BE DISCLOSED, OR REPRODUCED BY ANY MEANS WITHOUT THE WRITTEN CONSENT OF SEON DESIGN.
1 2
A
B
C
Installation Kit Contents
The HD1Q camera with IR is designed for interior use only. You'll find in this kit the following
components:
• 1 HD1Q camera, including dome, gasket, and connector cable
NOTES:
• 3 x No. 10 screws with washers (1" length)
D
MATERIAL: , ## GAUGE.
BEND RADIUS 0.8mm UNLESS OTHERWISE SPECIFIED.
• 1 Security key
BEND ANGLES 90 UNLESS OTHERWISE SPECIFIED.
FINISH:
• 1 Quick Install Guide
1 2
• 1 Drilling template (Part #: 700-1090)
File Last Saved Date: May-11-17 9:22:11 AM
WARNING: Cable Compatibility
This camera requires a special Analog High Definition (AHD) cable - as indicated by a blue band
in front of the connectors. The AHD cable is not included with the camera kit. If you require an
AHD Cable, please contact our customer service department to place an order.
© Seon Design Inc. | May 2017 | All rights reserved.
www.seon.com Part Number: 700-1084 R2
3
4
5
THIRD ANGLE PROJECTION
SHEET
SIZE
A
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN MM
MANUFACTURING DESCRIPTION:
DATE APPROVALS
TOLERANCES ARE:
NO DECIMAL PLACES
DRAWN:
1 DECIMAL PLACE
ENG: PART NUMBER:
2 DECIMAL PLACE
ANGLES
ARENA Tracking:
3 4 5
6
A
B
C
SEON DESIGN INC.
REVISION
111 - 3B Burbidge St.
Coquitlam, BC D
Canada V3K 7B2
TEL: 604.941.0880
FAX: 604.677.6050
SHEET:
1 of 3
6
File Name: 720P_AHD_3D drawing
