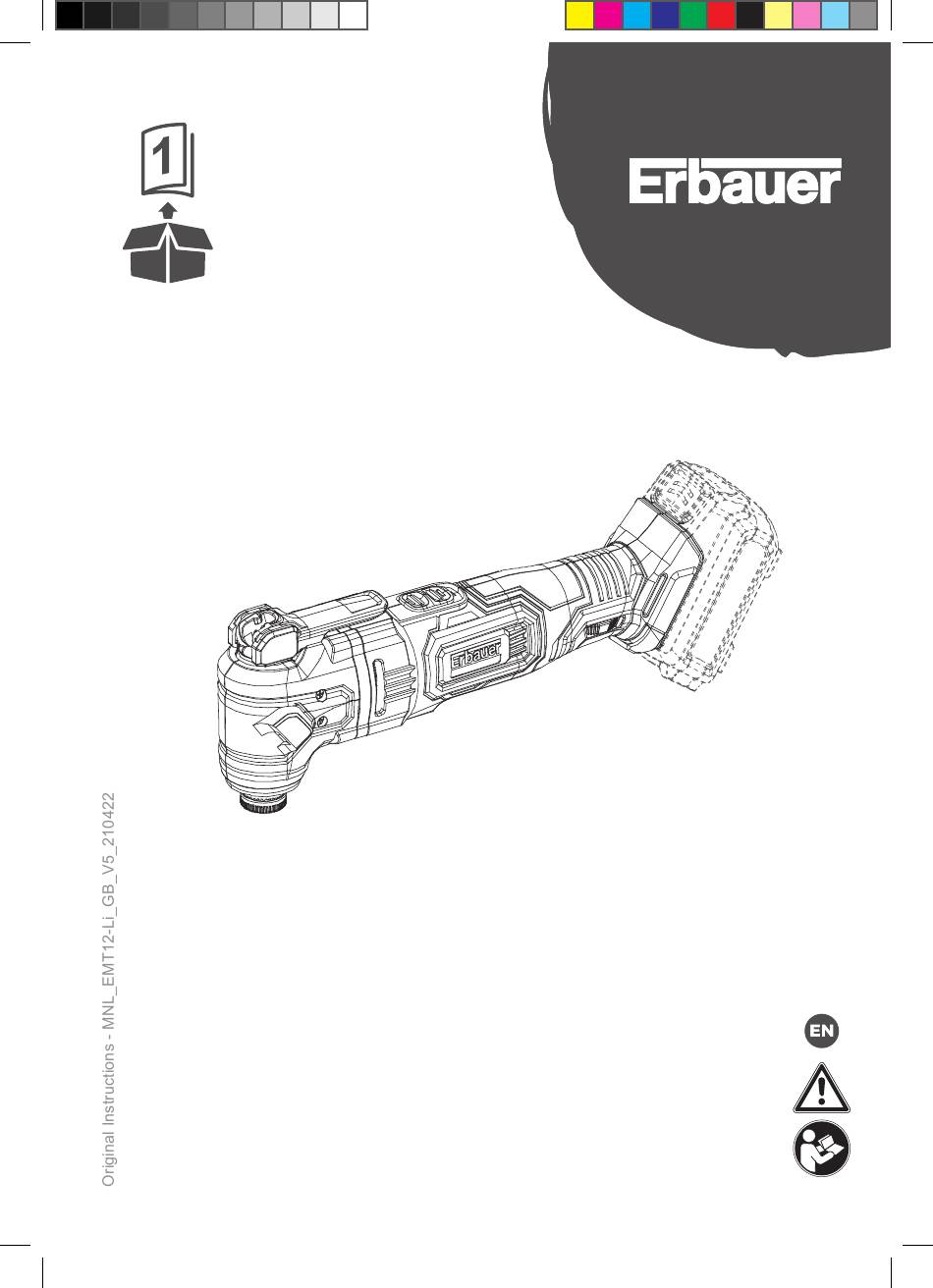

  • Page 1 EAN: 5059340010731 EMT12-Li ORIGINAL INSTRUCTIONS V50421 / BX220IM MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 1 4/22/21 6:38 PM...

  • Page 2: Table Of Contents

    Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 2 4/22/21 6:38 PM...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 3 4/22/21 6:38 PM...
  • Page 4 Product description MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 4 4/22/21 6:38 PM...
  • Page 5 76-100% 51-75% 26-50% 5-25% <5% MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 5 4/22/21 6:38 PM...
  • Page 6 MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 6 4/22/21 6:38 PM...
  • Page 7 MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 7 4/22/21 6:38 PM...

  • Page 8: Safety Instructions

    Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 9 c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 10 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 11 e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 12 e) Do not use battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature.
  • Page 13 d) Double check that accessories tool attachments are properly fixed. One minute testing running in no-load condition will be helpful to identify any problems. e) Keep the handles dry to ensure safe control. Grip the product securely with two hands so you have full control at all times.
  • Page 14 n) Only use tool attachments in good condition. Do not use them if they are torn or worn. o) Longer period using may lead overheating blade tips. Therefore take breaks of approx. 15 minutes on a regular basis to let the blade tips cool down. p) Keep hands away from the sawing area.
  • Page 15 ADDITIONAL SAFETY WARNINGS FOR BATTERY PACK a) Observe the plus (+) and minus (-) marks on the battery and ensure correct use. b) Do not connect the positive terminal and negative terminal of the battery to each other with any metal object (such as wire).
  • Page 16 o) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. p) Battery pack gives its best performance when it is operated at normal room temperature (20°C±5°C). q) Keep battery pack out of the reach of children. r) Retain the original product literature for future reference.
  • Page 17 To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
  • Page 18 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
  • Page 19 The declared vibration total value has been measured in accordance with EN 62841-1 and EN 62841-2-4 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool...
  • Page 20 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 21 b) Ensure that the product is in good condition and well maintained. c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

  • Page 22: Product Description

    Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: a) Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
  • Page 23 Technical specifications > Rated voltage : 12 V d.c. > Oscillating angle : 3.2º > No load speed : 8000-19000 min > Weight (without battery pack) : approx. 1.0 kg > Sanding paper fixing : Hook & loop > Base plate dimension : Approx.

  • Page 24: Assembly

    Rating label explanation EMT12-Li = Model number E = Erbauer MT = Multi Tool 12 = 12 V d.c. Li = LITHIUM ION Assembly Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations.
  • Page 25 Do not smoke in the work area, around the product and in the vicinity of flammable materials! Cutting in wood. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.
  • Page 26 NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Setup BATTERY PACK (NOT INCLUDED) Release / Attach 1. To remove the battery pack, press down the release button (4a) and pull out the battery pack (4) from the battery pack holder (3a) (Fig.
  • Page 27 Tool attachments Material Application Sanding base plate Bare or painted Flat sanding and (13) & Sanding paper wood, metal, and reaching into (14) other surface, corners and along depending on grain edges size (grit) of sanding paper Plunge saw blade Wood, plastic, Separating or flush/ (11)
  • Page 28 WARNING! The blade of the tool attachment should be installed facing away from the tool body. Don’t assemble the tool attachment (11 /12) in wrong position as shown on Fig. H. Depending on application needs, the plunge saw blade (11) can also be assembled at ±90º...
  • Page 29 4. Insert the flange bolt (7) into the tool holder (8) and then turn the flange release lever (1) clockwise to fix the flange bolt (7). 5. Close the flange release lever (1) to lock mechanism until hearing a "click" sound. SANDING PAPER Selecting the right sanding paper Sanding paper is available with different grain sizes (grit) and for different material.

  • Page 30: Use

    Intended use This product is intended for dry sanding on wood and metal, cutting in wood, plastic and plasterboard, as well as scraping on wood, plastic and plasterboard, especially for sanding small surfaces (e.g. corners or edges) and plunge/flush cutting. This product can also be used with attachments of other popular brands when they are suitable for the tool holder (incl.
  • Page 31 Automatic work light The LED work lights (9) will automatically illuminate when the product is switched on, and will automatically turn off a short while after the product is switched off. This provides additional light on the surface of the workpiece for operation in lower light situations.
  • Page 32 Sanding (Fig. N) The material removal rate and sanding result are primarily determined by the choice of sanding paper, the preselected speed level and the contact pressure. Only immaculate sanding papers achieve good sanding performance. WARNING! During operation fine dust will be generated! Some dusts are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting...
  • Page 33 Cutting (Figs. O, P and Q) WARNING! Only perform plunge cutting into soft materials such as plasterboard or soft wood! Never attempt to conduct any plunge cutting into hard materials such as metal! Use only the appropriate saw blade for cutting! If you are unsure when cutting, consult with an experienced person –...

  • Page 34: Care & Maintenance

    Care & maintenance WARNING! Always switch the product off, remove the battery back and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1.
  • Page 35 Storage 1. Switch the product off and remove the battery pack. 2. Clean the product as described above. 3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place. 4. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.
  • Page 36 Problem Possible cause Solution 3. Unsatisfactory 3.1. Blade / sanding paper is 3.1. Replace with a new one result dull/damaged 3.2. Blade / sanding paper is 3.2. Use suitable blade / not suitable for work piece sanding paper material 4. Product 4.1.

  • Page 37: Guarantee

    Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product Multi Tool) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 38 Batteries and battery chargers are not covered under the Erbauer 3 Year Warranty and will have a guarantee period of 2 years from the date of purchase. If the product is defective, we will, within a reasonable time, repair or replace it.

  • Page 39: Declaration Of Conformity

    Declaration of conformity MNL_Erbauer_GB_EMT12-Li_Multi tool_V4_210408.indd 39 4/8/21 3:18 PM...
  • Page 40 EN 62841-1:2015 EN 62841-2-4:2014 EN 55014-1:2017 EN 55014-2:2015 07/10/2021 MNL_Erbauer_GB_EID12-Li-2_12V Impact driver_V12.indd 29 3/30/21 7:04 PM...
  • Page 41 EN 62841-1:2015 BS EN 62841-1:2015 EN 62841-2-4:2014 BS EN 62841-2-4:2014 EN 55014-1:2017+A11:2020 EN IEC 55014-1:2021 EN 55014-2:2015 EN IEC 55014-2:2021 BS EN 55014-1: 2017+A11: 2020 BS EN IEC 55014-1:2021 BS EN 55014-2: 2015 BS EN IEC 55014-2:2021 On:07/10/2021 MNL_Erbauer_GB_EID12-Li-2_12V Impact driver_V12.indd 29 3/30/21 7:04 PM...
  • Page 44 EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk MNL_Erbauer_GB_EMT12-Li_Multi tool_V5_210422.indd 40 4/22/21 6:39 PM...
