Summary of Contents for Erbauer EMST200

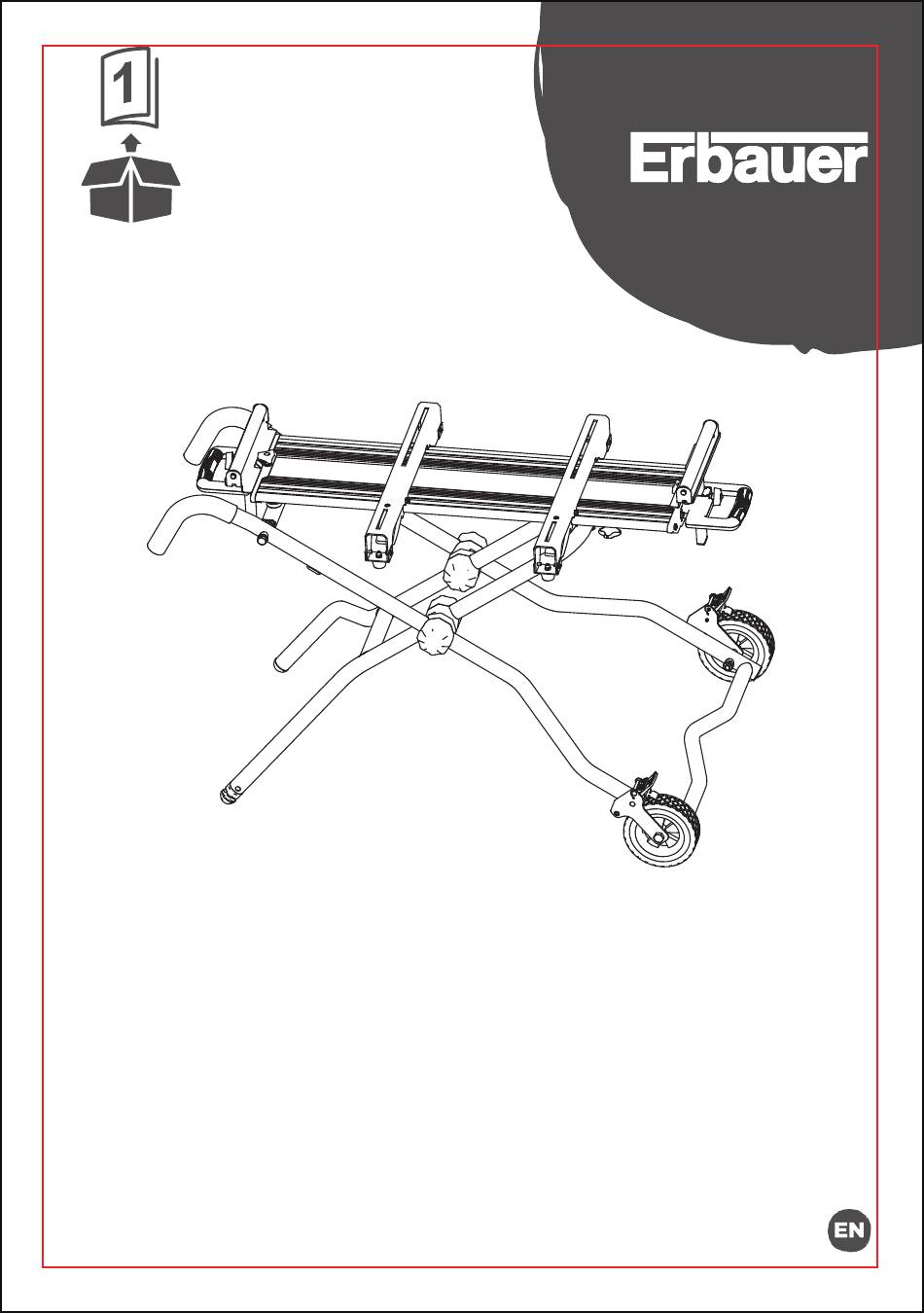

- Page 1 EAN: 3663602797357 EMST200 ORIGINAL INSTRUCTIONS V180626...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. X4PCS(M6X60MM) X4PCS(M6X43MM) X2 (M12X105mm) X2 (M12) X4PCS(M6X27MM)
- Page 4 Product description...
-
Page 8: General Power Tool Safety Warnings
Safety intructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions. -
Page 9: Health Advice
Inspect tool cord periodically and if damaged have them replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free of oil or grease. 13. Disconnect tools. When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply. - Page 10 - Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR MITRE SAW STAND WARNING! Do not operate the mitre saw stand until it is assembled, and you have read and unders tood the following instructions and the warning labels on the mitre saw stand.
- Page 11 oils come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Save these instructions. Refer to them frequently and use them to instruct others who may use this accessory. If you loan someone this accessory, loan them these instructions also to prevent misuse of the product and possible injury.
-
Page 12: Technical Specifications
Product description 1. Work Support Extension handle 2. Length adjustment knob x2 Handle 3. Quick Release Adjustable Foot 4. Rapid Clamp Tool Mount Work Frame 5. Work Surface Wheels 6. Height adjustment knob x2 Wheels Support TECHNICAL SPECIFICATIONS Technical Data >... - Page 13 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Designation of the tool ( E- Erbauer , MST - Mitre Saw Stand, EMST200 200 - Capacity kg)
-
Page 14: Assembling The Machine
UNPACKING - Unpack all parts and lay them on a flat, stable surface. - Remove all packing materials and shipping devices if applicable. - Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 15 OPERATION INSTRUCTION Attaching your Mitre Saw to the Tool Mounts (F) - Unplug the saw and lock the saw arm in the down position, place a tool mount underneath the saw, aligning the mounting holes on the mitre saw base with the slot in the top of the tool mount. - Fix carriage bolt up through both the tool mount and a mounting hole in the saw.
- Page 16 To remove the Mitre Saw from the Stand (H & I) Raise the locking levers to unlock the saw and tool mounts. Grasp the handles on either side of the assembly and lift away from the front rail of the stand to disengage. With the assembly tilted slightly away from you, lift the assembly to disengage from the rear rail of the stand.
- Page 17 Care & maintenance WARNING! To ensure safety and reliability, all repairs should be performed by a qualified service technician. WARNING! When servicing, use only identical replacement parts. The use of any other parts may create a hazard or cause damage to the tool. WARNING! To avoid injury from unexpected starting or electric shock unplug the tool from the power supply before cleaning or performing any maintenance.
- Page 18 STORAGE - Clean the product as described above. - Store the product and its accessories in a dry, frost-free place. - Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. - We recommend using the original package for storage or covering the product with a suitable cloth to protect it against dust.
- Page 19 Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered.
- Page 20 Manufacturer, Fabricant, Producent, Hersteller, Producător, Fabricante: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products Distribuidor: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com To view instruction manuals online,...
