Summary of Contents for Erbauer EBS18-Li

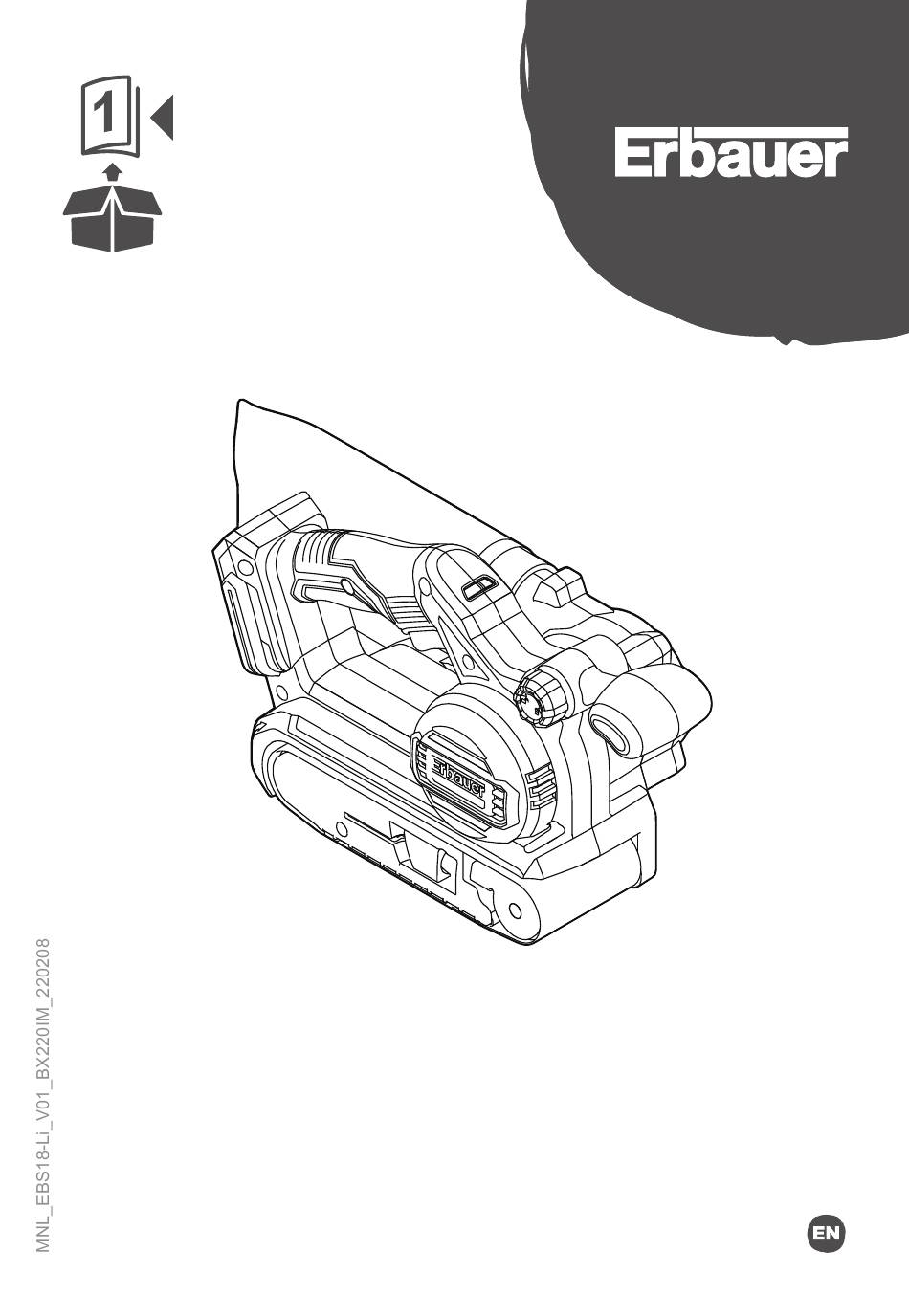

- Page 1 EAN. 5059340253206 EBS18-Li ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
-
Page 4: Product Description
PRODUCT DESCRIPTION... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 7: Personal Safety
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. - Page 8 f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing away from moving parts. Loose clothes, jewellery or longhair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 9 f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 10 injury. f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
- Page 11 g. Before sanding, check the area is free of nails, screws, etc. h. Never stop the sander by applying a force to the base plate. i. Only use sanding belt in good condition. Do not use torn or worn sanding belt. j.
- Page 12 g. Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery in direct sunlight, or use or store the battery inside cars in hot weather. h. Do not place the battery in microwave ovens, high-pressure containers or on induction cookware.
- Page 13 To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
- Page 14 WARNING! Some dust particles created by power sanding, sawing, grinding, drilling and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paint • Crystalline silica from bricks and cement and other masonry products •...
-
Page 15: Residual Risks
Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately managed. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). -
Page 16: Technical Specifications
PRODUCT DESCRIPTION 1. Front handle 2. Front handle adjustment knob 3. Speed dial 4. Lock-on button 5. Dust bag 6. Power bar button 7. Battery release button 8. Battery pack (not included) 9. Rear handle 10. On/Off switch 11. Direction arrow 12. - Page 17 RATING LABEL EXPLANATION EBS18-Li = MODEL NUMBER E = ERBAUER BS = BELT SANDER 18 = 18 V d.c.
- Page 18 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear hearing protection. Wear a dust mask. Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. They will explode and cause injury.
-
Page 19: Assembling The Machine
UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 20 BATTERY PACK POWER BAR The Li-Ion battery pack (8) is equipped with a POWER BAR which is used to give an indication of the battery pack’s remaining charge. Press the POWER BAR button (6) to check battery charge as below. The LED will stay lit for approximately 5 seconds. 76-100% Charge 51-75% Charge 26-50% Charge...
- Page 21 Do not use the same sanding belt on different materials, e.g. do not use the sanding belt that has been used for sanding metal to sand wood. Small metal particles remaining in the sanding belt will lead to scratches. Attaching the sanding belt Place the sander on its side and pull the clamp lever (13) outward.
- Page 22 Connecting the dust extraction system Alternatively a dust extraction system or suitable vacuum cleaner can be connected to the dust extraction outlet by the vacuum adaptor (16) for a cleaner and safer work area.
-
Page 23: Intended Use
INTENDED USE This tool is intended for dry sanding of wood, plastic, metal, fillers as well as varnished surfaces. OPERATION SPEED DIAL (E) Adjust the tool speed by using the speed dial (3). The speed dial (3) is numbered “1” to “6”, with position “1” being the lowest speed and position “6”... - Page 24 entering the working area. Always let the product come to complete stop before putting it down. NOTE: The product is equipped with an auto belt tracking system, which will keep the belt centered automatically. OVERLOAD, TEMPERATURE AND CHARGING PROBLEM Problem Tool/ Battery Status Possible cause Solution Overload...
-
Page 25: Care And Maintenance
CARE & MAINTENANCE MAINTENANCE Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. - Page 26 Failure to follow manufacturer’s guidelines Loss of use of the goods Batteries and battery chargers are not covered under the Erbauer 3 Year Warranty and will have a guarantee period of 2 years from the date of purchase. If the product is defective, we will, within a reasonable time, repair or replace it.
-
Page 27: Declaration Of Conformity
DECLARATION OF CONFORMITY (UK) DECLARATION OF CONFORMITY Product • Cordless belt sander • EBS18-Li • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer. - Page 28 Product/ Produit/ Produkt/Produsul/Producto/Produto • Cordless belt sander/Ponceuse à bande/Szlifierka taśmowa/Mașină de șlefuit c u bandă/ Lijadora de banda/Lixadora de rolos • EBS18-Li • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
- Page 29 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU, as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
- Page 30 Authorised signatory and technical file holder/Signataire et responsable de la documentation technique authorisé/ Podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/Semnatar autorizat și deținător al dosarului tehnic/Firmante autorizado y titular del expediente técnico/ signatário autorizado e detentor da ficha técnica Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam,...
- Page 31 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk...
