Erbauer EMT300-QC Instructions Manual

Erbauer EMT300-QC Instructions Manual

Hide thumbs Also See for EMT300-QC:

Advertisement

Table of Contents

EAN:
5059340269955
EMT300-QC
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMT300-QC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer EMT300-QC

Summary of Contents for Erbauer EMT300-QC

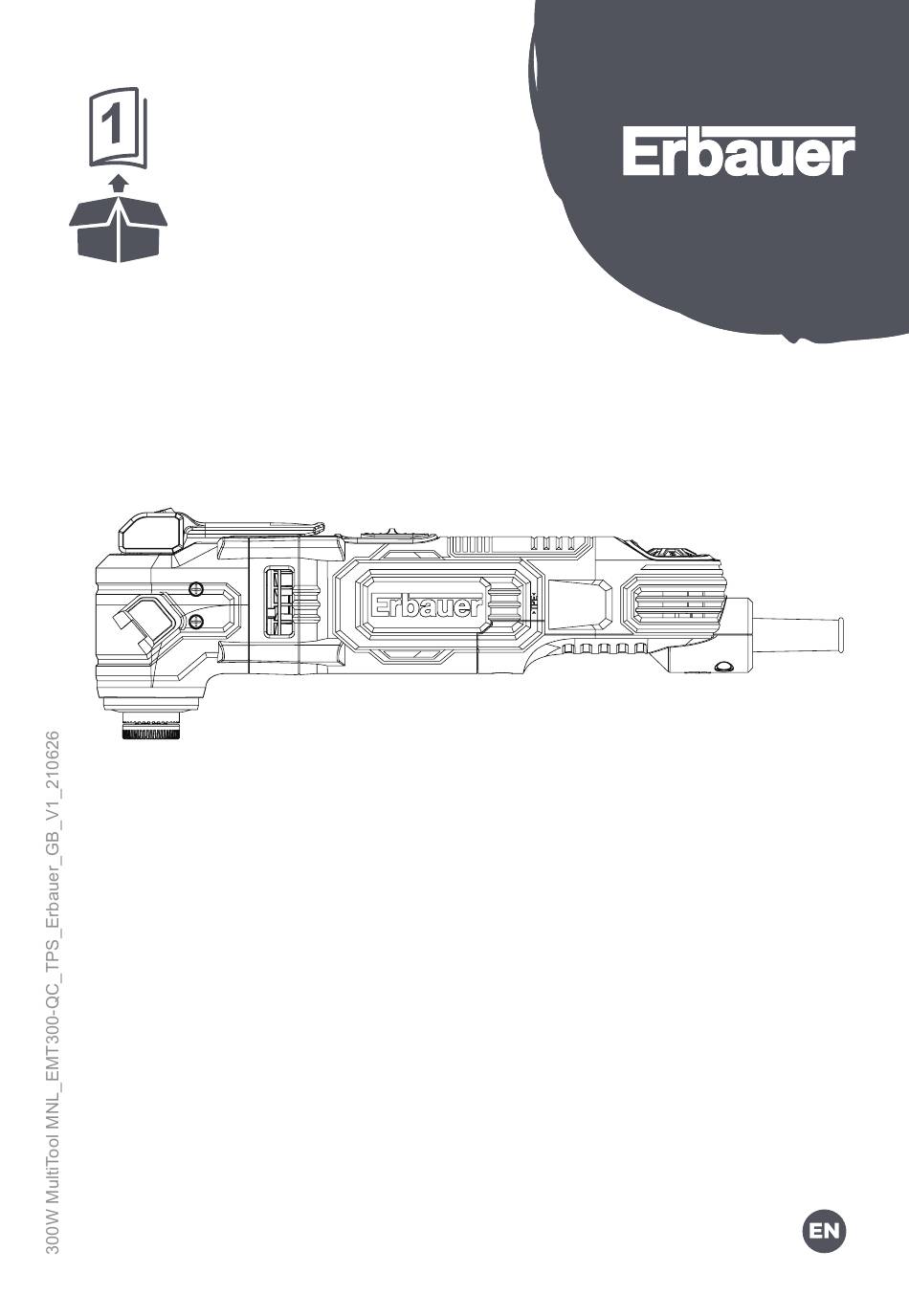

  • Page 1 EAN: 5059340269955 EMT300-QC ORIGINAL INSTRUCTIONS...

  • Page 2: Table Of Contents

    Safety instructions Product description Assembly Safety instructions Care & maintenance Guarantee...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.

  • Page 4: Product Description

    Product description...
  • Page 6 90°...
  • Page 8 Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 9 tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.
  • Page 10 protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  • Page 11 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 12 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SAFETY WARNINGS FOR SANDER a) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
  • Page 13 g) Double check that the accessories and attachments are properly fixed. One minute testing running in no-load condition will be helpful to identify any problems. h) Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. Keep the handles dry to ensure safe control.
  • Page 14 like sand, sandstone and granite. It is also commonly found in many construction materials such as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding.
  • Page 15 For more information please see the HSE website: http://www.hse.gov.uk/construction or http://www.hse.gov.uk/ pubns/cis69.pdf WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
  • Page 16 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
  • Page 17 WARNING! Identify safety measures to protect the operator that are based on an estimation of xposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 18 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). 6. Plan your work schedule to spread any high vibration tool use across a longer period of time.
  • Page 19 Product description Part index The index below refers to Fig. 1 on page 4. 11. HSS segment saw blade (x 1) 1. Flange release lever 2. On/Off switch 12. Scraper (x 1) 13. Sanding base plate (x 1) 3. Hand grip 4.
  • Page 20 EN 62841-1 and EN 62841-2-4. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation EMT300-QC = Model number E = Erbauer MT = Multi tool 300 = Power (Watts)

  • Page 21: Assembly

    Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 22 Multi tool accessories WARNING! Always use accessory according to the intended use! Observe the technical requirements of this product when purchasing and using tool accessories! Tool attachments are available in various shapes and sizes. Below is only overview of the supplied tool attachments. Ask in store for more choices. Tool attachment Material Application...
  • Page 23 Removing grout, Ceramic and stone tile, Diamond blade plastics, epoxy, and backerboard glue joints Separating or flush/ plunge saw cutting, Wood detail Wood, plastic, drywall, also for sawing close blade soft metals to edges, in corners and hard to reach areas This product can also be used with accessories of other brands.
  • Page 24 WARNING! Check that the accessories are correctly attached. Incorrect or insecurely fastened accessories can come loose during operation and cause a hazard. Depending on application needs, the plunge saw blade can also be assembled at ±90º (Fig. D). Never adjust the saw blade pointing backwards towards the handle (Fig.
  • Page 25 Sanding paper Choosing the right sanding paper Sanding paper is available with different grain sizes (grit) and for different material. The grain size is indicated with a number on the reverse of the sanding paper, the higher the number the finer is the grain size. Grain size Class Application...

  • Page 26: Use

    Intended use This product is intended for dry sanding and cutting on wood, plastic as well as plasterboard, especially for sanding small surfaces (e.g. corners or edges) and plunge/ flush cutting. This product can also be used with attachments of other popular brands when they are suitable for the tool holder (incl.
  • Page 27 Automatic LED work light LED work light (8) will automatically illuminate the working zone when you press the On/Off switch (2). WARNING! Do not look directly into LED light! Speed dial (Fig. J) Limit the maximum speed using the speed dial (4) depending on material and application.
  • Page 28 Cutting (Fig. K, L and M) WARNING! Only perform plunge cutting into soft materials such as plasterboard or soft wood! Never attempt to conduct any plunge cutting into hard materials such as metal! Use only the appropriate saw blade for cutting! If you are unsure when cutting, consult with an experienced person –...
  • Page 29 After use • Switch the product off, wait for complete stop, disconnect it from the power supply and let it cool down. • Detach the tool attachments from the product. • Check, clean and store the product as described below.

  • Page 30: Care & Maintenance

    Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1.
  • Page 31 Power cord If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below.
  • Page 32 Transportation WARNING! Always carry the product by its hand grip. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. 2. Always carry the product by its hand grip. 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.

  • Page 33: Guarantee

    Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product multi tool) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 34 If the product is defective, we will, within a reasonable time, repair or replace it. Rights under this guarantee are enforceable in the country in which you purchased this product. Guarantee related queries should be addressed to the store you purchased this product from.
  • Page 35 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk...
