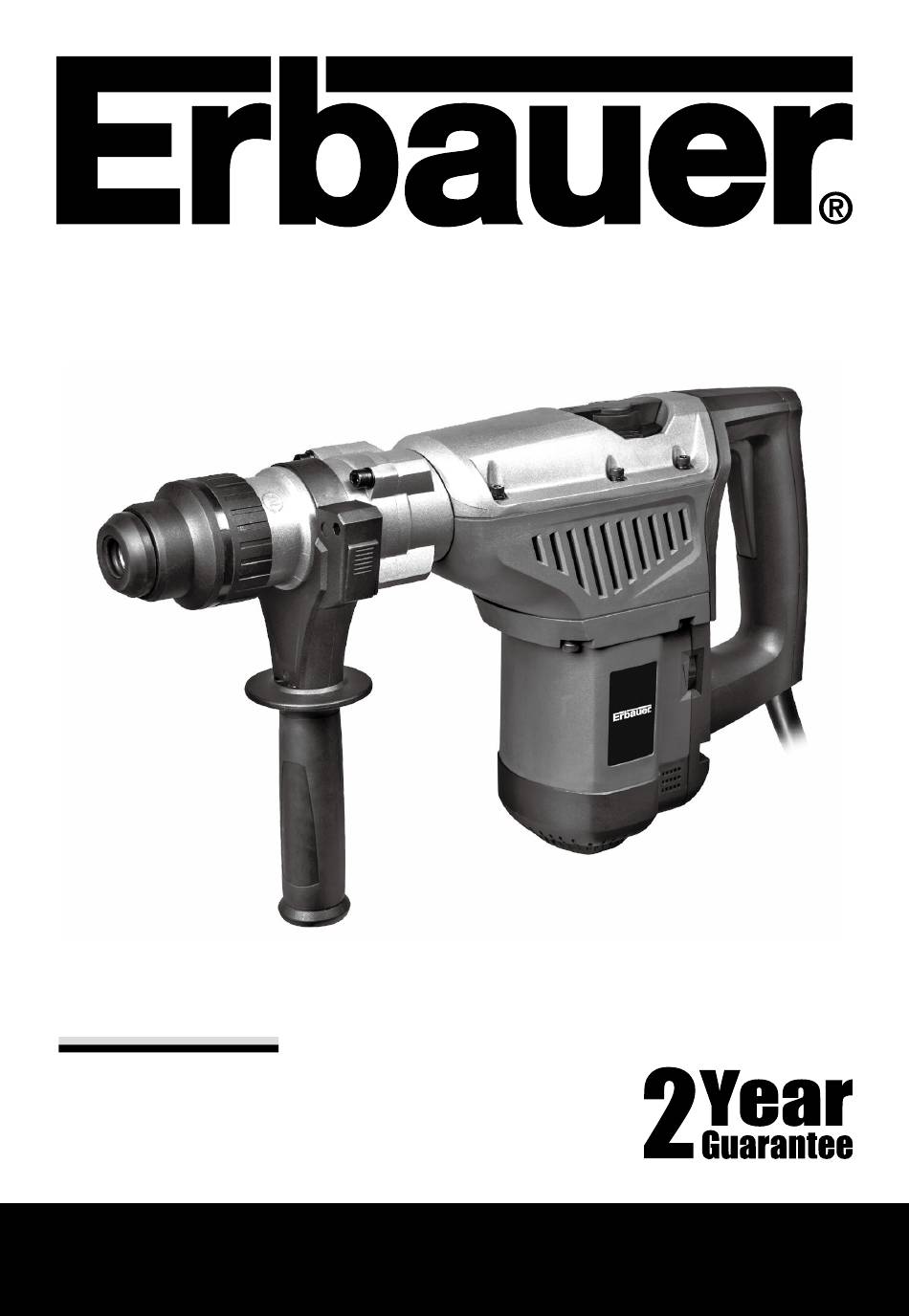

- Page 1 ERB573SDS ERA574SDS 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
- Page 2 Original Instructions (Version 1.0)
- Page 3 DO NOT stretch to hold the drill. Do not drill above shoulder height or below Knee height, as the drill cannot be securely held. Never drill holes that are above the declared maximum size in the manual. 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
- Page 4 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 5: General Power Tool Safety Warnings
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS... - Page 6 clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Page 7 Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
- Page 8 Further Advice can be found at www.hse.gov.uk ERB573SDS Vibration total values (triax cover sum) determined according to EN60745: Vibration emission value a =12.89m/s²...
- Page 9 When this happens, the bit will stop turning. As soon as the torque limiter actuates, switch off the tool immediately and remove the drill bit from the hole completely. This will help prevent premature wear of the tool. 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
- Page 10 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Wear safety gloves Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 LOCKING SLEEVE HAMMER OR CHISEL ACTION SELECTOR SWITCH SWITCH LOCK BUTTON ON / OFF SWITCH VARIABLE SPEED CONTROL AUXILIARY HANDLE CHISELS (POINT AND FLAT) DEPTH GAUGE DRILL BITS 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
-
Page 12: Technical Data
TECHNICAL DATA ERB573SDS ERA574SDS Rated voltage 230V-240V~ 50Hz 110V~ 50Hz Rated power 1200W Rated no load speed 100-580/min Impact frequency 650-2600bpm Rated impact energy Tool holder SDS-MAX Drilling capacity max Masonry 40mm Protection class Weight 7.8kg NOISE INFORMATION ERB573SDS Hammer drilling into concrete A weighted sound pressure: : 90.50dB(A) - Page 13 =3.0dB(A) A weighted sound power: : 101.98dB(A) =3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Auxiliary handle Depth gauge SDS MAX plus drill bits(16*320mm / 22*320mm) 2pcs Chisels (point and flat) 2pcs 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
-
Page 14: Adjusting The Auxiliary Handle
OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use Loosen The machine is intended for hammer drilling in Tighten concrete, brick and stone as well as for chiseling work. 1. ADJUSTING THE AUXILIARY HANDLE (see Fig. - Page 15 Note: The depth gauge can not be used at the position where the depth gauge strikes against the tool body. And the depth gauge must be installed correctly (See Fig. 7-1, 7-2). Fig. 6-2 Fig. 7-1 Fig. 7-1 Fig. 7-2 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
-
Page 16: Working Hints For Your Tool
WORKING HINTS FOR YOUR TOOL Reduce the pressure on the drill bit when it is about to break through. This will prevent the drill from jamming. • When drilling a large hole, first drill a pilot hole using a smaller drill bit. •... - Page 17 13 Amp fuse approved to BS 1363 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip firmly clamped 6kg SDS MAX HAMMER ERB573SDS/ERA574SDS...
-
Page 18: Declaration Of Conformity
Standards conform to: EN 60745-1 EN 60745-2-6 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
