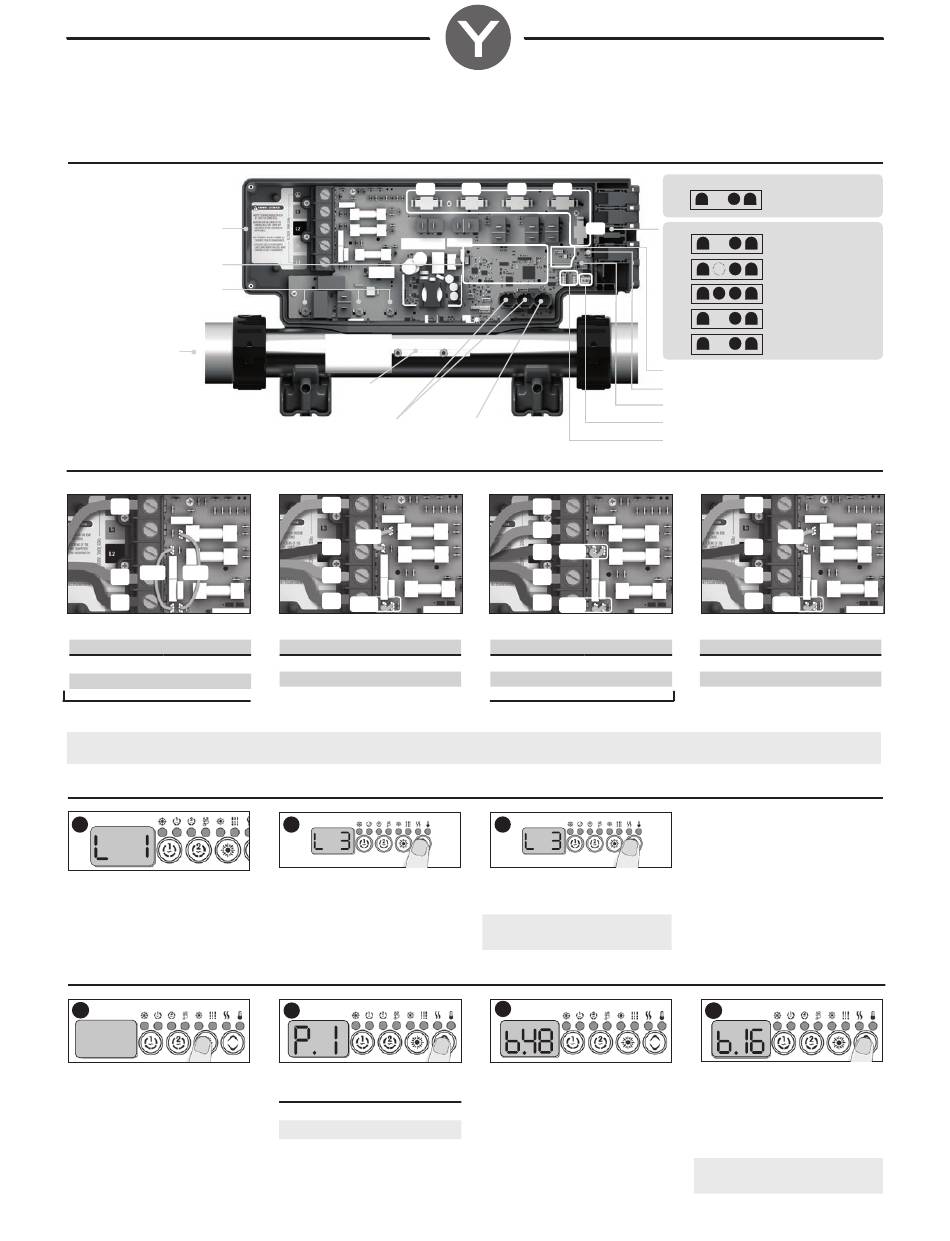

1- Connect all outputs & keypads
Main power
entry connection
Optional board accessories
Heater connections
Heater
CO - Communication links (2 ports) in.touch, in.stik,
Aux keypad in.k112, Swim Spa com. cable, etc.
2- Connect the main power
Determine jumper positions for number of phases
G
PJ1
PJ2
N
L1
1 phase connection
Phase jumpers
Position
PJ1
P37-P49
PJ2
P50-P26
Correct wiring of the electrical service box, RCD, and pack terminal block is essential. Power must be off during this step.
WARNING! All connections must be made by a qualified electrician in accordance with the national electrical code and any state, provincial or local electrical code in effect
at the time of the installation. This product must always be connected to circuit protected by a residual-current device (RCD).
3- Select spa configuration (if prompt on startup)
1
At first startup the keypad display
will show Lx or LLx, where « x »
representing the config. number. Some
spa packs come with a pre-selected
config. and you may skip this step if
your system automatically starts up
.
1
4- Select breaker current
(Specify the current rating and the number of phases of the RCD used to ensure safe and efficient current mangement (and no RCD trippings).
2 1
98
Press and hold the Program key for
20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series,
select Settings menu, go into Electri-
cal config and choose Input current.
Quick Start Card
in.ye-3-ce
& in.ye-5-ce
™
A1
Bonding lugs
C1 - Main keypad
G
PJ1
L2
N
L1
PJ2
2 phase connection
Phase jumpers
Position
PJ1
P37-P26
PJ2
P50-P49
input voltage: 230 V, 50 Hz (line-to-Neutral)
2
Use the Up/Down key to choose the
new low level configuration number.
2
Current setting for each phase setting
# of phases
Current setting range
1
10 to 48 A
2
10 to 20 A
3
10 to 16 A
Choose the number of phases
supplying your spa (1-3). Use the
Up/Down key to select the desired
value. Then press the Program key to
confirm the selection.
European version
™
A2
A3
A4
A5
connector
G
L3
L2
PJ1
N
L1
PJ2
3 phase connection
Phase jumpers
Position
PJ1
P37-P38
PJ2
P50-P49
3
Press the Program
key to confirm the
2
selection.
For more information, see our
website: www.geckoalliance.com
3
The values displayed by the system
correspond to the maximum
amperage capacity of the RCD.
H
L
C
G
Optional floating
connector
A0
(Part #9920-401346)
H
L
C
G
AMP ports (A0
A1
to A5) for pumps
& accessories.
A2
Functions varie per
configuration
A3
(see next page).
A4 Optional connector
A4
A5
Optional board COM (RS485)
P59 A.PORT (accessories)
P62 K.PORT (keypad)
P65 Light output
P63 and P64 in.lu.me outputs
G
PJ1
L2
L3
L1
PJ2
3 phase Delta connection
Phase jumpers
Position
PJ1
P37-P26
PJ2
P50-P49
Only for countries where Line-to-Line
input voltage: 230V, 50Hz.
Note: To re-enter the low level
1
selection menu, hold the Pump 1
key for 30 seconds.
Note: For the Color keypad series,
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
Note: If the keypad does not have a
2
Program or Filter key, use the Light
key instead.
3 4
Use the Up/Down key to select the
desired value. Then press the Program
key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light
key instead.
For more information, see our
website: www.geckoalliance.com
