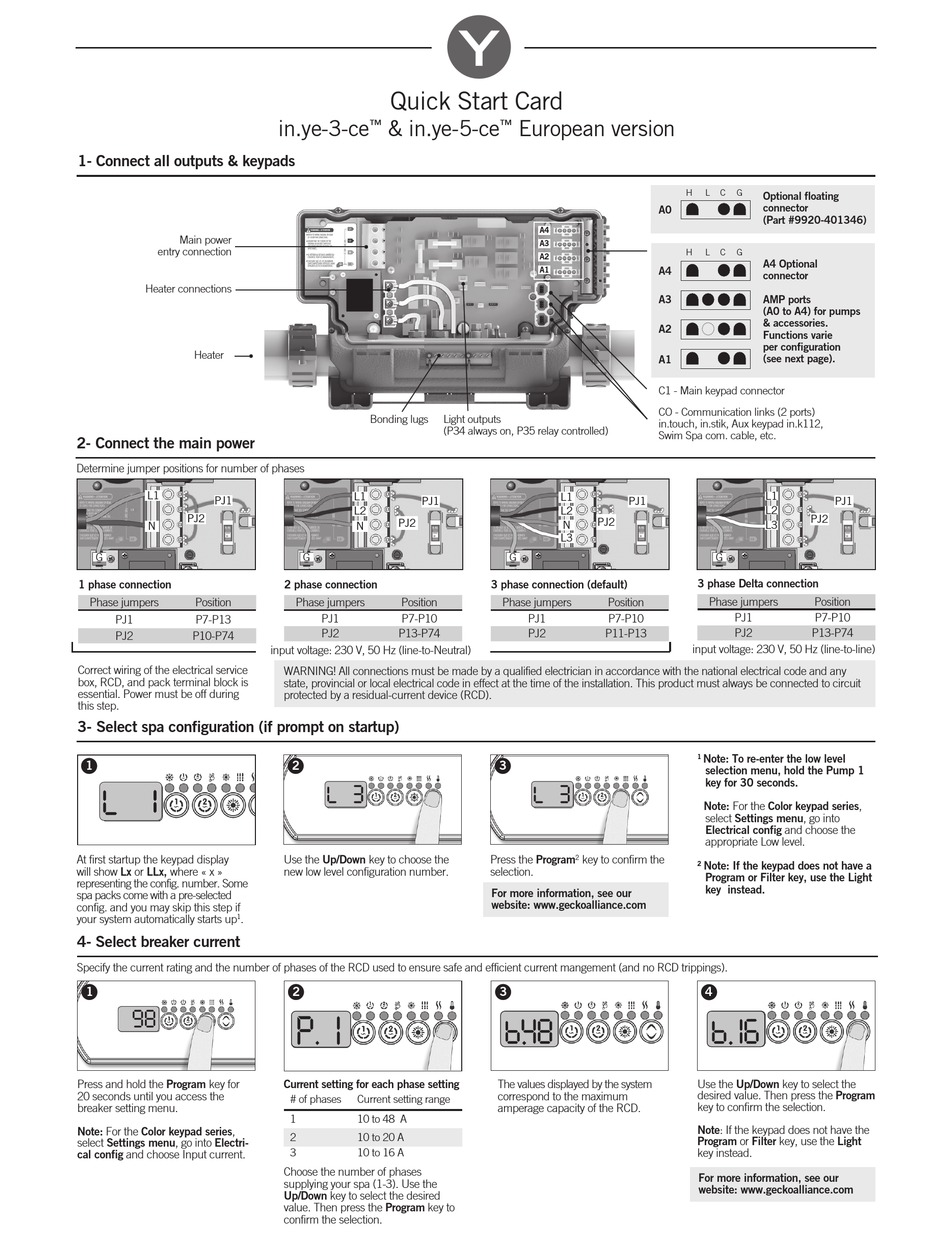

Gecko in.ye-3-ce Quick Start Card

1- Connect all outputs & keypads
Main power
entry connection
Heater connections
Heater
2- Connect the main power
Determine jumper positions for number of phases
L1
PJ1
PJ2
N
G
1 phase connection
Phase jumpers Position
PJ1 P7-P13
PJ2 P10-P74
Correct wiring of the electrical service
box, RCD, and pack terminal block is
essential. Power must be off during
this step.
3- Select spa configuration (if prompt on startup)
1
At first startup the keypad display
will show Lx or LLx, where « x »
representing the config. number. Some
spa packs come with a pre-selected
config. and you may skip this step if
your system automatically starts up 1 .
4- Select breaker current
Specify the current rating and the number of phases of the RCD used to ensure safe and efficient current mangement (and no RCD trippings).
1
98
Press and hold the Program key for
20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series,
select Settings menu, go into Electri-
cal config and choose Input current.
Quick Start Card
in.ye-3-ce & in.ye-5-ce
™
Bonding lugs Light outputs
(P34 always on, P35 relay controlled)
L1
PJ1
L2
PJ2
N
G
2 phase connection
Phase jumpers Position
PJ1 P7-P10
PJ2 P13-P74
input voltage: 230 V, 50 Hz (line-to-Neutral)
WARNING! All connections must be made by a qualified electrician in accordance with the national electrical code and any
state, provincial or local electrical code in effect at the time of the installation. This product must always be connected to circuit
protected by a residual-current device (RCD).
2
Use the Up/Down key to choose the
new low level configuration number.
2
Current setting for each phase setting
# of phases Current setting range
1 10 to 48 A
2 10 to 20 A
3 10 to 16 A
Choose the number of phases
supplying your spa (1-3). Use the
Up/Down key to select the desired
value. Then press the Program key to
confirm the selection.
European version
™
A0
A4
A3
A2
A4
A1
A3
A2
A1
C1 - Main keypad connector
CO - Communication links (2 ports)
in.touch, in.stik, Aux keypad in.k112,
Swim Spa com. cable, etc.
L1
PJ1
L2
PJ2
N
L3
G
3 phase connection (default)
Phase jumpers Position
PJ1 P7-P10
PJ2 P11-P13
3
Press the Program key to confirm the
2
selection.
For more information, see our
website: www.geckoalliance.com
3
The values displayed by the system
correspond to the maximum
amperage capacity of the RCD.
H L C G
Optional floating
connector
(Part #9920-401346)
H L C G
A4 Optional
connector
AMP ports
(A0 to A4) for pumps
& accessories.
Functions varie
per configuration
(see next page).
L1
PJ1
L2
PJ2
L3
G
3 phase Delta connection
Phase jumpers Position
PJ1 P7-P10
PJ2 P13-P74
input voltage: 230 V, 50 Hz (line-to-line)
Note: To re-enter the low level
1
selection menu, hold the Pump 1
key for 30 seconds.
Note: For the Color keypad series,
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
Note: If the keypad does not have a
2
Program or Filter key, use the Light
key instead.
4
Use the Up/Down key to select the
desired value. Then press the Program
key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light
key instead.
For more information, see our
website: www.geckoalliance.com
