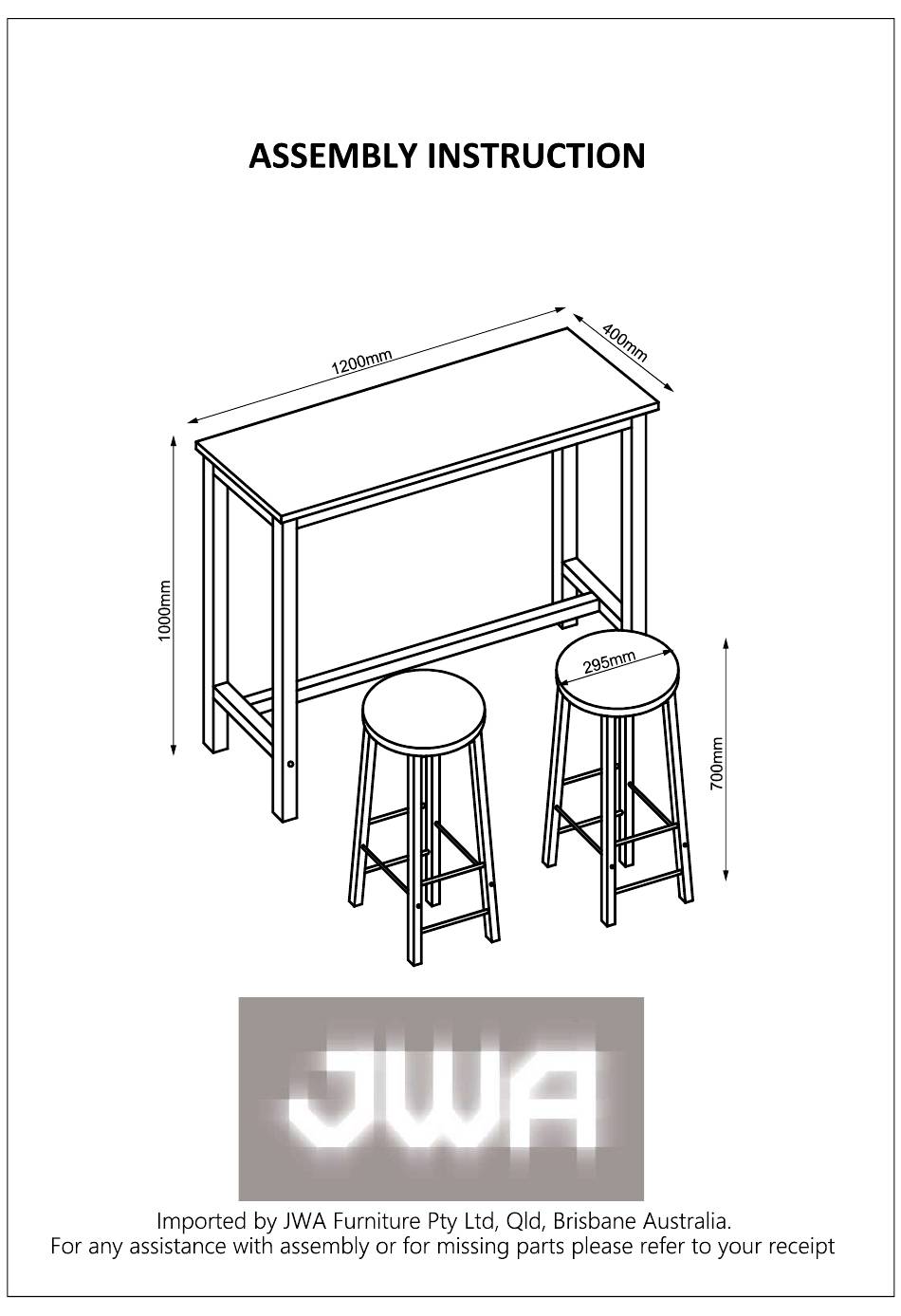

- Page 1 BARNABAS 3 Piece Bar Setting BARNABAS 79895...
- Page 3 M6X60mm M8x40x9mm M6X45mm M6X35mm M6X30mm 16pcs 4pcs 8pcs 8pcs 16pcs M6X12mm 40pcs 8pcs 8pcs Table top panel Table main frame Table main frame connecting tube Table top panel supporting tube Stool top panel Stool main frame Stool connecting round tube Stool connecting tube...
- Page 4 STER 1: 1.Insert part B into frame 3 2.Attachtable top panel supporting tube 5 to main frame 3 with part A. STER 2: 1.Attach table main frame connecting tube 4 to main frame 3 with part...
- Page 5 STER 3: 1.Attach assembled main frame to table top panel 1 with part A. STER 4: 1. Attach part G to the inside of table main frame with part F.
- Page 6 STER 5: 1.Attach stool connecting tube 8 to stool main frame 6 with part C. STER 6: 1. Attach stool connecting round tube 7 to stool main frame 6 with part D.
- Page 7 STER 7: 1. Attach part G to the inside of assembled main frame with part F. STER 8: 1. Attach part H to stool main frame 6 with part F.
- Page 8 STER 9: 1. Attach part H to stool connecting tube 8,then to stool top panel 2 with four PCS part E. 2.Attach stool main frame 6 to stool top panel 2 with four PCS part E. STER 10: Assemby complete!
