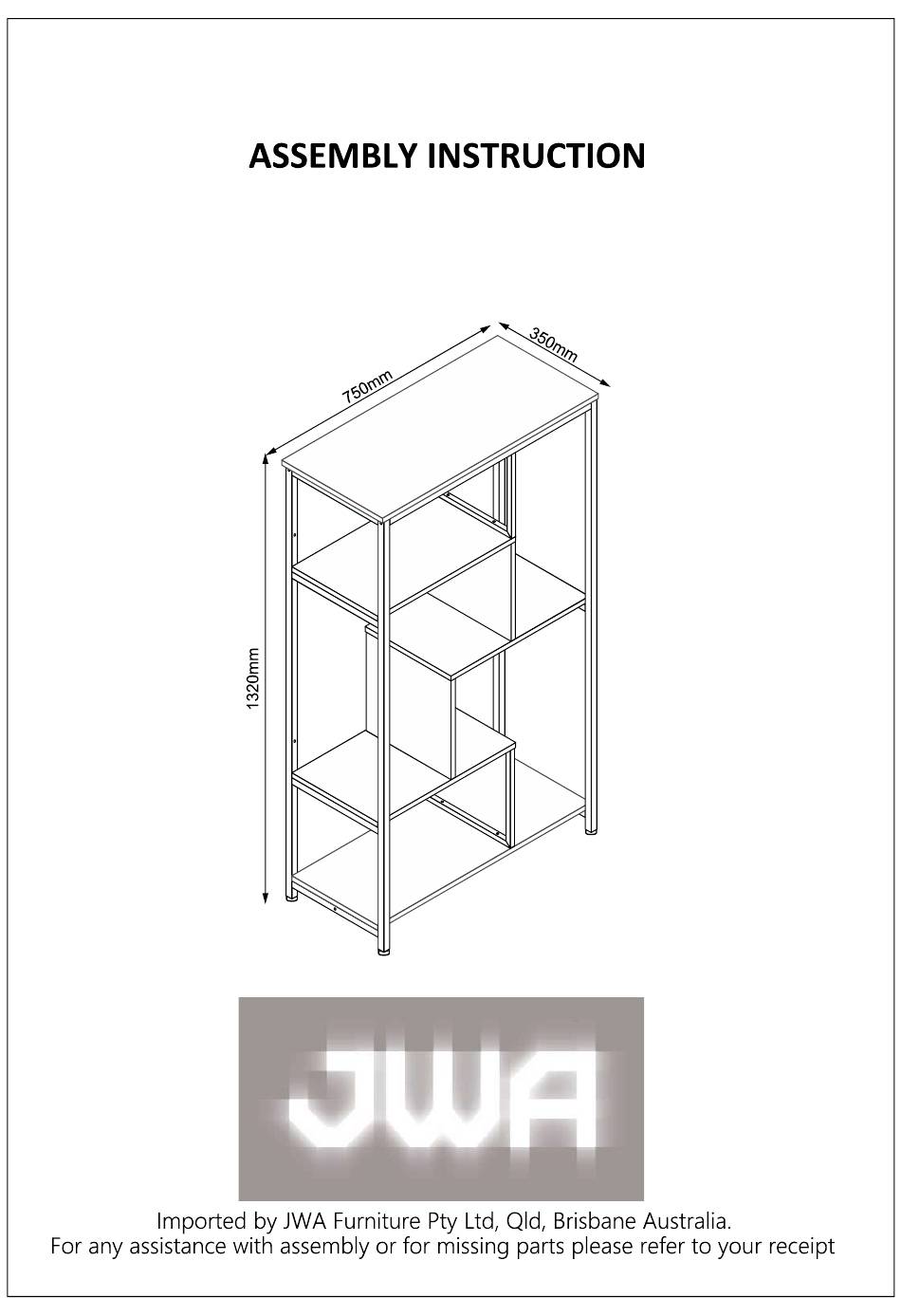

- Page 1 RANDOLPH 4 Tier Bookcase RANDOLPH 79897...
- Page 3 M6X40mm M6X25mm M6X20mm M6X15mm 6pcs 20pcs 8pcs 4pcs 4pcs M4X25mm ST4X35mm ST3.5X14mm ST4X25mm 8pcs 4pcs 2pcs M8x20x10mm 2pcs 2pcs 4pcs Top panel Left frame Right frame Upper panel Middle panel Connecting tube Upper metal frame Lower panel Lower metal frame Bottom panel Cross bar Vertical panel...
- Page 4 STER 1: 1 Insert part M into frame 7 and 8. STER 2: 1.Attach connection frame 9 to frame 7 and 8 with part A.
- Page 5 STER 3: 1.Attach panel 5 to frame 7, frame 8 and connection tube 9 with part B. STER 4: 1. Attach frame 11 to panel 5 with part C .
- Page 6 STER 5: 1.Attach panel 4 to frame 7 and 11 with part B and C. STER 6: 1. Attach panel 6 to panel 4 with part G.
- Page 7 STER 7: 1. Attach panel 3 to frame 8 with part B. 2. Attach panel 3 to panel 6 with part G. STER 8: 1. Attach panel 6 to panel 3 with part G.
- Page 8 STER 9: 1. Attach panel 2 to panel 6 with part G. 2. Attach panel 2 to frame 7 with part B. STER 10: 1.Attach frame 10 to panel 2 with part C .
- Page 9 STER 11: 1.Attach panel 1 to frame 10 with part C. 2. Attach panel 1 to frame 7/ 8/9 with part B. STER 12: 1 . Attach 2 PCS 12 together with Parts F and...
- Page 10 STER 13: 1. Attach assembled 12 to frame 7 and 8 with parts D and E. STER 14: 1.Attach L to panel 2 with part H. 2. Attach I to the wall with part I.
- Page 11 STER 15: Assemby complete!
