Summary of Contents for Balboa Joyonway PB562-000

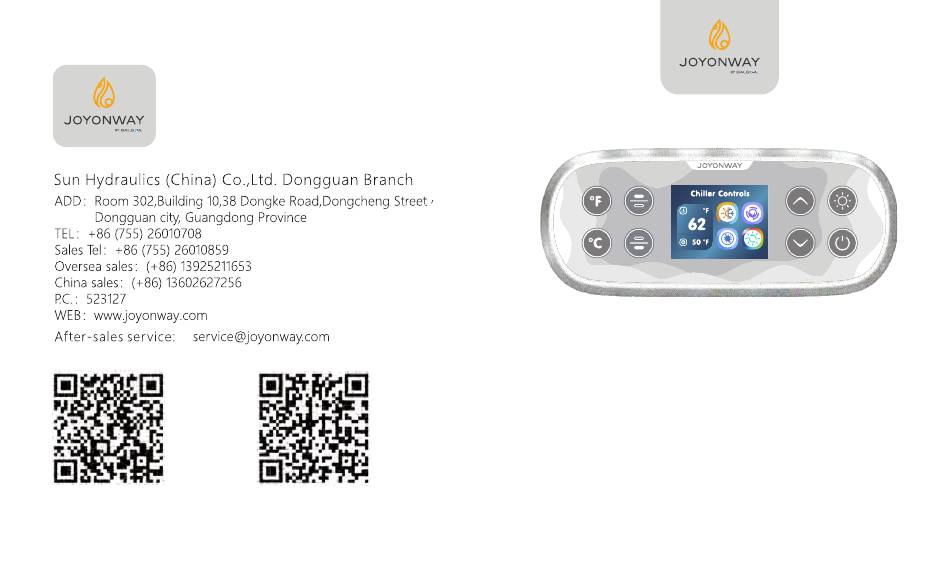

- Page 1 PB562-000 Operation instruction Manual Android Download App Store Download Depending on the different system configuration, all the content mentioned V1.2 English in this manual may not appear on your system.
- Page 2 Contents W arning 01-02 Control Panel Specifications and Installation I ns t ruc ti ons 03-08 Button D escr i p ti on 0 - 10 Main interface description 11-11 Set the circulating pump mode 12-12 warning information 13-15...
- Page 3 Warning Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following EMC： two conditions: (1) this device may not cause harmful interference, and (2) this device These devices can be connected only to a supply with system must accept any interference received, including interference that may cause undesired impedance no more than 0.099 ohm for Single-phase input or 0.001 operation.

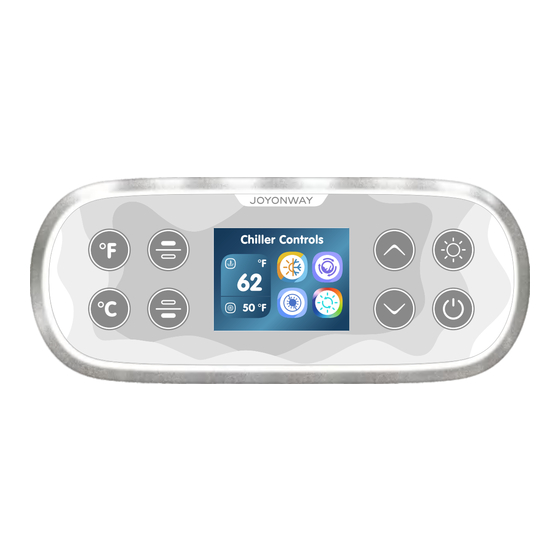

- Page 4 Control Panel Installation Instructions Control Panel Installation Instructions 2.4 inch TFT color display， 8 capacitive touch buttons [ 7.40" ] 188.00 mm Front view [ 1.18" ] 30.00 mm [ 6.61" ] Left view 168.00 mm PB562-000 Control Panel Rendering PB562-000控制面板效果图...
- Page 5 Control Panel Installation Instructions Control Panel Installation Instructions Control Panel Installation Instructions Make a hole in the appropriate position of the bathtub according to the size of the As shown in the figure, remove the adhesive protective sticker, and then install the control panel, and clean the area around the opening with tools,especially burrs, control panel at the cleaned opening.
- Page 6 Control Panel Installation Instructions Control Panel Installation Instructions Control Panel Installation Instructions HEAT PUMP POWER CORD CONTROL HOST P68B123-000 RS485 CABLE CONNECTOR HEAT PUMP PANEL CONNECTOR Y001 PANEL CONNECTOR EXTENSION CABLE CONNECTION DIAGRAM OF HEAT PUMP, CONTROL HOST, AND CONTROL PANEL. CONTROL PANEL...
- Page 7 Button Description Button Description Warning Reverse screen up Used to reverse the screen upwards. 1. Please strictly follow the SPA wiring diagram to connect the power supply. 2. Please do not power on the SPA until the water level reaches the water level line inside the tub.
- Page 8 Introduction to the main interface Set the circulating pump mode Set the circulating pump mode (only for installers): Main interface Chiller Auto CPump mode Within 2 minutes after powering on, when the main interface is displayed, touch the " " button 5s to enter the setting menu, Details are as follows touch the "...
- Page 9 Panel Warning Message Panel Warning Message When the control system experiences some states that require user attent- Heat Pump ER16: Outer coil pipe temp. Error Cause: ion, the control panel will display a warning message on the control panel. Outer coil pipe temp. The sensor plug is in poor contact or off, or the sensor is Error The following is the screen status when this information are displayed,...
- Page 10 Panel Warning Message Heat Pump ER29: Return gas temp. Error Cause: Return gas temp. Error The sensor plug is in poor contact or off, or the sensor is damaged Action: Check and replace the suction gas sensor(T5) Heat Pump ER32: Heating outlet water high temperature protection Cause: Heating outlet water...
