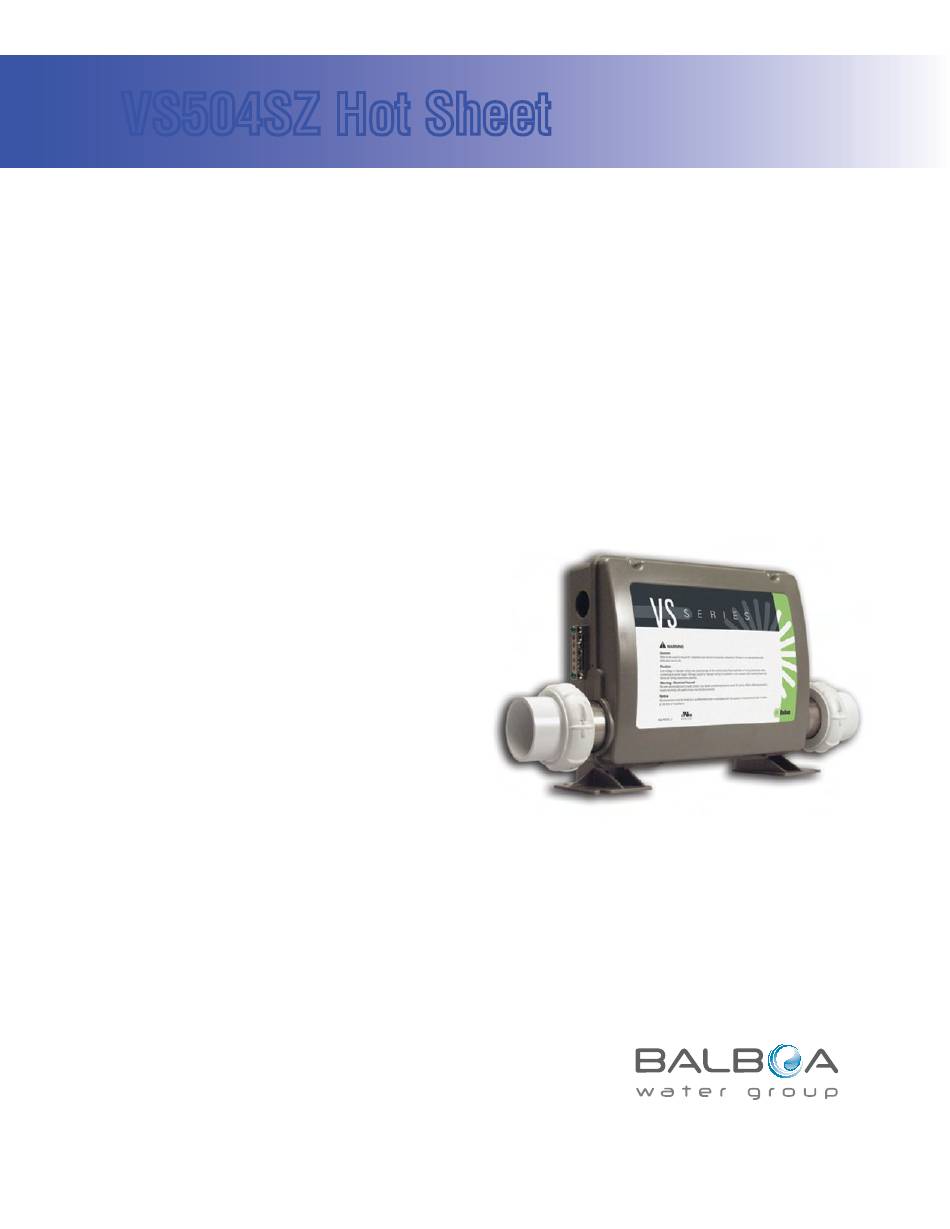

VS504SZ Hot Sheet
Balboa Instruments
System PN 55370
System Model # VSP-VS504SZ-DCAJ
Software Version # 39
EPN # 2684
Base PCBA - PN 54638
PCB VS500Z - PN 22972 Rev C or D
Base Panels
VL701S (Serial Standard) – PN 52298-01
Template used: 40600_N.pdf 11/12/2007
55370_97_A.pdf 01/15/2008
Page 1
55370_97_A
