Lifetime 60127 Assembly Instructions Manual

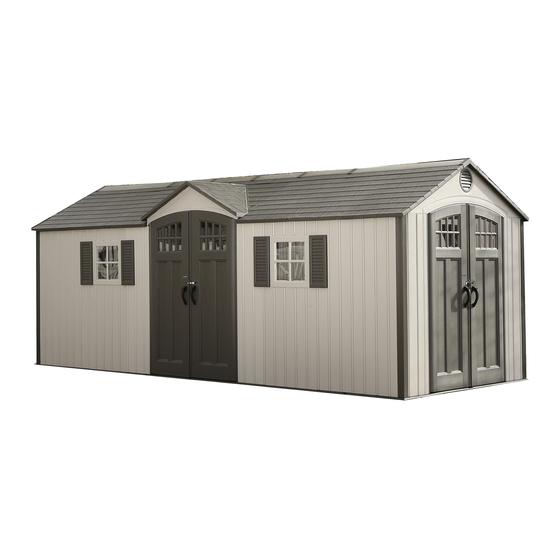

20' x 8' outdoor storage shed
Hide thumbs

Advertisement

Quick Links

Download this manual

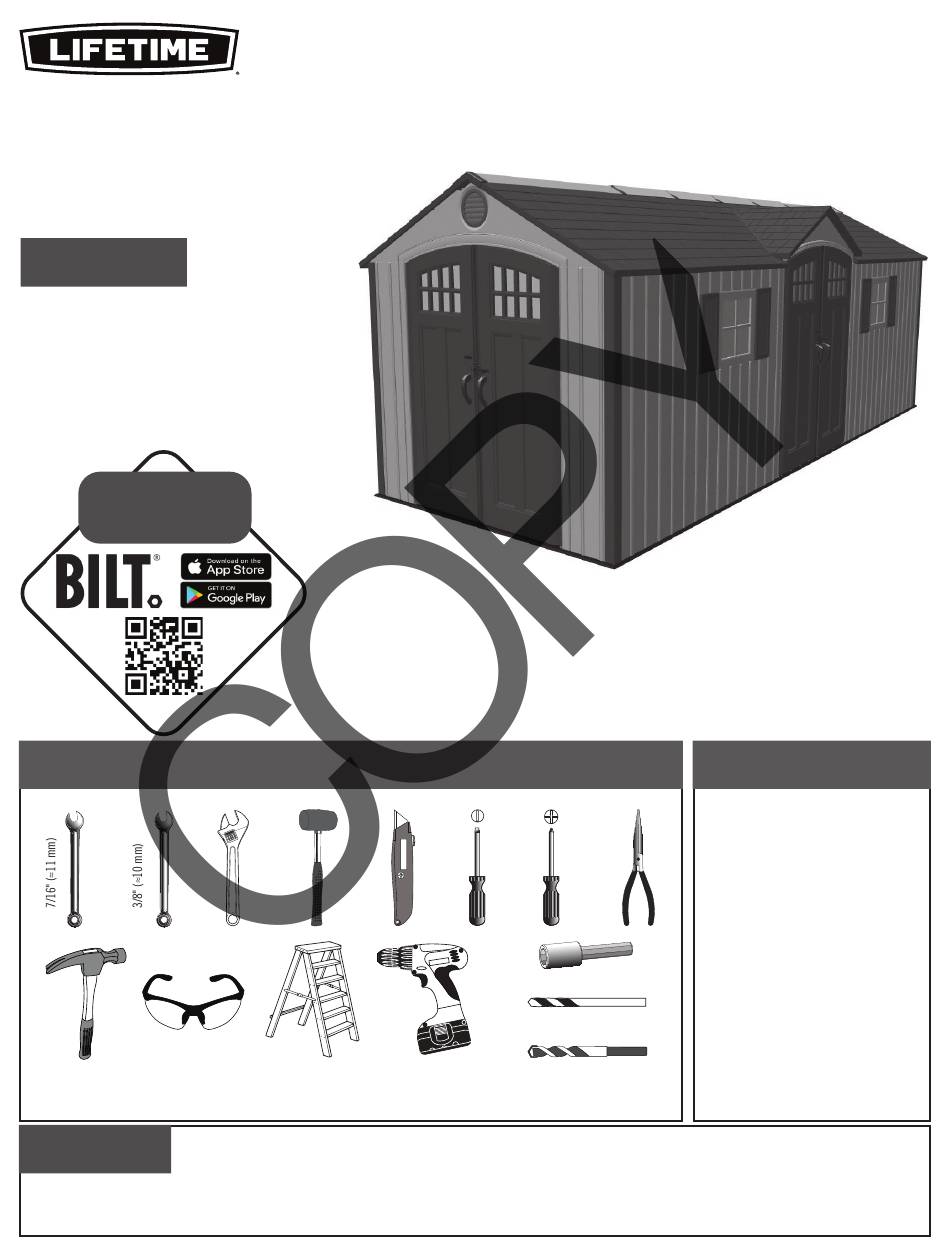

20' x 8'
OUTDOOR STORAGE SHED
MODEL 60127
BEFORE ASSEMBLY:
• Assemble on a level platform
• At least 3 people recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
TOOLS REQUIRED
QUESTIONS?
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
OR SEARCH
1213342
CONTACT LIFETIME
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
5/16" (≈8 mm)
5/16" (≈8 mm) Wood Drill Bit
5/16" (≈8 mm) Masonry Drill Bit
®
CUSTOMER SERVICE:
MODEL# AND PRODUCT ID
Model Number: 60127
Product ID:
TABLE OF CONTENTS
Icon Legend...............................4
Warnings & Notices.....................5
Platform Construction.................6
Truss Assembly.........................11
Gable Assembly........................18
Door Assembly..........................23
Domed Skylight Assembly..........34
Floor Assembly.........................38
Wall Assembly...........................43
Shelving Installation.................50
Parts Identifi er..........................51
Roof Assembly..........................58
Window Installation...................80
Shutter Installation...................82
Accessory Installation................85
Snowload Kit Installation...........87
Door Alignment........................91
Shed Anchoring........................93
Cleaning & Care........................99
Registration...........................100
Warranty..............................101
(both are needed when contacting us)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 60127 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 60127

Summary of Contents for Lifetime 60127

  • Page 1 (click on “LIVE CHAT” tab) MODEL# AND PRODUCT ID Call: 1-800-225-3865 (both are needed when contacting us) For Customer Service in mainland Europe: Model Number: 60127 7:00 am–5:00 pm (Monday–Friday) MST E-mail: cs@lifetimeproducts.eu Product ID: and 9:00 am–1:00 pm Saturday MST...

  • Page 2: Instructions D'assemblage

    Enregistrement......100 Garantie........102 QUESTIONS ? ® CONTACTER NOS SERVICES À LA CLIENTÈLE LIFETIME Chat en direct: www.lifetime.com/customerservice N° DE MODÈLE ET RÉFÉRENCE DU PRODUIT (cliquer sur la languette « LIVE CHAT ») (il faut avoir les deux en entrant en contact avec nous) Composer le 1-800-225-3865 Pour les services à...

  • Page 3: Instrucciones De Ensamblaje

    Broca de albañilería de 8 mm Registro........100 Garantía........103 ¿PREGUNTAS? ® PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME MODEL E ID DEL PRODUCTO Chat en vivo: www.lifetime.com/customerservice (se necesitan los dos al contactarnos) Número de modelo: 60127 Marcar : 1-800-225-3865 (cliquear en la lengüeta «LIVE CHAT»)
  • Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / SIGNIFICADO DE LOS ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. •...
  • Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
  • Page 6 PLATFORM CONSTRUCTION / CONSTRUCTION DE LA PLATE-FORME / CONSTRUCCIÓN DE LA PLATAFORMA • You must provide a platform on which to assemble your shed. Proper building permit documentation may be required in your neighborhood. Consult all local building codes prior to assembling the shed. Before beginning assembly, you must pour or construct a platform.
  • Page 7 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) CONCRETE REQUIRED / BÉTON REQUIS CONCRETO REQUERIDO 2 yd (1,53 m CONCRETE PLATFORM / PLATE-FORME EN BÉTON PLATAFORMA DE CONCRETO • The concrete should be approximately 4" (10,2 cm) thick. The actual dimensions of the shed, at its widest and longest points, are 240"...
  • Page 8 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS MADERA REQUERIDA WOOD PLATFORM / PLATE-FORME EN BOIS PLATAFORMA DE MADERA 4 in/po (10,2 cm)
  • Page 9 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS, PARTS, AND HARDWARE REQUIRED / OUTILS, PIÈCES, ET QUINCAILLERIE REQUIS INSTRUMENTAL, PIEZAS, Y HERRAJE REQUERIDOS 2 in/po x 4 in/po x 238 1/4 in/po (5,1 cm x 10,2 cm x 6,05 m) (x2) 2 in/po x 4 in/po x 90 1/2 in/po (5,1 cm x 10,2 cm x 2,30 m) (x16) 16d 3 1/2 in/po (16d x 8,89 cm) (x64) 1.2.1...
  • Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS, PARTS, AND HARDWARE REQUIRED / OUTILS, PIÈCES, ET QUINCAILLERIE REQUIS INSTRUMENTAL, PIEZAS, Y HERRAJE REQUERIDOS 46 1/4 in/po x 93 1/2 in/po x 3/4 in/po 48 in/po x 93 1/2 in/po x 3/4 in/po (118 cm x 2,38 m x 19,1 mm) (x1) (1,22 m x 2,38 m x 19,1 mm) (x4) 8d 2 in/po (8d 5,08 cm) (x96)
  • Page 11 TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLAJE DE LAS CERCHAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje CXK (x2) DTK (x30) ADY (x27) ADJ (14) ADK (x56) DTJ (x1) AHT (x1) 11 9/16 in/po (≈29,4 cm) ADH (x7)
  • Page 12 • En cas d’avoir des problèmes avec cette section, suivre le code en bas pour voir un vidéo sur l’assemblage dans cette section. • En caso de tener problemas con esta sección, seguir el código debajo para ver un video sobre el ensamble en esta section. http://go.lifetime.com/ 20’ x 8’ Outdoor Storage Shed Sec2 SIDE TRUSSES (x2) / FERMES LATÉRLES (x2)
  • Page 13 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADY (x8) ADK (x8) 7/16 in/po (x2) (≈11 mm) (x2) 11 9/16 in/po (≈29,4 cm) ADH (x2) ADJ (x4) ADY (x2)
  • Page 14 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADJ (x8) 7/16 in/po (x2) (≈11 mm) (x2) DTK (x16) 3/8 in/po (x2) (≈10 mm) (x2) ADY (x16) 11 9/16 in/po (≈29,4 cm) ADK (x32) ADH (x4)
  • Page 15 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) DTK (x4) ADK (x6) ADY (x2) CENTER TRUSS (x1) / FERME CENTRALE (x1) ARMAZÓN CENTRAL (x1) •...
  • Page 16 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (x2) (≈10 mm) (x2) DTK (x2) ADK (x1) DTJ (x1) CXK (x2) 2.11 • Attach the Vertical Truss Brace (DSN) to the Truss. Only fi nger tighten this Nut (ADK) for now. •...
  • Page 17 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (x2) (≈11 mm) (x2) ADJ (x2) 3/8 in/po (x2) AHT (x1) (≈10 mm) (x2) 11 9/16 in/po (≈29,4 cm) ADH (x1) ADK (x1) ADY (x1)
  • Page 18 GABLE ASSEMBLY / ASSEMBLAGE DES PIGNONS / ENSAMBLAJE DE LAS FACHADAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje EYR (x2) ADZ (x6) ENH (x2) AIQ (x2) EYQ (x2) ADK (x2) AEE (x14) CXK (x2) ADV (x10)
  • Page 19 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • Align the holes in the Left (AGH) and Right (AGI) Side Gable Halves. • Aligner les trous dans les pignons latéraux gauche (AGH) et droite (AGI). •...
  • Page 20 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS AEE (x5) ADW (x5) AHS (x2) ADV (x4) • Insert an End Cap (AHS) into each end of the Header •...
  • Page 21 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADW (x5) ADZ (x2) AEE (x7) AHS (x2) CXK (x2) EYQ (x2) • Secure with the hardware included. Do not overtighten. •...
  • Page 22 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADK (x2) ADV (x6) EYR (x2) AEE (x2) 3.11 • Align the holes in the Header with those in the Entry Gable. •...
  • Page 23 LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLE DE LA PUERTA IZQUIERDA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje ADW (x2) BYZ (x4) ADJ (x4) AEE (x6) AEB (x4) ACH (x4) BYS (x2)
  • Page 24 (BDJ). sección. http://go.lifetime.com/ldslidelatch • Door Channels (BLH) are specifi cally designed to bow. This ensures a tight fi t when they are closed and latched, making your shed more secure. These channels are formed with a slight bend to the adjoining door edge—like parentheses facing each other: ( ). When the door handle is gently closed and latched, there should be a slight pressure sealing the doors and eliminating any gaps.
  • Page 25 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS AHM (x2) BYR (x1) BYS (x1) • Set the Deadbolts (AHM) down into the recesses at the top and bottom of the Door. Then, slide the Door End Channel (BLH) over the edge of the Door and the bottom of the Deadbolts as shown.
  • Page 26 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po BYZ (x2) (≈11 mm) ACH (x2) ADW (x1) ECY (x1) ADJ (x2) ECX (x1) AEB (x2) AEE (x3) •...
  • Page 27 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) • Align the holes in the Pane with those in the Door, and gently set a Window Pane (DHN) down onto the Door. •...
  • Page 28 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) BYR (x1) 7/16 in/po ACH (x2) (≈11 mm) BYS (x1) AHM (x2) ADW (x1) ECY (x1) ECX (x1) ADJ (x2) AEB (x2)
  • Page 29 RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLE DE LA PUERTA DERECHA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje BYS (x2) AEB (x2) BYR (x2) ADW (x2) AEE (x2) BYZ (x4) ECW (x2)
  • Page 30 • Door Channels (BLH) are bowed by design, ensuring a tight fi t when they are closed and latched, making your shed more secure. These channels are formed with a slight bend to the adjoining door edge—like parentheses facing each other: ( ). When the door handle is gently closed and latched, there should be a slight pressure sealing the doors and eliminating any gaps.
