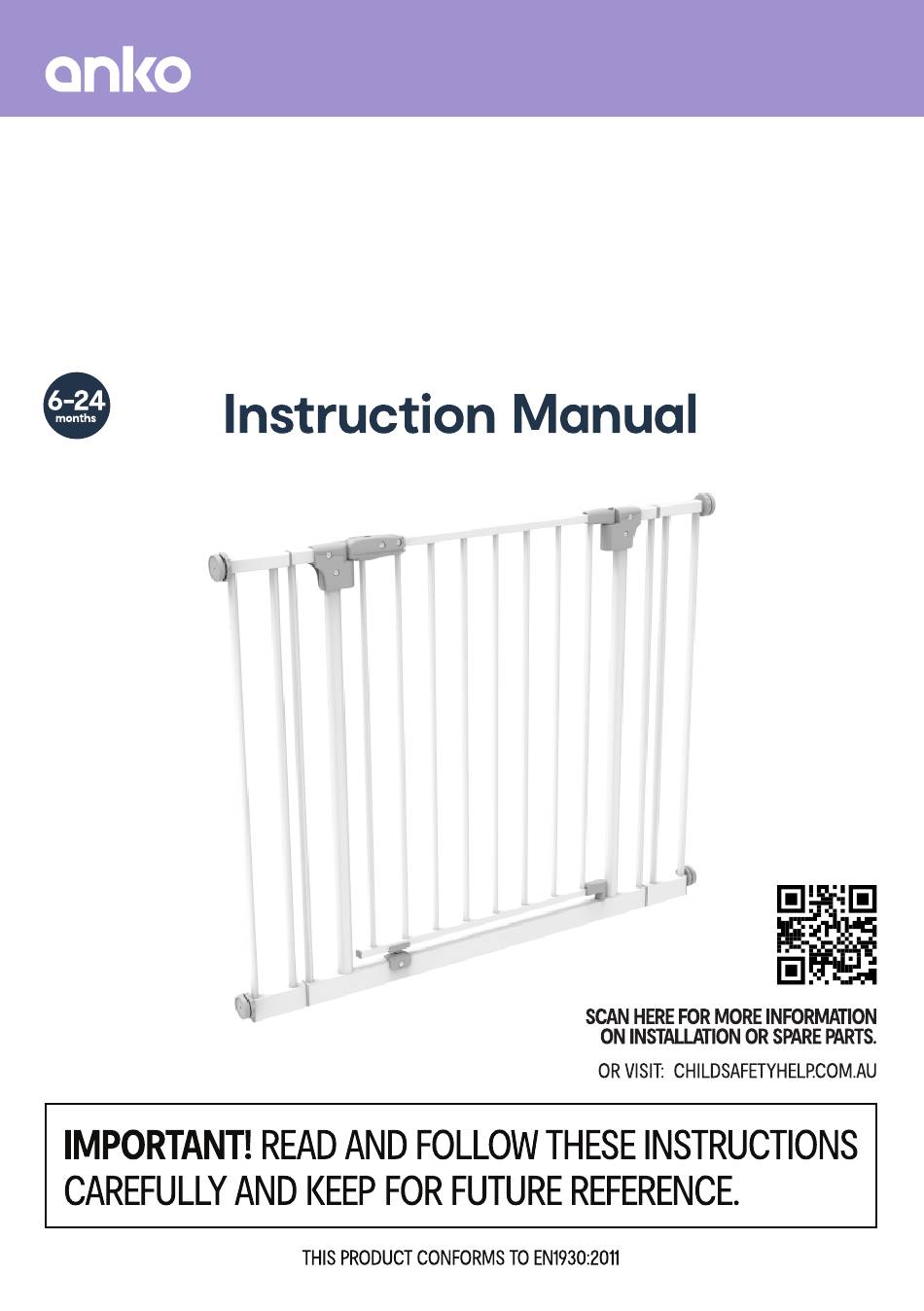

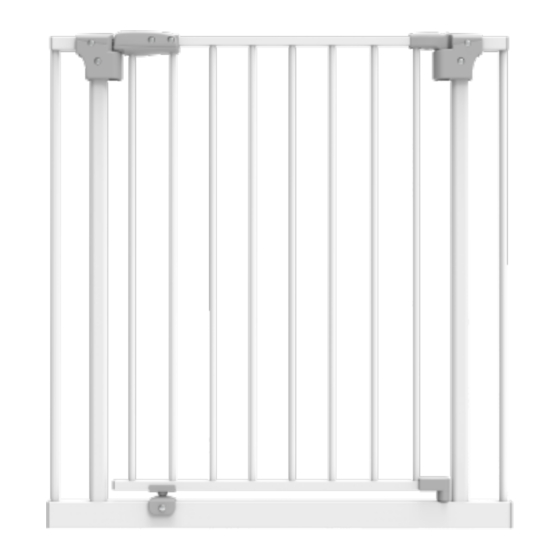

- Page 1 Metal Gate With Extensions • fits openings: 75cm - 83cm (no extensions) 85cm - 93cm (1 x 10cm extension) 95cm - 103cm (2 x 10cm extensions)
- Page 3 WARNING Safety barrier should be checked regularly to ensure that it is secure and functioning in accordance with these instructions. Any additional or replacement parts should be obtained from the Customer Service Centre of the entity you purchased this product. WARNING Never use without Wall Cups.
- Page 4 Wall Cups...
- Page 5 Once the gate has been unpacked, you may notice a gap at the door opening. This is normal with pressure mounted gates and the gap will disappear when it is installed correctly.
- Page 6 Gate with no extensions fits: 75cm - 83cm Gate with 1 x 10cm extension fits: 85cm - 93cm Gate with 2 x 10cm extensions fits: 95cm - 103cm Note: Only use one extension on each side of gate. If no extensions are required, substitute the Extension Pins with the Adjuster Bolts.
- Page 7 OPENING OR DOORWAY Screw Adjuster Bolts and Adjuster Screws together and then place into mounting holes in each corner of gate. Place gate in the opening and ensure the bottom rail is completely flat on the floor and Wall Cups are directly above each other. Mark the position of each Wall Cup on the wall and/or stair post.
- Page 8 OPENING OR DOORWAY Stick the Wall Cups in position using the Adhesive Pads and then place gate into position. For added security, fix each cup to the wall using a small Phillips head screwdriver (not included) and the Screws provided. The gate must only be fixed to a solid and secure surface.
- Page 9 OPENING OR DOORWAY Align gate with Wall Cups and tighten Adjuster Screws by turning clockwise, starting with the bottom Adjuster Screws, then tighten the top Adjuster Screws. Tighten equally until there is only a 1.5mm gap in the locking mechanism. Regularly check tension of all Adjuster Bolts and ensure the gate is secure.
- Page 10 HOW TO OPEN GATE Using one hand, place thumb on the button and grip Gate Panel with fingers. Slide button across and lift Gate Panel simultaneously. Open gate in either direction. To enable stay open feature, When released, gate will swing open gate to 90°...
- Page 11 MAINTENANCE CARE INSTRUCTIONS Simply use a soft damp cloth to wipe gate and dry thoroughly after cleaning. Do not use chemicals or abrasive cleaners.
- Page 12 IMAGES/DRAWINGS IN THE MANUAL ARE FOR VISUAL PURPOSES ONLY. ACTUAL PRODUCT MAY VARY SLIGHTLY. THE MANUFACTURER RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT PRIOR NOTICE. MADE IN CHINA CUSTOMER SERVICE: KMART AU: 1800 124 125 KMART NZ: 0800 945 995 TARGET AU: 1300 753 567 K: 43 363 872 T: 68 948 924...
