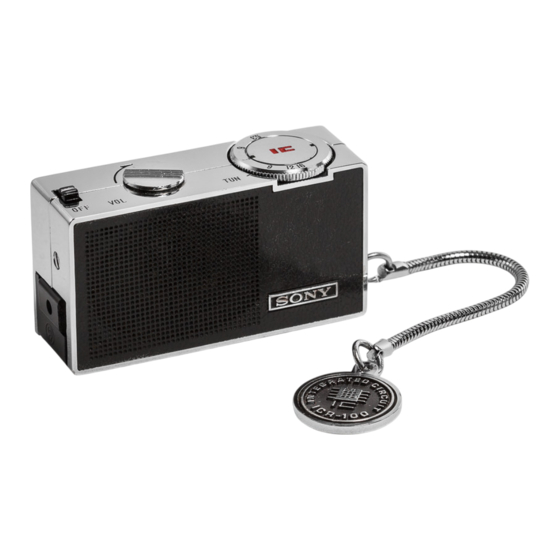

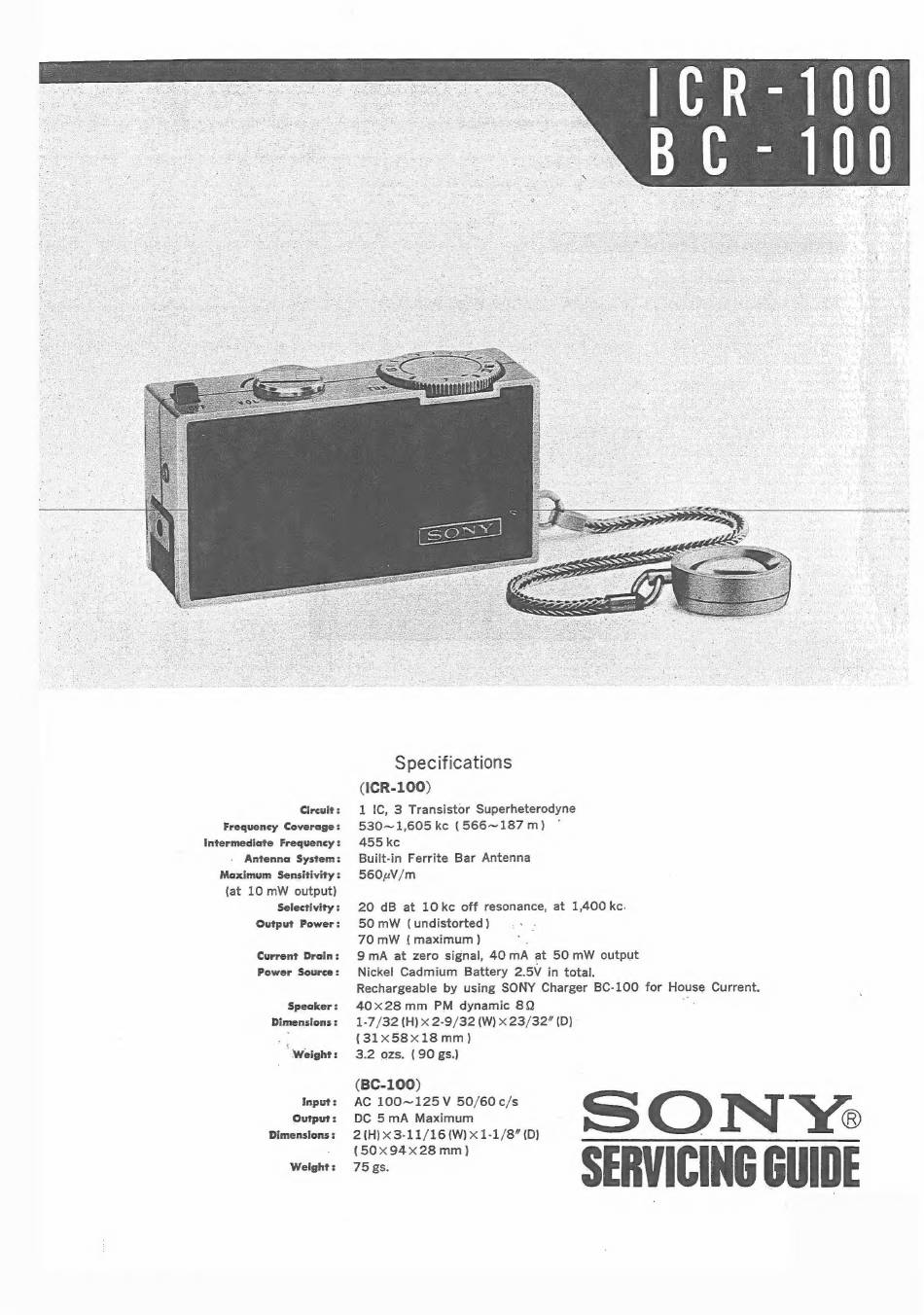

Sony ICR-100 Servicing Manual

Circuit :
Frequency Coverage:
Intermediate Frequency:
Antenna System:
Maximum Sensitivity :
(at 10 mW output)
Selectivity :
Output Power:
Current Drain:
Power Source:
Speaker:
Dimensions :
"Weight :
Input :
Output :
Dimensions :
Weight:
Specifications
(ICR-100)
1 IC, 3 Transistor Superheterodyne
530~1,605 kc (566~187 m)
455 kc
Built-in Ferrite Bar Antenna
560uV/m
20 dB at 10kc off resonance, at 1,400 kc.
50 mW (undistorted )
70 mW (maximum ) :
9mA at zero signal, 40 mA at 50 mW output
Nickel Cadmium Battery 2.5V in total.
Rechargeable by using SONY Charger BC-100 for House Current.
40x28 mm PM dynamic 8Q i
1-7/32 (H) x 2-9/32 (W) X 23/32" (D)
(31x58x18mm)
3.2 ozs. (90 gs.)
(BC-100)
AC 100~125V 50/60c/s
DC 5mA Maximum NI "Yo
2(H) x 3-11/16 (W) x 1-1/8" (D) f
(50x94x28 mm)
75 gs.
