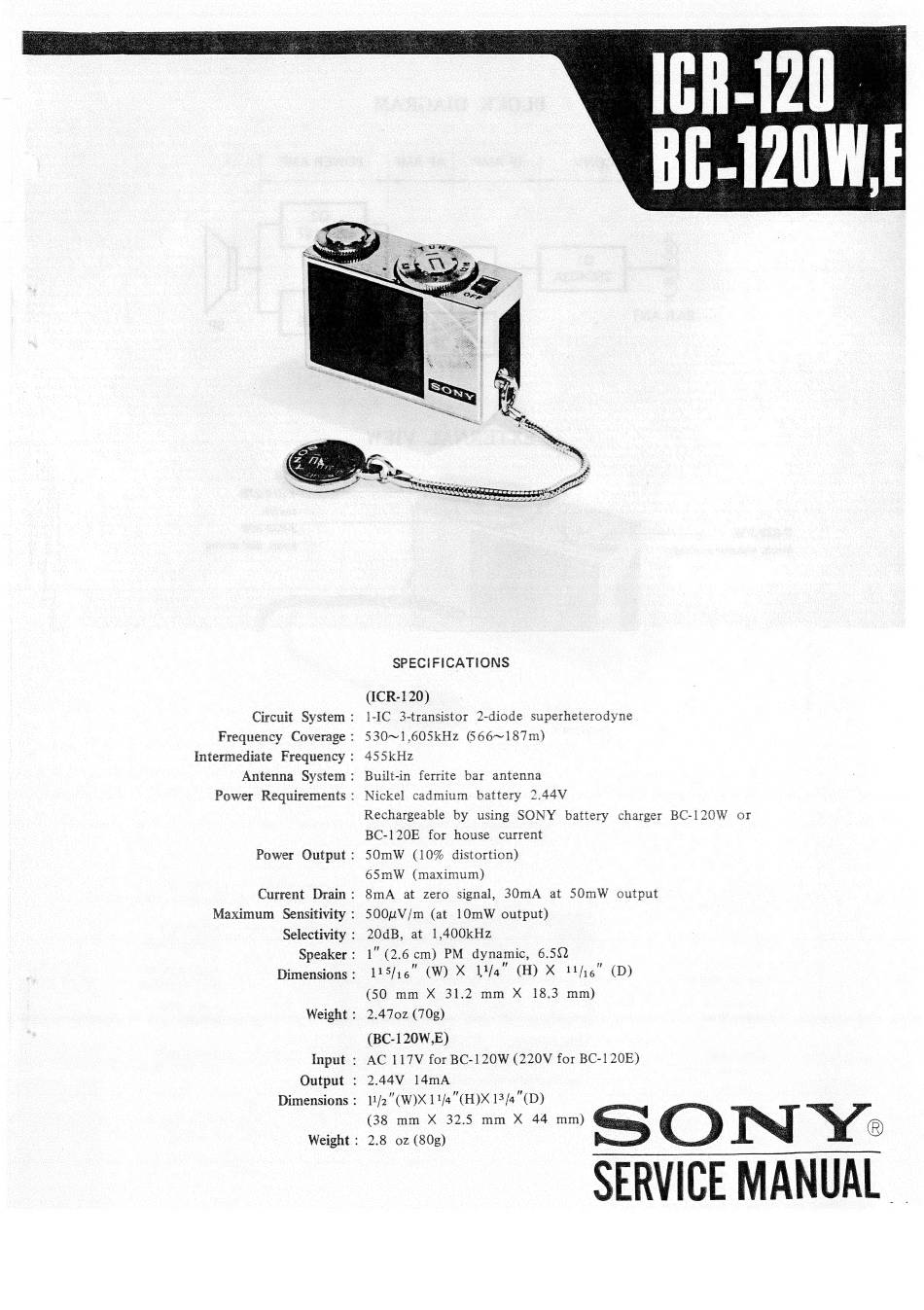

Sony ICR-120 Service Manual

Circuit System :
Frequency Coverage :
Intermediate Frequency :
Antenna System :
Power Requirements :
Power Output :
Current Drain :
Maximum Sensitivity :
Selectivity :
Speaker :
Dimensions :
Weight :
Input :
Output :
Dimensions :
Weight :
SPECIFICATIONS
(ICR-120)
1-IC 3-transistor 2-diode superheterodyne
530~1,605kHz 666~187m)
455kHz
Built-in ferrite bar antenna
Nickel cadmium battery 2.44V
Rechargeable by using SONY battery charger BC-120W or
BC-120E for house current
50mW (10% distortion)
65mW (maximum)
SmA at zero signal, 30mA at 5OmW output
500uV/m (at 10mW output)
20dB, at 1,400kHz
1" (2.6 cm) PM dynamic, 6.5Q
115/16" (W) X WY/a" (A) X 11/6" (D)
(50 mm X 31.2 mm X 18.3 mm)
2.470z (70g)
(BC-120W,E)
AC 117V for BC-120W (220V for BC-120E)
2.44V 14mA
1/2" (W)X 13/4"(H)X 13/4"(D)
(38 mm X 32.5 mm X 44 mm)
2.8 oz (80g)
