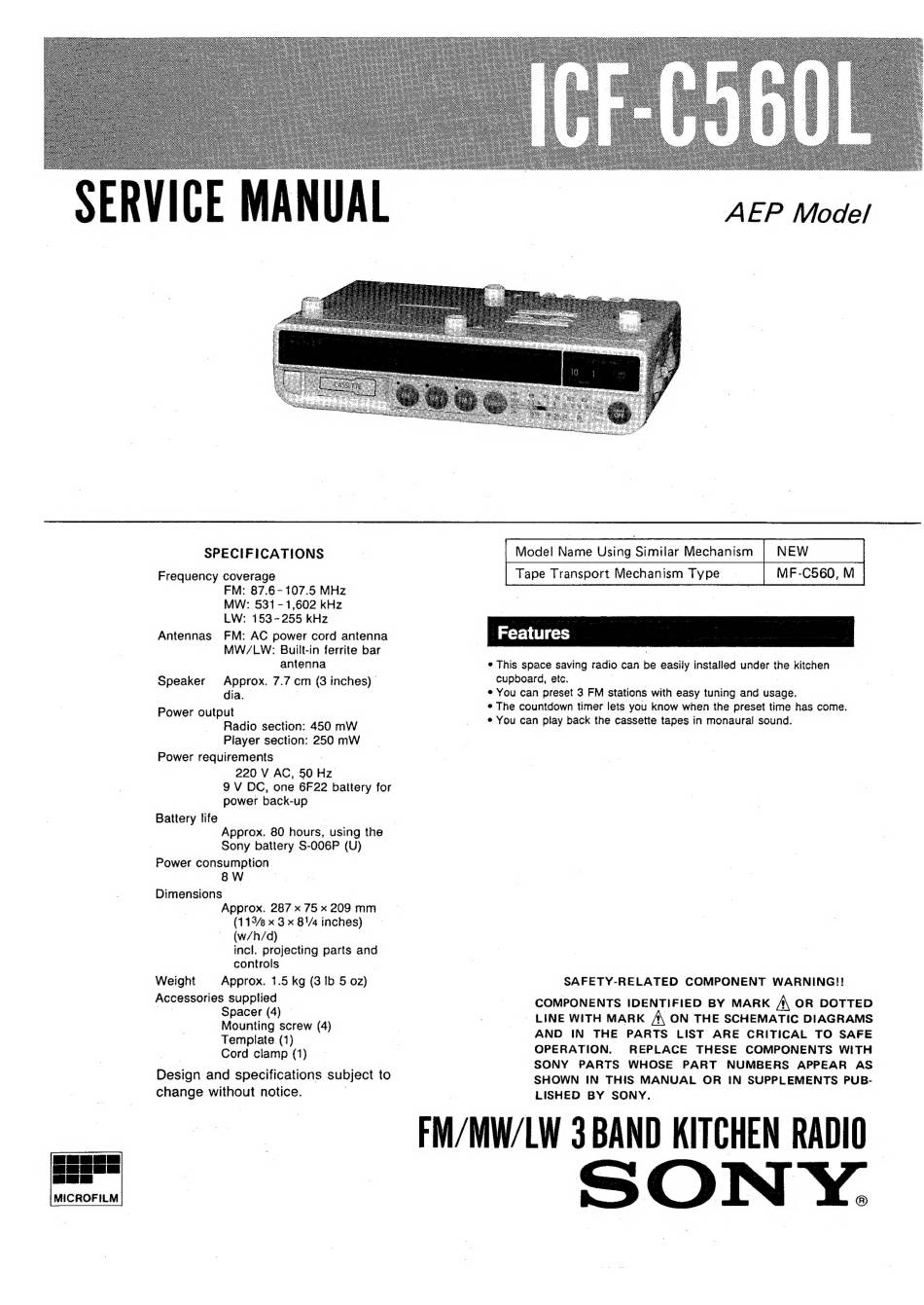

Sony ICF-C560L Service Manual

MICROFILM
SPECIFICATIONS
Frequency coverage
FM: 87.6- 107.5 MHz
MW: 531 - 1,602 kHz
LW: 153-255 kHz
Antennas FM: AC power cord antenna
MW/LW: Built-in ferrite bar
antenna
Speaker Approx. 7.7 cm (3 inches)
dia. |
Power output
Radio section: 450 mW
Player section: 250 mW
Power requirements
220 V AC, 50 Hz
9 V DC, one 6F22 battery for
power back-up
Battery life |
Approx. 80 hours, using the
Sony battery S-OO6P (U)
Power consumption.
8 W |
Dimensions |
Approx. 287 x 75 x 209 mm
(1153/8 x 3 x 81/4 inches)
(w/h/d)
incl. projecting parts and
controls
Weight Approx. 1.5 kg (3 Ib 5 oz)
Accessories supplied
_ Spacer (4) ©
Mounting screw (4)
Template. (1)
Cord clamp (1)
Design and specifications subject to
change without notice. |
Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type ~ MF-C560, M
e This space saving radio can be easily installed under the kitchen
cupboard, etc. | |
¢ You can preset 3 FM stations with easy tuning and usage.
¢ The countdown timer lets you know when the preset time has come.
e You can play back the cassette tapes in monaural sound.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A\ OR DOTTED
LINE WITH MARK A\ ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
FM/MW/LW 3 BAND KITCHEN RADIO
SONY.
