Franklin Electric FSWJ05P Owner's Manual

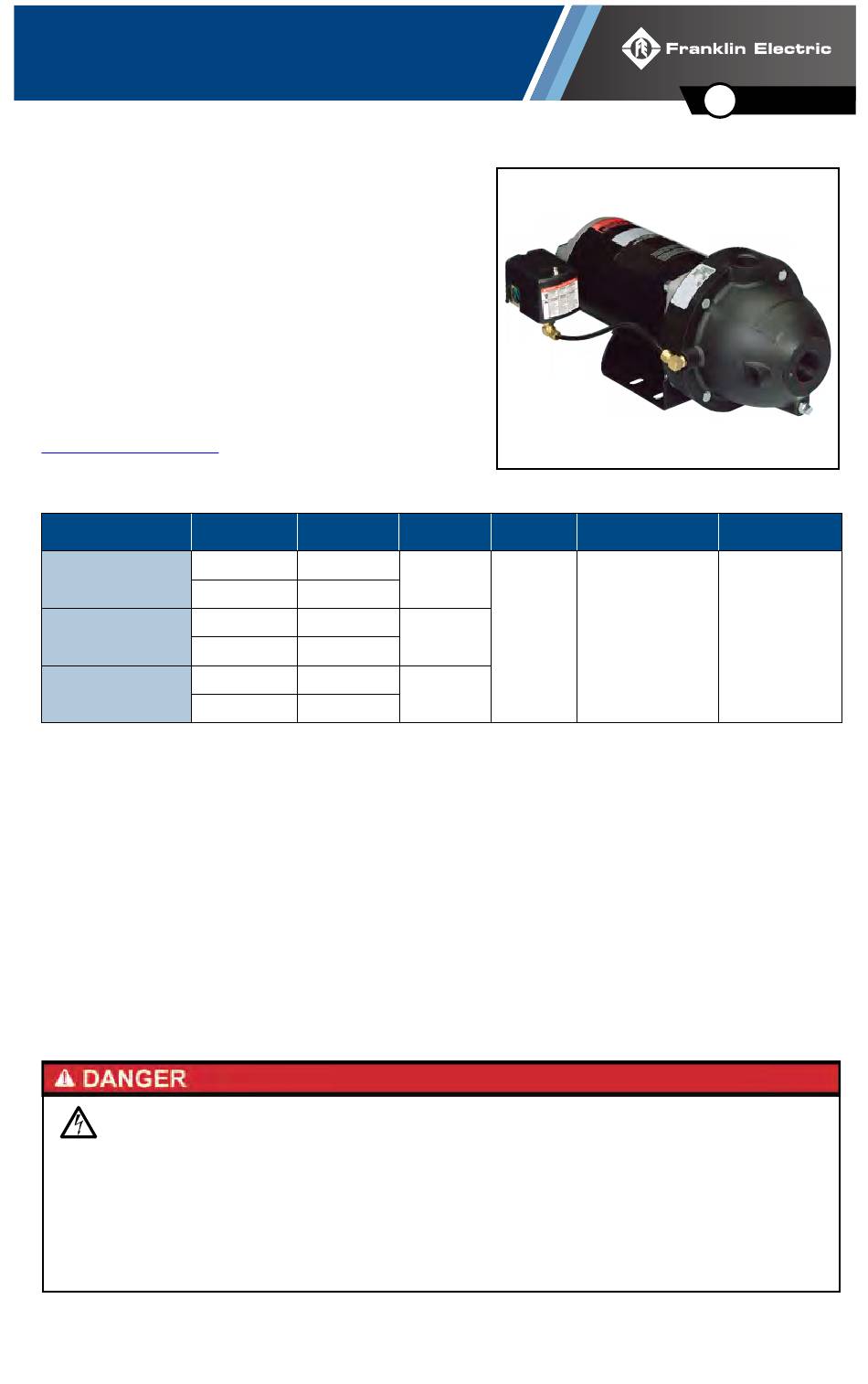

OWNER'S MANUAL
Shallow Well Jet Pump

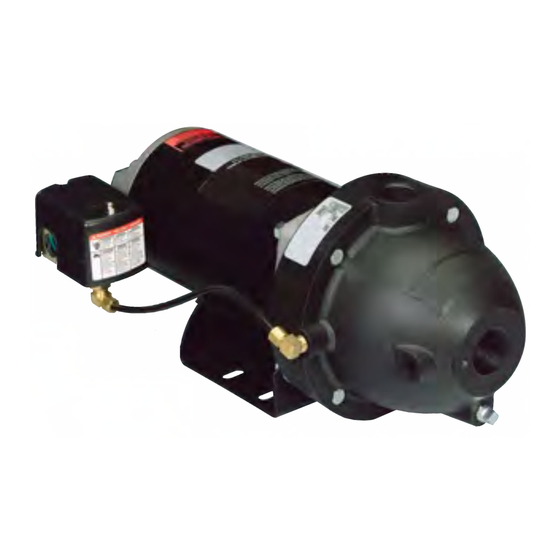

The shallow well jet pump is ideal for the supply of fresh
water to rural homes, farms, and cabins. This pump is suit-
able for installations where the vertical distance from the
pump to the water level does not exceed 25 ft (7.6 m),
including draw-down (less at high altitudes). The intake is
1-1/4" FNPT while the discharge is 1" FNPT. The pressure
gauge port is 1/8" NPT.
This product is covered by a Limited Warranty for a period
of 2 years from the date of original purchase by the con-
sumer. For complete warranty information, refer to
www.franklinwater.com.
Specifications
Model
FSWJ05P
FSWJ07P
FSWJ1P
SAFETY INSTRUCTIONS
This equipment should be installed and serviced by technically qualified personnel who are familiar with
the correct selection and use of appropriate tools, equipment, and procedures. Failure to comply with
national and local electrical and plumbing codes and within Franklin Electric recommendations may result
in electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
Know the product's application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Refer to product data plate(s) for additional operating instructions and specifications.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of death, personal injury, or property damage due to explosion,
fire, or electric shock.
• Do not use in explosive atmospheres or hazardous locations as classified by the NEC, ANSI/NFPA70.
• Do not handle a pump or pump motor with wet hands or when standing on a wet or damp surface
or in water until the unit is unplugged or electrically disconnected.
• Do not use to pump flammable, combustible, or explosive fluids such as gasoline, fuel oil, kerosene,
etc.
Volts Amps
115 12.4
230 6.2
115 14.8
230 7.4
115 13.0
230 6.7
HP Phase
1/2
3/4 Single 1.25-inch FNPT
1
EN
Suction Discharge
1-inch FNPT
English
