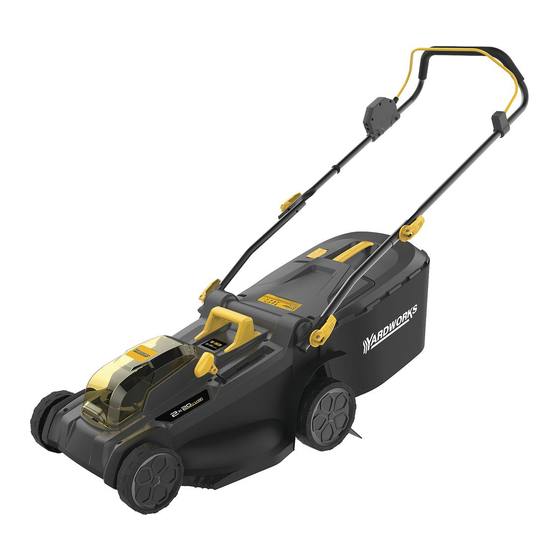

- Page 1 2x20V 18'' Cordless Poly Deck Lawn Mower 270- 1154 OPERATOR’S MANUAL TOLL-FREE HELPLINE: 1-888-930-8528 Read this operator manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ..........................Page 1 Important Safety Instructions ......................Page 4 Know Your Tools ..........................Page 8 Charging Your Battery ......................... Page 10 Assembly ............................Page 12 Operation ............................Page 13 Maintenance ..........................Page 18 Troubleshooting ..........................Page 21 Warranty ............................ - Page 3 To reduce the risk of injury,user must read and understand Read the operator’s manual the operator’s manual before using this product. Wear Eye Protection Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
- Page 4 Blade Keeps Running. Blade continues to rotate after machine is switched off. WARNING! Always turn the manchine OFF and remove the Remove Battery Pack batteries and safety key before conducting and Safety Key. inspection,cleaning and maintenance. WARNING! Do not expose the unit to ain or wet conditions. Wet Conditions Alert This product uses lithium-ion (Li-ion) battries.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS DANGER: This machine was built to be operated according to the rules for safe operation included in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. - Page 6 SAFETY INSTRUCTIONS FOR WALK-BEHIND LAWN MOWERS WARNING: Grass bag components, the discharge cover, side discharge chute, mulching plug and trailing shield are subject to wear and damage, which could expose moving parts or allow objects to be thrown and could increase the risk of injury. For safety protection, frequently check all components and replace damaged components immediately with identical replacement parts, listed in this manual.
- Page 7 15. The motor/blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in personal injury through contact with the rotating blade. The motor/blade control handle must operate easily in both directions and automatically return to the disengaged position when released.
- Page 8 SAFETY WARNINGS FOR BATTERY PACK AND CHARGER 1. Do not dismantle, open or shred battery pack. 2. Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. The cells may explode. Check with local codes for possible special disposal instructions. 3.
-
Page 9: Know Your Tools
KNOW YOUR TOOLS 11.Grass Bag 1.Push Handlebar 2.Bail Control Bar 12.Mower Deck 3.Lock Off Button 13.Rear Wheel 4.Electrical Cable 14.Carrying Handle 15.Front Wheel 5.Upper Handlebar 6.Lower Handlebar 16.Battery Compartment Cover 7. Rear Discharge Cover 17.Mulching Plug 18.Safety Key 8. Quick-Assembly Set 9.Height Adjustment Lever 19.Battery Pack 10.Cable Clamp... - Page 10 Technical Data Item No. 270-1154 Voltage 40V (2X20V) Deck Width 18"(455mm) Cutting Width 17"(430mm) No-Load Speed 3700RPM Front Wheel Diameter 6"(150mm) 7"(180mm) Rear Wheel Diameter Cutting Height 1"-3"(25-75mm) Cutting Height Positions 10.6 gal.(40L) Grass Catcher Volume 4.0Ah Li-ion (D01204200) Battery Pack 2.4A Dual-port Charger (D02203800)
-
Page 11: Charging Your Battery
CHARGING YOUR BATTERY BATTERY INDICATOR The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator. Battery Charge Level/Working LED Indicator Conditions 3 lights on... - Page 12 NOTICE: The battery pack will fully charge if left on the charger, but it will not overcharge. If the battery pack remains on the charger for one month or more, it will drop to lower charge capacity. If this occurs, re- install the battery pack on the charger to recharge it fully. A significantly reduced run time after fully charging the battery pack indicates that the batteries are near the end of their usable life and must be replaced.
- Page 13 ASSEMBLY AND OPERATION ATTACHING/REMOVING THE HANDLE ASSEMBLY GRASS BAG(Fig. 3 & 4) WARNING: Do not attempt to start the WARNING: mower before it has been completely assembled. Do not at any time make any adjustment to the lawn mower without a.Lift the lower handle up and set it to the fixed height.
-
Page 14: Operation
WARNING: When using the grass bag, never start or operate the mower unless the grass bag has been firmly hooked and secured onto the mower and the rear discharge cover rests snugly on the top of the grass bag. WARNING: Under normal usage, bag material is subject to wear . - Page 15 STARTING/STOPPING THE LAWN MOWER WARNING: The operation of any lawn mower can result in foreign objects being thrown into your or others’ eyes, which can damage eyes severely. Always wear safety glasses while operating the mower or while performing any adjustments or repairs on the mower.
- Page 16 MOWER OVERLOAD PROTECTION To prevent overload conditions, do not try to remove too much grass at one time. Slow down your cutting pace or raise the cut height. Your mower has built-in overload circuit protection. When the mower is overloaded, the motor will stop and the power indicator on the mower will flash orange.
- Page 17 MOWING ON SLOPE WARNING: If you strike a foreign object, stop the motor and remove the battery. Slopes are a major factor related to slip-and-fall Thoroughly inspect the mower for any accidents, which can result in severe injury. damage, and repair the damage before Operation on slopes requires extra caution.
-
Page 19: Maintenance
MAINTENANCE a.Remove the battery packs and the safety key WARNING: When servicing, use only from the mower. identical replacement parts. Use of any b.Turn the mower over on its side to expose the other parts may create a hazard or cause underside of the blade housing. - Page 20 SHARPENING THE BLADE TO SHARPEN BLADE IN A VISE: a.Remove the blade from the mower (please see WARNING: Always protect your hands BLADE REPLACEMENT). by wearing heavy gloves or wrapping the b.Secure the blade in a vise(Fig. 14). cutting edges with rags or other materials when performing any maintenance on the mower blade.
- Page 21 MOWING ON SLOPE WARNING: An unbalanced blade will cause excessive vibration when rotating Slopes are a major factor related to slip-and-fall at high speeds. It may cause damage to accidents, which can result in severe injury. the mower and could break, causing Operation on slopes requires extra caution.
-
Page 22: Troubleshooting
STORING THE BATTERY PACK a.Protect the battery against moisture and water. b.Store the battery only within a temperature range from 41°F(5°C) to 1O4°F(40°C). As an example, do not leave the battery in a vehicle or in the hedge trimmer in direct sunlight. c.Clean the ventilation slots of the battery occasionally with a soft, clean and dry brush. - Page 24 PROBLEM POSSIBLE CAUSE SOLUTION The cutting blade is loose. Tighten the blade bolt. Balance the blade following the The cutting blade is unbalanced. There is excessive vibration. instructions. The cutting blade is bent. Replace the blade. Re-tighten the blade. The The blade is not tightened to the The motor works but the recommended torque for the blade...
