Summary of Contents for Milesight GS301

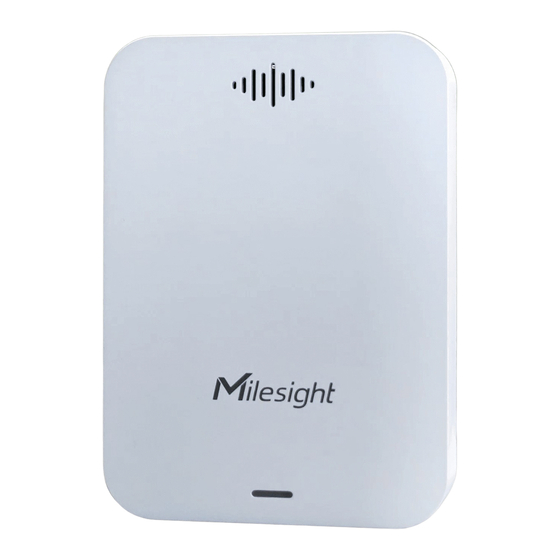

- Page 1 Bathroom Odor Detector Sensor Featuring LoRaWAN ® GS301 User Guide...
- Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes. The device is not intended to be used as a reference sensor, and Milesight will not should ...
-
Page 3: Table Of Contents
3.5.2 Backup .........................13 3.5.3 Reset to Factory Default .....................14 4. Installation ............................15 5. Detector Maintenance ........................16 6. Milesight IoT Cloud Management ....................16 7. Device Payload ..........................17 7.1 Basic Information ........................18 7.2 Sensor Data ........................... 18 7.3 Downlink Commands ......................19 Appendix .............................. -
Page 4: Product Introduction
LED light alarm and buzzer to notify people timely to ventilate, which is an important part in smart bathroom solution. Apart from local alarms, GS301 can also report the sensor data and alarm messages remotely using LoRaWAN technology. Integrating with Milesight LoRaWAN gateway and Milesight IoT ®... -
Page 5: Hardware Introduction
2. Hardware Introduction 2.1 Packing List 1 × Bathroom Odor 2 × Wall Mounting 1 × Quick Start 1 × Warranty Card Detector Kits Guide If any of the above items is missing or damaged, please contact your sales Representative. 2.2 Hardware Overview 2.3 LED and Button Patterns Function... -
Page 6: Dimensions(Mm)
H S data. 2. Download and install “Milesight ToolBox” App from Google Play or Apple App Store. 3. Enable NFC on the smartphone and launch Milesight ToolBox. 4. Attach the smartphone with the NFC area to the device to read device information. Basic information and settings of the device will be shown on ToolBox App if it’s recognized... -
Page 7: Lorawan Settings
3) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 4) GS301 can also be configured by a dedicated NFC reader, which can be purchased from Milesight IoT. 3.2 LoRaWAN Settings Go to Device >... - Page 8 Application Appskey for ABP mode, default is 5572404C696E6B4C6F52613230313823. Session Key RX2 Data Rate RX2 data rate to receive downlinks or send D2D commands. RX2 Frequency RX2 frequency to receive downlinks or send D2D commands. Unit: Hz Select Standard-Channel mode or Single-Channel mode. When Single-Channel Channel Mode mode is enabled, only one channel can be selected to send uplinks.
- Page 9 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
-
Page 10: Basic Settings
5) For -868M model, the default frequency is EU868; for -915M model, the default frequency is AU915. 3.3 Basic Settings Go to Device > Settings > General Settings of ToolBox App to change the reporting interval, etc. Parameters Description Reporting interval of transmitting current sensor values to the network Reporting Interval server. -
Page 11: Threshold Settings
Note: When temperature is higher than 35°C, the threshold alarm will stop working until the temperature is back to 35°C or below. 3.4.3 Milesight D2D Settings Milesight D2D protocol is developed by Milesight and used for setting up transmission among Milesight devices without gateway. When D2D setting is enabled, GS301 can work as the... - Page 12 ® 2. Go to Device > Settings > D2D Settings to enable D2D function, and define an unique Milesight D2D key to be the same as Milesight D2D agent device. (Default Milesight D2D Key: 5572404C696E6B4C6F52613230313823). 3. Define a 2-byte hexadecimal control command (0x0000 to 0xffff). GS301 will send the control command to correspond Milesight D2D agent devices according to the conditions.
-
Page 13: Maintenance
1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. 3.5.2 Backup GS301 supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ®... -
Page 14: Reset To Factory Default
Note: Slide the template item to the left to edit or delete it. Click the template to edit the configurations. 3.5.3 Reset to Factory Default Please select one of the following methods to reset the device: Via Hardware: Hold on reset button more than 10 seconds to reset. Via ToolBox App: Go to Device >... -
Page 15: Installation
4. Installation Locations to avoid In a area expect for the operating temperature or larger temperature difference; Damp or very humid location expect for operating humidity (0 to 95%); The place close to heat source and even sunlight; ... -
Page 16: Detector Maintenance
35°C and not more than 55°C, and keep the humidity not below 15%RH. 6. Milesight IoT Cloud Management GS301 sensor can be managed by Milesight IoT Cloud platform. Milesight IoT Cloud is a comprehensive platform the provides multiple services including devices remote management and data visualization with the easiest operation procedures. -
Page 17: Device Payload
2. Go to My Device page and click + New Device. Fill in the SN of device and select associated gateway. 3. After the device is online in Milesight IoT Cloud, you can check the data via webpage or mobile App and create dashboard for it. -
Page 18: Basic Information
Type Value 0101 (Software (V1.1) (Device Type) (Class A) Version) 7.2 Sensor Data GS301 device will report the sensor data according to reporting interval or threshold reporting interval. Item Channel Type Description Battery Level UINT8, Unit: % Temperature INT16, Unit: °C, Resolution: 0.1 °C Humidity UINT8, Unit: %RH, Resolution: 0.5 %RH... -
Page 19: Downlink Commands
Type Value 01 00=>00 01 (Hydrogen Sulfide S=1*0.01= 0.01ppm 7.3 Downlink Commands GS301 supports downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03(Set Reporting Interval) 2 Bytes, unit: s 9 Bytes, CTRL(1B)+Min(2B)+Max(2B)+00000000(4B) - Page 20 010: H 011: NH (Abnormal Odor threshold in D2D Settings) 100: H S (Abnormal Odor threshold in D2D Settings) 101: NH (Normal Odor threshold in D2D Settings) 110: H S (Normal Odor threshold in D2D Settings) Bit6~Bit7: 00 10 (Reboot) ff (Reserved) 1 Byte, 2f (Set LED Indicator)
-
Page 21: Appendix
4. When NH is over 2ppm, it will trigger the threshold alarm . ff060a0000c80000000000 Channel Type Value CTRL: 0a=>0000 1010 (NH over threshold) 06 (Set Threshold Alarm) Min: 0000=>0 Max: c800=>00c8=>200*0.01=2ppm Appendix Ammonia (NH ) Levels and Guidelines Concentration Description 0~0.10 ppm Not perceptible or very weak 0.10~0.60 ppm...
