Summary of Contents for Lumencor MAGMA

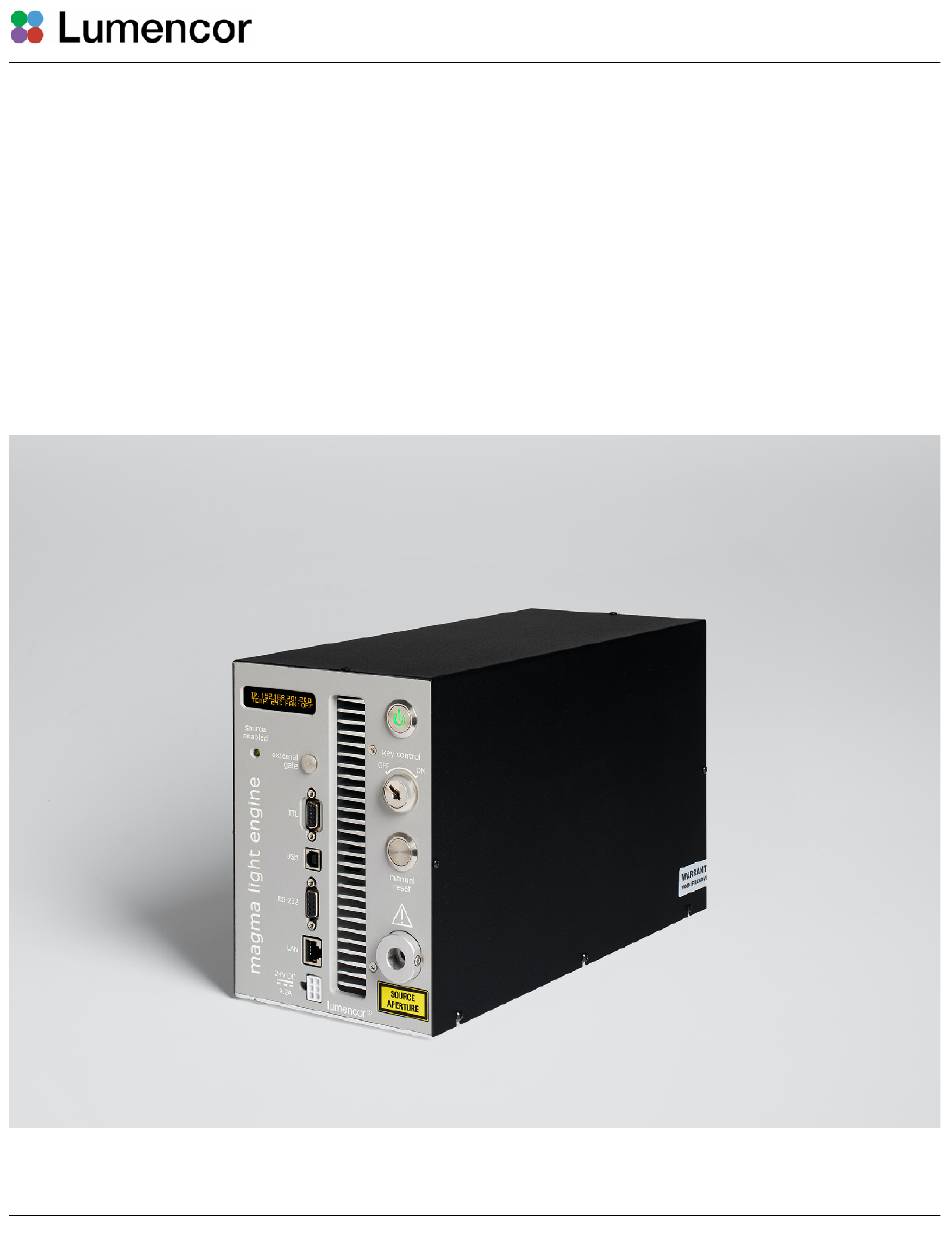

- Page 1 Lumencor Light Engine Manual MAGMA Engine Light MAGMA Light Engine Manual 57-10019...
- Page 2 Lumencor utilizes regulatory model names for all certified and CE marked products. The regulatory model names are traceable to all regulatory documentation, third party reports and certifications. “Regulatory Model: Magma” is used as a representative model for all certified and CE marked MAGMA products. Emissions This equipment has been tested and found to comply with the limits of EMC directive 2014/30/EU and FCC part 15 (CISPR 11:+A1:2016).
-
Page 3: Table Of Contents
Table of Contents 1. Introduction 2. Precautions and Warnings 3. Installation and Operating Instructions 4. Light Output Characteristics 5. Operational Specifications 6. Routine Maintenance and Trouble Shooting 7. Customer Support 8. Warranty MAGMA Light Engine Manual 57-10019... -
Page 4: Introduction
The MAGMA Light Engine can either be controlled by a GUI resident on the on-board microprocessor. Alternatively, the light sources may be turned on and off by TTL inputs from a trigger device such as a camera or real-time controller. -
Page 5: Precautions And Warnings
Warning: ONLY use the power supply provided by Lumencor. The Lumencor-supplied 24 VDC, 9.2 A external power supply is required for use with the MAGMA Light Engine. The light engine is required to be supplied by an approved/certified DC power source meeting the minimum electrical ratings of the product. - Page 6 VDC/9.2 A alimentation externe est recommandé pour une utilisation avec le moteur de lumière MAGMA . Le moteur léger doit être alimenté par une source d'alimentation CC approuvée/certifiée répondant aux caractéristiques électriques minimales du produit. L'alimentation CC doit avoir le cordon d'alimentation CA connecté...
- Page 7 DISCLAIMER: Lumencor shall not be liable for injury to the user or damage to the product resulting from the MAGMA light engine being used in a way for which it was not intended and ®...
-
Page 8: Installation And Operating Instructions
The MAGMA Light Engine ships with the following list of standard components: 1. The MAGMA Light Engine, configured with 21 output channels (colors) and an output adapter for an optical fiber bundle as documented on the certificate of conformance (Figure 1). - Page 9 Lumencor Light Engine shall be fully evaluated to verify all applicable safety and regulatory compliance requirements prior to use. When setting the MAGMA Light Engine up for use, place the Output unit on a hard surface and avoid blocking or restricting coupler, airflow at the air inlets (front panel;...
- Page 10 The MAGMA Light Engine may be configured for light delivery via a 3 mm liquid light guide or an SMA-terminated optical fiber. The output couplers are built into the light engine front panel and are not field-exchangeable (Figure 3).
- Page 11 Customers planning to connect multiple Light Engine remote interlocks together will need to contact Lumencor prior to integration. INTERCONNECTING LIGHT ENGINES OR USING THE REMOTE INTERLOCK INCORRECTLY CAN RESULT IN ANOMALOUS BEHAVIOR AND/OR DAMAGE TO THE PRODUCTS. AVERTISSEMENT : Le verrouillage à distance repose sur un circuit de continuité passif pour un fonctionnement correct.
- Page 12 SMA-terminated optical fiber, connect the fiber to the output adapter using the integral threaded sleeve. 2 To enable light output of the MAGMA Light Engine the external gate jumper, control key, remote interlock jumper, and Liquid light guide must be inserted.
- Page 13 3.3.4 Control via Serial Ports MAGMA Light Engine have two serial ports, labeled USB and RS-232 (Figure 3), which can be set to receive either LEGACY or STANDARD mode commands. Connection to the computer requires a USB-A-to-USB B cable (29-10058) or USB-to-RS-232 cable (29-10011).
-
Page 14: Light Output Characteristics
4. Light Output Characteristics MAGMA Light Engine may incorporate different types of solid state light sources. Constituent light sources may include LEDs or luminescent light pipes. The light sources installed and the bandpass filters associated with each are shown on the Certificate of Conformance included with the shipping documents e-mailed by Lumencor to the customer. -
Page 15: Operational Specifications
Bandpass filters installed in the MAGMA are not user-exchangeable. Changes to the filter configuration require return of the light engine to Lumencor’s factory for service (see Section 7). -
Page 16: Routine Maintenance And Troubleshooting
6. Routine Maintenance and Troubleshooting No routine maintenance is required. There are no user-replaceable components or sub-assemblies in the MAGMA Light Engine. Opening the light engine enclosure will void the manufacturer’s warranty. If problems are encountered during installation or routine operation, review the troubleshooting procedures described below. -
Page 17: Customer Support
RMA number. 8. Warranty MAGMA Light Engine come with an 24 month warranty, starting on the original date of shipment from Lumencor. Light Engines qualifying for warranty service must be verifiably delivering performance that is substantially at variance with the levels documented in the certificate of conformance.
