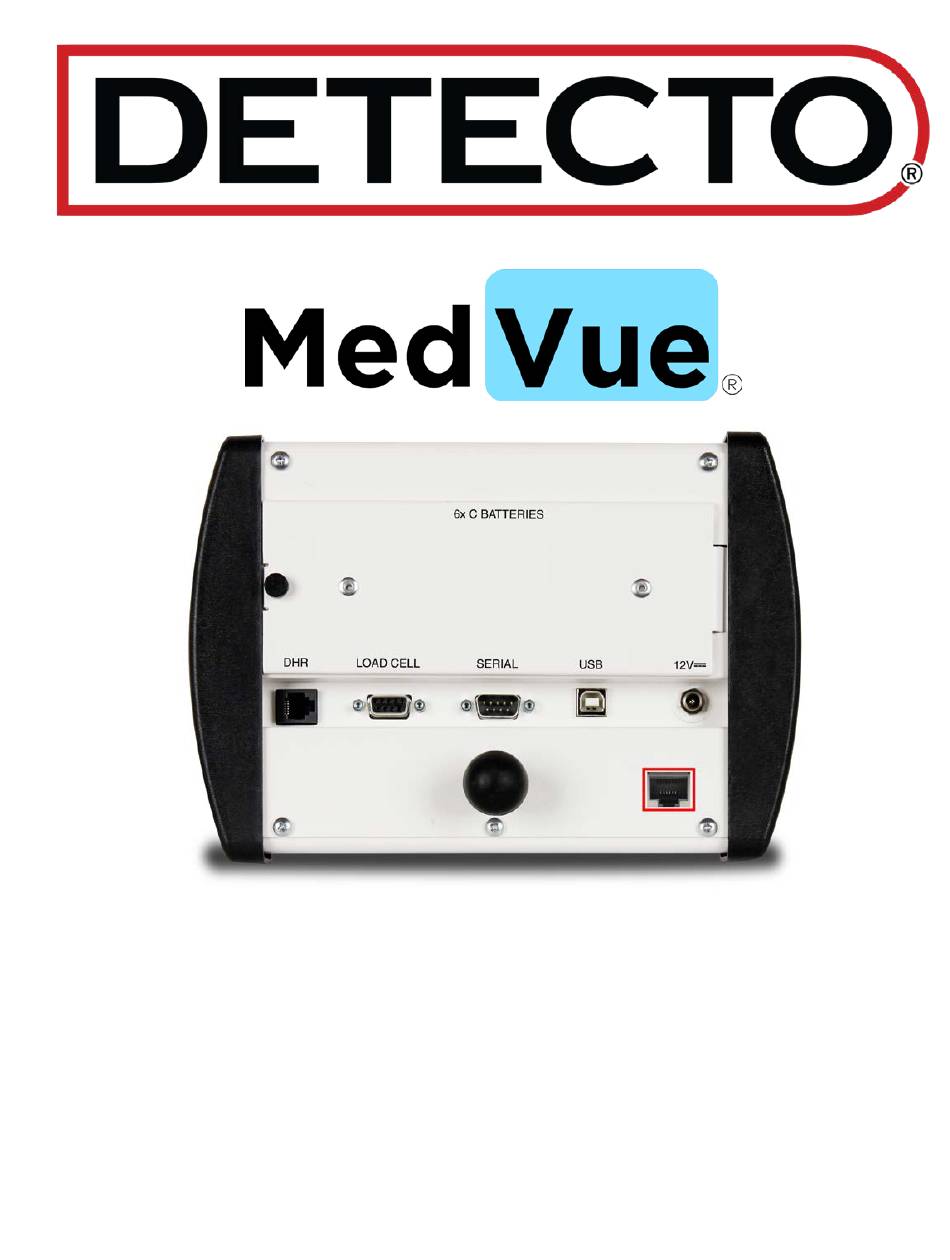

- Page 1 Model MVIP Ethernet Option Setup and Operation Manual 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
- Page 2 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
- Page 3 Persons engaging in the procedures do so entirely at their own risk. PRECAUTIONS Before using this device, read this manual and pay special attention to all NOTIFICATION symbols: ELECTRICAL STATIC IMPORTANT WARNING SENSITIVE 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
-
Page 4: Fcc Compliance Statement
Please do your part by making certain that this device is properly disposed of. The symbol shown to the right indicates that this device must not be disposed of in unsorted municipal waste programs. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... -
Page 5: Installation
15. Reinstall both end caps and secure with the four (4) screws removed in step 1. 16. Press the ON/OFF key to turn the MedVue on. 17. The MedVue is now ready to configure for the network. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... -
Page 6: Setup Review
2 = Ethernet Port Output Mode is set for Continuous Data 3 = Ethernet Port Output Mode is set for a Printer (not for connection to a printer but can output print data to a PC if connected) 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... -
Page 7: Printer Type
ENTER key to save it. Allowable values are YES or no. YES = Ethernet settings are reset no = Ethernet settings are not reset to factory default settings to factory default settings 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... -
Page 8: Network Configuration
IP address and a subnet mask that will allow it to communicate to the default settings of the MedVue. Example of PC network settings that will allow you to connect to the MVIP default setup: 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... - Page 9 Enter “detecto” as the password and click on the “Submit” button. You should then be presented with a new page that contains a form that can be used to set up the network configuration to connect to an existing network.
- Page 10 NETWORK CONFIGURATION, CONT. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
- Page 11 The following are valid settings for this parameter and their descriptions. The web server will automatically start on the next power cycle. This setting will expose ALL of the MedVue MVIP option card parameters and is not recommended for normal use. 100 = HTTPS secure web server will be started automatically (same as ‘1’...
- Page 12 It may be necessary after changing parameters to power cycle the MedVue for the settings to take effect. It is important to wait at least 20 seconds before attempting the power cycle to ensure all settings have been saved in the MedVue MVIP option card. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
-
Page 13: Operation
= Motion bit (‘M’ = Motion, ‘ ‘ = Settled) = Space DDDDDDDDDD = Weight with a decimal point if necessary = Units (e.g. ‘lb ‘, ‘kg ‘, ‘ton’, etc.) <CR> = Carriage return (hex 0D) 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation... - Page 14 (see <LF>W<CR> above), Height, BMI, ID<CR> NOTE: If the MedVue has been set to the continuous mode of outputting weight, it will output the weight in the format listed above for <LF>W<CR> every 500 milliseconds. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
- Page 15 7. Change this setting to YES (press the 1/YES key) and then press the ENTER key. 8. Wait for the MedVue to reset the MVIP. 9. Refer to the Network Configuration section of this manual to set up a network connection. 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation...
-
Page 16: Statement Of Limited Warranty
(2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect. - Page 18 DETECTO 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 www.Detecto.com Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 8555-M520-O1 Rev B • MedVue MVIP Setup and Operation 8555-M520-O1 Rev B 03/21...
