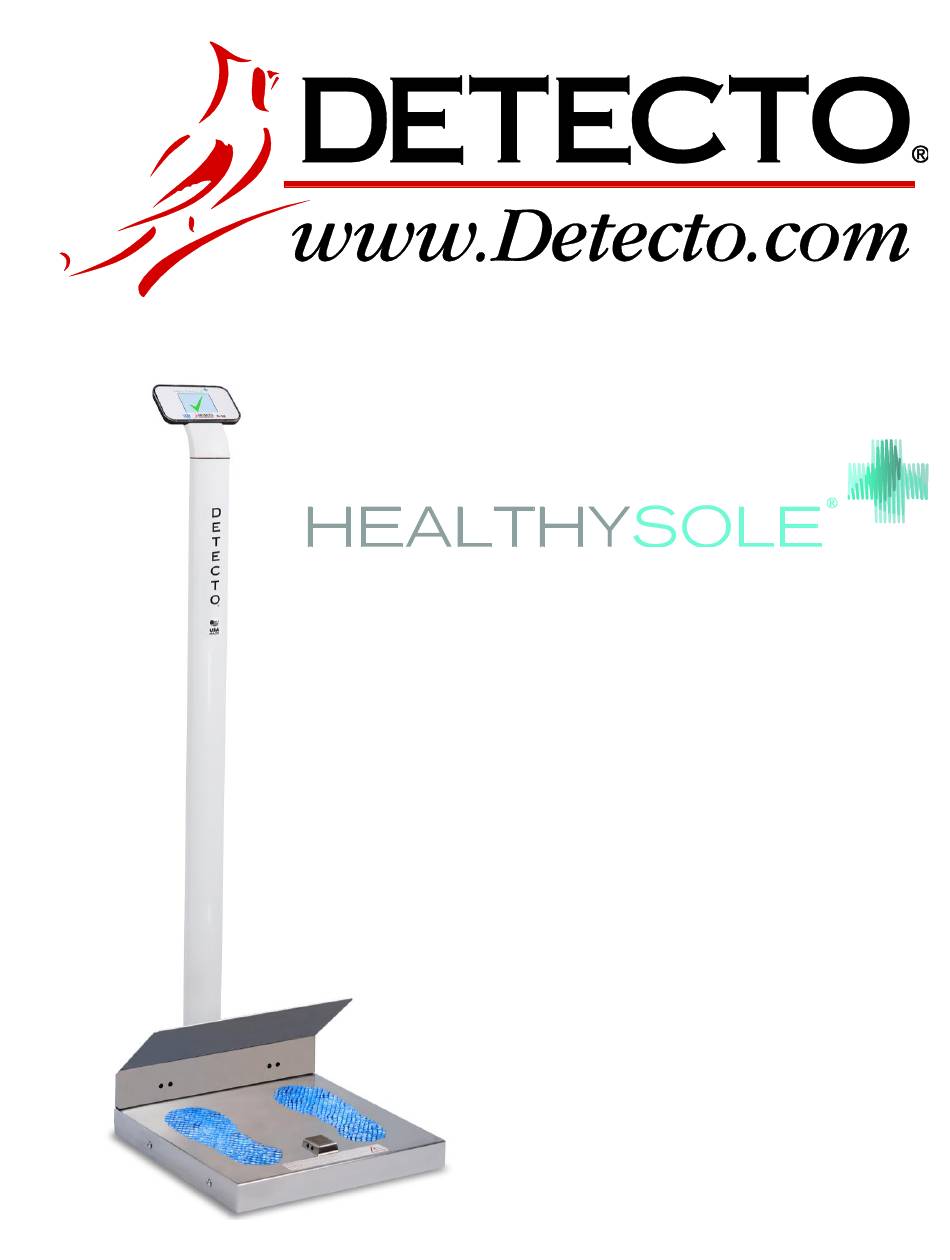

HealthySole
Plus
System
Owner's Manual
3300-0196-0M Rev A 05/16
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HealthySole Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Detecto HealthySole Plus

Summary of Contents for Detecto HealthySole Plus

  • Page 1 ® HealthySole Plus System Owner’s Manual 3300-0196-0M Rev A 05/16...
  • Page 2 3300-0196-0M Rev A 05/16...
  • Page 3 DISCLAIMER DETECTO and HealthySole, LLC shall not be held liable for any improper or incorrect use of the information in the marketing material or technical documents and assume no responsibility for use of the information. All information in the marketing material or technical documents is for general information purposes only.
  • Page 4 FCC COMPLIANCE STATEMENT This equipment generates, uses and can radiate radio frequency and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been designed within the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........... . Page 1 CAUTIONS .

  • Page 7: Introduction

    INTRODUCTION Thank you for purchasing our Detecto HealthySole® Plus System, the first clinically proven No-Touch/Hands Free, UVC Germicidal, chemical free and Active Disinfection Technology™ to significantly manage the spread of infectious microorganisms traveling on the bottom of shoes. HealthySole® Plus is a new, effective and groundbreaking use of UVC technology that reduces the dangerous organisms that cause HAI’s.

  • Page 8: Cautions

    CAUTIONS  NEVER expose eyes or skin to UV rays. Affix caution labels where UV light exposure is possible.  DO NOT expose or place bare feet or place feet with socks onto unit or injury may occur.  ONLY place shoes onto the HealthySole® system. ...
  • Page 9 CAUTIONS, CONT. SHOE PLACEMENT The heel of your shoe must be placed at the back of the heel print on the top plate for proper results or the unit will not operate. Watch screen for proper left right shoe placement on top plate. CAUTION: Never expose eyes or skin to UV rays.

  • Page 10: Specifications

    SPECIFICATIONS Display Type: 3.2 in (diagonal) full color TFT display 320 x 240 resolution Touch Screen: Resistive touch panel covering the display Infra-red Foot Placement: Four IR sensors located in the base (two for toe of shoes and two for heels of shoes) Shoe Opening Dimensions: 12 in L x 4.375 in W (305 mm L x 111 mm W) Women’s Size 6...

  • Page 11: Site Preparation Requirements

    SITE PREPARATION REQUIREMENTS Environmental  For indoor use only.  Suitable for dry environments only RH < 90% and non-condensing environments.  NEVER allow system to get wet.  NEVER use around corrosive chemicals or products.  Explosion hazard - Do not place in an oxygen or flammable environment. ...

  • Page 12: Installation

    INSTALLATION Unpacking Carefully remove the HealthySole® Plus System from the shipping carton and inspect it for any damage that may have taken place during shipment. Keep and use the original carton and packing material for return shipment if it should become necessary. The purchaser is responsible for filing all claims for any damages or loss incurred during transit.

  • Page 13: Operation

    OPERATING OR SERVICING Display when System is Idle Operation To operate the HealthySole Plus, simply stand on the platform with the heels of footwear even with back of heel outline, paying attention to the foot placement indication on the display.
  • Page 14 OPERATION, CONT. A timer countdown will be displayed to indicate the progress of the disinfection cycle. 00 : 08 Disinfection Process Countdown The display will indicate this when the cycle is complete: Disinfection Process Complete If you step off before the cycle is complete (or the system detects an issue with the shutter motors, the cover safety interlock or placement of shoes), the display will indicate this: Disinfection Process Interrupted 3300-0196-0M Rev A 05/16...

  • Page 15: Care And Cleaning Instructions

     Use only HealthySole Model HS-PLUS UVC replacements. Refer to Replacement Parts section.  Damage will occur if recommended lamps are substituted. REPLACEMENT PARTS Contact the Detecto Parts Department for replacement parts. (800) 641-2045 / parts@cardet.com. ITEM PART NO. QTY.

  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE SOLUTIONS System does not power on CHECK AC POWER  Ensure power switch is in ON position. Is the AC power cord fully inserted into the system base and wall receptacle? Check wall receptacle for proper AC power.
  • Page 17 TROUBLESHOOTING, CONT. PROBLEM POSSIBLE SOLUTIONS Lamps turn on but are dim MAKE SURE DUST SHIELD IS CLEAN  Follow the steps outlined in the SERVICE AND MAINTENANCE, Dust Shield Maintenance section to ensure the Dust Shield is not cloudy or dirty. IMPORTANT: If Dust Shield cannot be cleaned, replace Dust Shield immediately.

  • Page 18: Service And Maintenance

    SERVICE AND MAINTENANCE Only qualified service personnel should service system. Always disconnect power before servicing system. Only use HealthySole® replacement lamps and Dust Shields. Third party replacement parts will cause damage to system and will void all warranties. Dust Shield Maintenance The Dust Shield must be kept clean, DRY, and free from dirt and debris or the germicidal effect will be greatly diminished.
  • Page 19 SERVICE AND MAINTENANCE, CONT. Lamp Maintenance During replacement of the Dust Shield, it is recommended to check the life remaining on the UV lamps. Perform the following steps to check the UV lamps: 1. With the system base cover off, apply power to the system by switching the power switch located in the base of the unit to the ON position.
  • Page 20 SERVICE AND MAINTENANCE, CONT. Lamp Replacement NOTE: BOTH UV LAMPS MUST BE REPLACED AFTER 1 YEAR OF USE.  Disconnect power and allow time for lamps to cool before servicing or removing them.  NEVER handle UV lamps without protective gloves. ...
  • Page 21 SERVICE AND MAINTENANCE, CONT. Lamp Replacement, Cont. 18. Connect each wire from the new lamps to the ballast Output terminal observing the wire colors. 19. To terminate a wire, using the small flat blade screwdriver, press down on the release bar for the terminal and insert the wire into the opening.
  • Page 22 SERVICE AND MAINTENANCE, CONT. Ballast Replacement 1. Switch the ON/OFF switch to OFF and unplug the AC power cord. 2. Remove the 4 screws (2 on each side) securing the system base cover. 3. Lift the base cover slightly off the base to gain access to the toe sensor cable connector and disconnect the cable.

  • Page 23: Statement Of Limited Warranty

    DETECTO warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of one (1) year from date of shipment. DETECTO shall be the sole judge of what constitutes a defect.
  • Page 24 PO Box 151, Webb City, MO 64870 Telephone: 417-673-4631 FAX: 417-673-5001 Technical Support: 866-254-8261 Printed in USA E-mail: tech@cardet.com 3300-0196-0M Rev A 05/16 3300-0196-0M Rev A 05/16...
