Detecto 8432-CH Owner's Manual

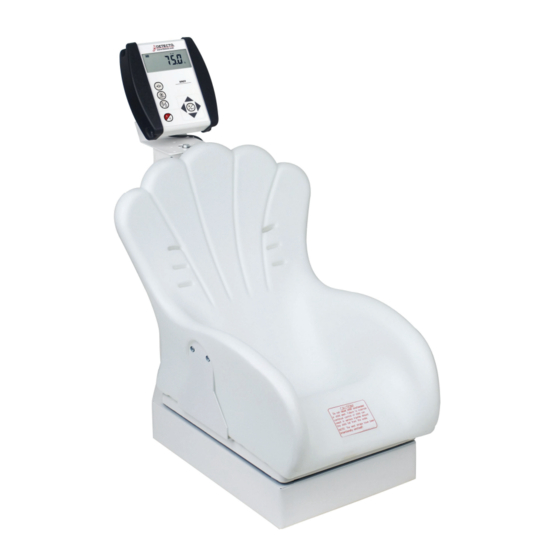

Pediatric scale with inclined chair seat
Hide thumbs Also See for 8432-CH:
Table of Contents

Advertisement

Quick Links

Download this manual

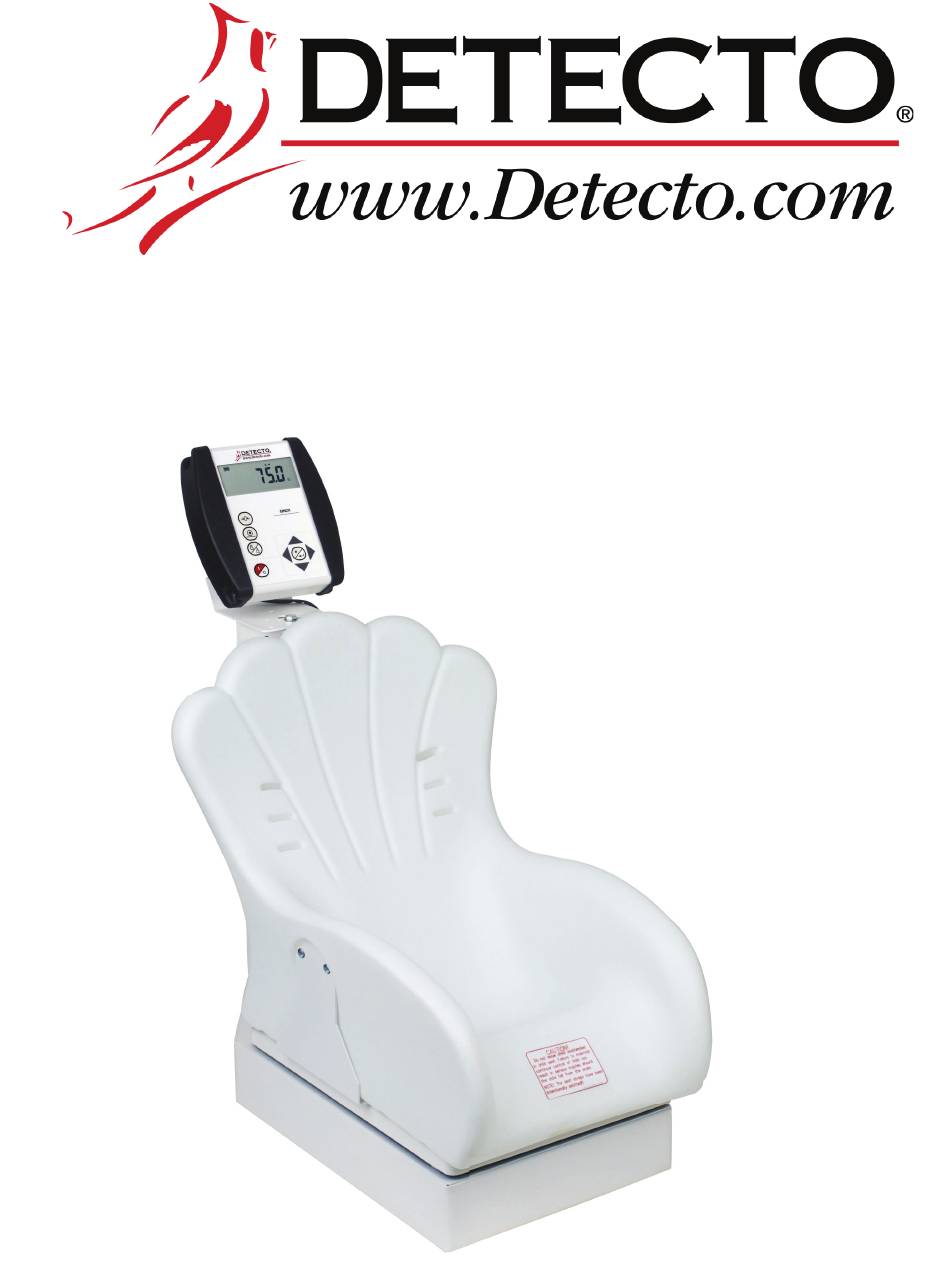

Model 8432-CH
PEDIATRIC SCALE
with Inclined Chair Seat
Owner's Manual
1
8525-M316-O1 Rev B 8435 Owner's

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8432-CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Detecto 8432-CH

Summary of Contents for Detecto 8432-CH

  • Page 1 Model 8432-CH PEDIATRIC SCALE with Inclined Chair Seat Owner’s Manual 8525-M316-O1 Rev B 8435 Owner’s...
  • Page 2 8525-M316-O1 Rev B 8435 Owner’s...

  • Page 3: Proper Disposal

    You may find the booklet "How to Identify and Resolve Radio TV Interference Problems" prepared by the Federal Communications Commission helpful. It is available from the U.S. Government Printing Office, Washington, D.C. 20402. The stock No. is 001-000-00315-4. 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 4: Specifications

    INTRODUCTION The Detecto Model 8432-CH Pediatric Scale with Inclined Chair Seat is ideal for use in health clinics and medical practices for weight measurement of infants and tots. The scale has an easy to clean seashell-shaped plastic seat that can be mounted in three different directions for optimal comfort of the child, and a durable, sturdy enameled steel scale base.

  • Page 5: Scale Assembly

    2. Using a Phillips screwdriver, install the eight screws and washers to secure the column to the scale base as shown in Figure 2. Figure 2. - Install eight screws and washers to secure column to scale base 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 6: Indicator Installation

    Pull down on the indicator to secure it to the bracket. The spring plunger will lock the indicator to the bracket. See Figures No. 3, 4, and 5. Spring Plunger Figure No. 4 Scale Cable Figure No. 3 AC Power Adapter RS232 Spring Port Plunger Release Figure No. 5 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 7: Child Seat Installation

    Part No. Description #1 Philips 6100-0025 Child Seat, White 0033-C323-08 Gimbal for 8432-CH Child Seat 6021-1423 1/4-20 X 1/2” Truss Head Screws 6021-1553 #10-24 X 1/2” Truss Head Screws 1. Remove child seat and hardware kit (plastic bag with screws) from box.
  • Page 8 7. After the gimbal is installed, position the child seat in the gimbal and attach with the #10-24 x 1/2" screws (two screws on each side of the gimbal). 8. Periodically re-check the screws for tightness. 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 9: Ac Power Adapter

    It will take approximately 8 to 10 hours to fully recharge the batteries in the display. Charging the batteries for more than 10 hours will not damage them. NOTE: The indicator may be operated while the batteries are charging. 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 10: Battery Installation/Replacement

    Refer to the steps on page 3. 12. The scale is now ready for operation. For more information on setup and operation of the indicator, see the 750 Owner’s Manual (8555-M483-O1). Figure No. 8 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 11: Operation

    6. When the weight is stable (STABLE annunciator will turn on), read the weight display. 7. If a printer is connected to the scale, press the PRINT key to print a ticket. 8. Remove the child from the child seat. 8525-0377-0M Rev A 8432-CH Owner’s...
  • Page 12 8525-0377-0M Rev A 8432-CH Owner’s...
  • Page 13 REPLACEMENT PART IDENTIFICATION Item Qty. Part Number Description 0033-0532-0A TOP PLATE ASSY 0033-0533-0A PLATFORM ASSY 0033-0534-0A LOAD CELL ASSY 0033-0546-08 BASE FEET DIGITAL WEIGHT INDICATOR Not Shown 8525-0377-0M Rev A 8432-CH Owner’s...

  • Page 14: Statement Of Limited Warranty

    (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • Page 15 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
  • Page 16 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 8525-0377-0M Rev A 04/20 8525-0377-0M Rev A 8432-CH Owner’s...
