Installer's Guide
BAYAIR30AVENTA
Model:
Concentric Vent Kit for Condensing Furnaces
For use with *UH, *DH, M95, *UY, *DY, *UX, *DX, *UC, *DC, S9, A9, and L9 furnaces
* may be A or T
ALL phases of this installation must comply with NATIONAL, STATE and LOCAL CODES.
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service
information pack upon completion of work.
NOTE: Canada requires that all Category IV heating
appliances use venting material that meets ULC S636.
This kit does not meet these requirements and cannot be
used.
!
WARNING
INSTALLATION OR REPAIRS MADE BY UNQUALIFIED
PERSONS CAN RESULT IN HAZARDS TO YOU AND
OTHERS. INSTALLATION MUST CONFORM WITH LOCAL
CODES OR, IN THE ABSENCE OF LOCAL CODES, WITH
CODES OF THE COUNTRY HAVING JURISDICTION. THE
INFORMATION CONTAINED IN THESE INSTRUCTIONS
IS INTENDED FOR USE BY A QUALIFIED SERVICE
TECHNICIAN FAMILIAR WITH SAFETY PROCEDURES
AND EQUIPPED WITH THE PROPER TOOLS AND TEST
INSTRUMENTS. FAILURE TO CAREFULLLY READ AND
FOLLOW ALL INSTRUCTIONS IN THESE INSTRUCTIONS
CAN RESULT IN FURNACE MALFUNCTION, PROPERTY
DAMAGE, PERSONAL INJURY AND/ OR DEATH.
NOTE: Codes and local utility requirements governing the
installation of gas fired equipment, wiring, plumbing, and
flue connections must be adhered to. In the absence of lo-
cal codes, the installation must conform with the National
Fuel Gas Code NFPA 54/ANSI Z223.1 "latest edition". The
latest code may be obtained from the American Gas Asso-
ciation 400 N. Capitol St., NW, Suite 450, Washington D.C.
20001, 1-855-999-9870 or
NOTE: Read the Installer's Guide before starting the
installation. Refer to the Furnace Installer's Guide for
equivalent vent lengths. The BAYAIR30AVENTA is 5
equivalent feet.
INTRODUCTION
This Installer's Guide covers installation of the concentric
vent kit on all gas fired direct vent condensing furnaces.
!
WARNING
INSTALLING AND SERVICING HEATING EQUIPMENT
CAN BE HAZARDOUS DUE TO GAS AND ELECTRICAL
COMPONENTS. ONLY TRAINED PERSONNEL SHOULD
INSTALL OR SERVICE HEATING EQUIPMENT. FAILURE
TO FOLLOW THIS WARNING CAN RESULT IN PRODUCT
DAMAGE, PERSONAL INJURY AND/OR DEATH.
18-CH34D1-8B-EN
www.aga.org.
18-CH34D1-8B-EN

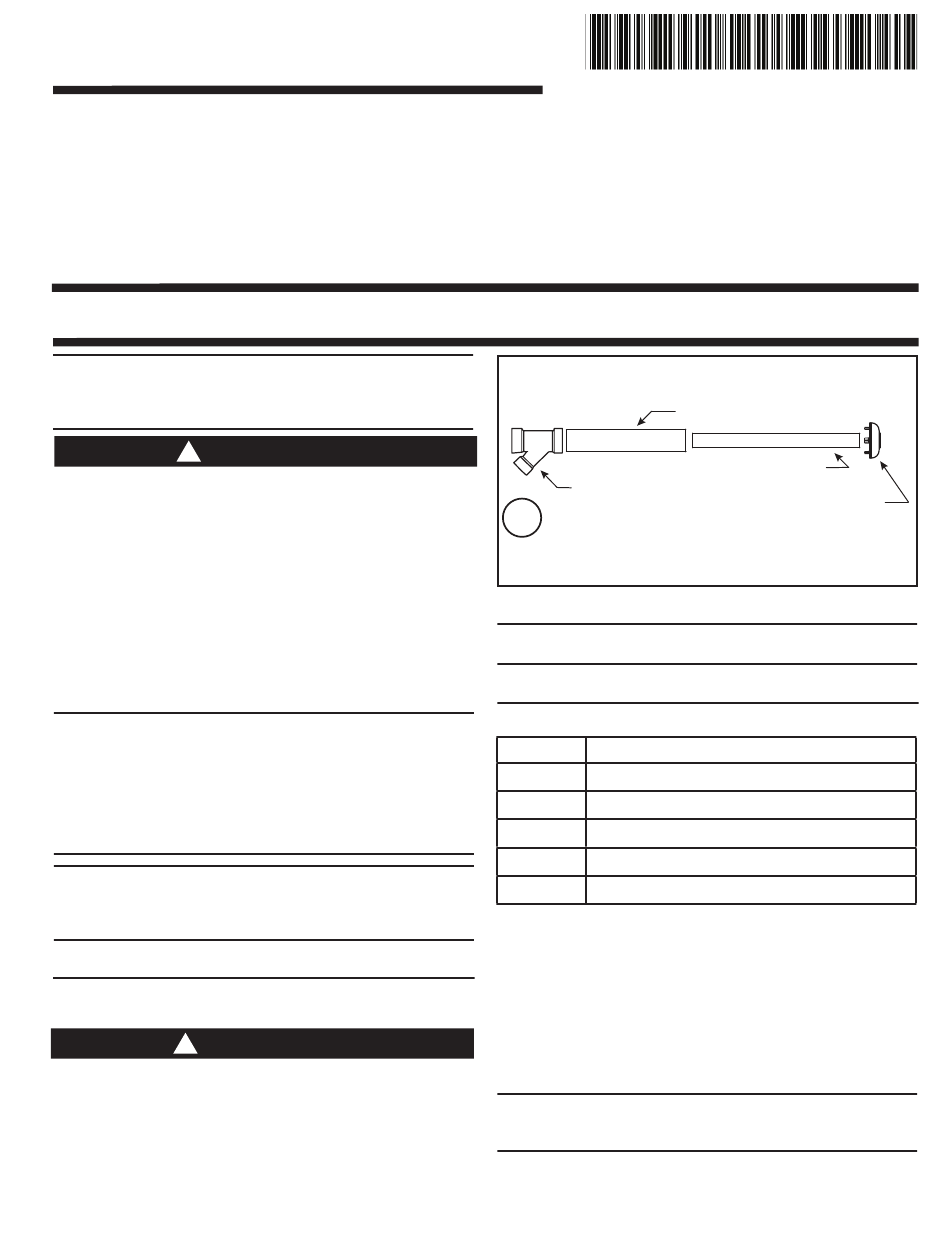

WYE- CONCENTRIC FITTING
1
CONCENTRIC VENT KIT
DO NOT APPLY TO A NON-CONDENSING FURNACE.
NOTE: If these instructions differ from those packaged
with the furnace, follow these instructions.
DESCRIPTION AND USAGE
Kit Contents:
Qty.
1
Rain cap
1
4" Diameter Pipe, 23.75" Long
1
2-1/2" Diameter Pipe, 33.12"
1
Wye concentric Fitting
4
#8 SS Pan head screws
Only one vent kit per each furnace is allowed.
Vent kit is for 2, 2-1/2 or 3 in. diameter pipe
systems, (See Figures 3, 4, 5, and 6 for the different
applications). Both the combustion air and vent pipes
must attach to the vent kit. The vent kit must terminate
outside of the structure and should be installed vertically
as shown in Figures 3 and 4, or horizontal as shown in
Figures 5 and 6.
NOTE: The roof vent location is preferred since it is less
susceptible to damage, has reduced chances to intake
contaminants, and vent vapors are less visible.
4" PIPE
2-1/2" PIPE
RAIN CAP
Description
1
