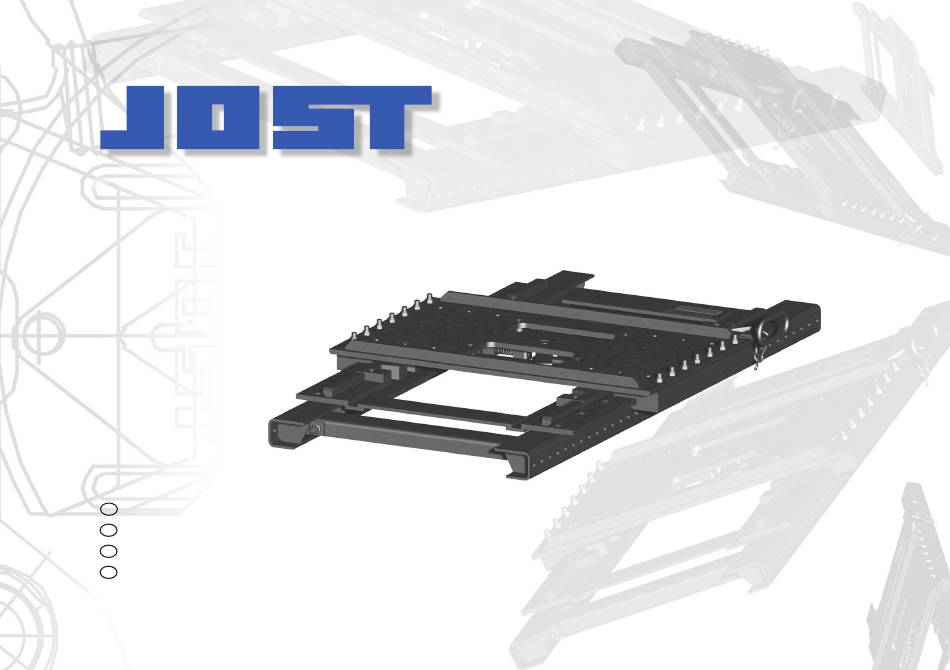

- Page 1 Montage- und Betriebsanleitung VERSCHIEBEEINRICHTUNG BAUREIHE EV HD-85 Installation and operating instructions Instructions de montage et de d’utilisation Istruzioni per il montaggio e l’uso Instrucciones de montaje y funcionamiento...
- Page 2 ZDE 199 004 105 - 04/2024 EVHD85...
-
Page 3: Table Of Contents
General information ContentsPage The JOST EVHD85 type slider unit is a vehicle coupling part requiring 1 Safety instructions component type approval that must meet stringent safety criteria. Modifications of any kind will render both the warranty and the type 1.1 Safety instructions for operation approval void and will therefore also invalidate the vehicle operating 1.2 Safety instructions for maintenance... -
Page 4: Safety Instructions
“Installation” section. instructions continue to apply and must be followed. JOST slider units must be installed by trained personnel in The following safety instructions apply to operation, maintenance and installation. Safety instructions directly linked to each activity are listed suitable workshops. -
Page 5: Intended Use

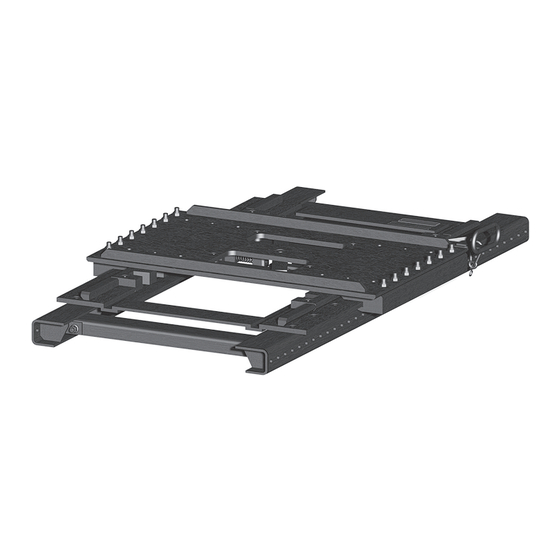

They apply to intended use pursuant to ECE Directive R55. The JOST type EVHD85 slider unit is built in accordance with ECE Regulation R55 Class J and may only be used in conjunction with Class G50 or Class S fifth wheel couplings. -
Page 6: Design
T + R - U Example calculation: T = 36.5 t R = 100 t U = 26 t 0,6 x 36,5 x 100 D = 9,81 x kN = 194,4 kN 36,5 + 100 - 26 ZDE 199 004 105 - 04/2024 EVHD85... - Page 7 Maximum imposed load U in t ECE approval number Article no. EC approval number Type Class Serial no. Test mark and Type Slider unit Imposed load [t] D value [kN] approval number 55R-01 1902 EVHD 85 EVHD 85 EVHD85 ZDE 199 004 105 - 04/2024...
-
Page 8: Operation
Engage the brake of the semi-trailer. Move the tractor unit in the required direction of the fifth wheel position. ZDE 199 004 105 - 04/2024 EVHD85... -
Page 9: Maintenance
Lubricants Use JOST high-performance lubricant (Art. No. SKE 005 670 000) to lubricate the moving parts. EVHD85 ZDE 199 004 105 - 04/2024... -
Page 10: Installation
Hexagon flange bolt EN 1665 - M14x45 - 10.9 and vehicle chassis – a minimum of 68 screws in total. Slider unit We recommend the use of JOST fastening kits (see JOST catalogue for Hexagon flange nut EN 1664 - M14 - 10 order numbers). -
Page 11: Installing The Fifth Wheel Coupling
Bolt Install the fifth wheel coupling as per the manufacturer’s instructions. We recommend the use of JOST fastening kits for JOST fifth wheel couplings (see JOST catalogue for order numbers). For fastening the fifth wheel coupling to the slider unit, use hexagon head bolts (1) as per the fifth wheel coupling man- ufacturer’s specifications. - Page 12 Siemensstraße 2, D-63263 Neu-Isenburg, Telefon +49 6102 295-0, Fax +49 6102 295-298, www.jost-world.com ZDE 199 004 105 04/2024...
