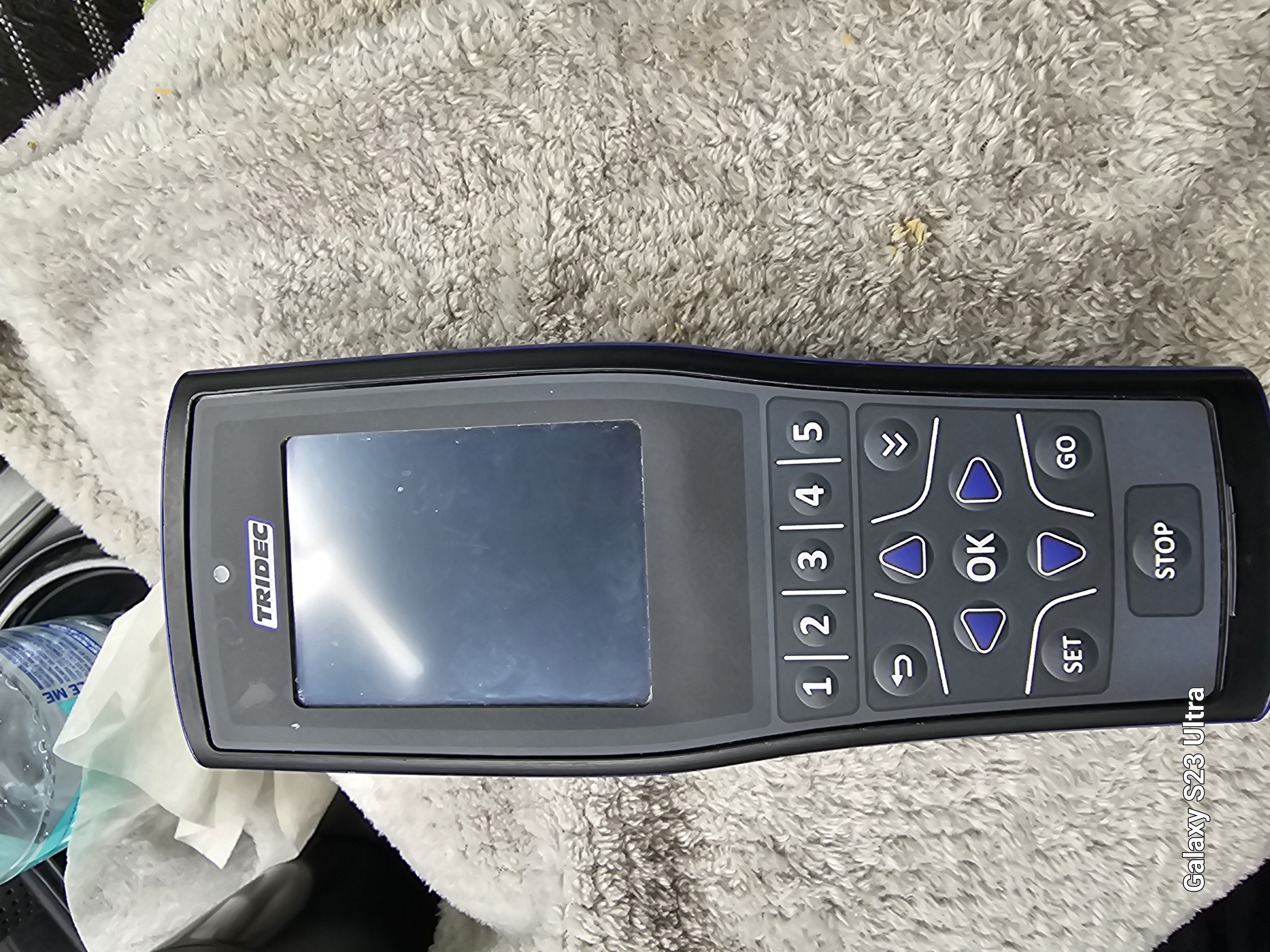

Where can I buy a replacement charging cord for the tridec remote.

User image 68505913e14b7
0

Subscribe to Our Youtube Channel

Related Manuals for jost TriDec EF-S

Summary of Contents for jost TriDec EF-S

  • Page 1 EF-S system User manual Release (07/2020)

  • Page 2: Table Of Contents

    User manual 2300 EF-S system Table of contents Foreword 1 Description 1.1 Operation 1.2 Components 1.3 Battery charger 1.4 Warning light 2 Remote control 2.1 Function keys 2.2 Replacing the batteries 2.3 Turning on and off 2.3.1 Connected to the 12 V or 24 V connection 2.3.2 Not connected to the 12 V or 24 V connection 2.4 Selecting the language 2.5 Screen brightness...
  • Page 3 User manual 2300 EF-S system 3.7 To the left (crab steering) 3.8 To the right (crab steering) 3.9 Calibrating 3.10 Turning off the EF-S system 3.11 Message history 4 Messages 4.1 Types of messages 4.2 Information messages 4.3 Warning messages 4.4 Error messages 5 Putting into service 5.1 Vehicle registration and delivery...
  • Page 4 Manufacturer: TRIDEC, Transport Industry Development Centre B.V. Address : Ekkersrijt 6030, 5692 GA Son, the Netherlands hereby declares that the product: Model : EF-S system Product number : 613977 / 613996 : 613975 / 613997 / 613976 / 617403 Commercial name : EF-S system to which this declaration refers, is in compliance with the pro- visions stipulated in the following guideline: ECE Regulation 10, Rev.5...

  • Page 5: Foreword

    User manual 2300 EF-S system Foreword This guide is intended for drivers and/or other EF-S system users and contains the necessary TRIDEC information regarding the use of the EF-S system. This User manual must always be stored in the vehicle. A separate maintenance and repair manual for service technicians is available on the web- site: www.tridec.com...
  • Page 6 User manual 2300 EF-S system Validity and copyright: No part of this document may be reproduced and/or published by print, photocopy, microfilm or any other manner whatsoever without written consent from Tridec. The diagrams and spe- cifications have been diligently compiled and we cannot be held responsible for any inac- curacies.

  • Page 7: Description

    User manual 2300 EF-S system 1 Description The following paragraphs contain information about the components that make up the EF-S system and how the system works. 1.1 Operation The EF-S system is a total system developed by TRIDEC. Its purpose it to steer trailers/semi- trailers with one or more steered axles.
  • Page 8 User manual 2300 EF-S system During automatic steering, the angular rotation of the wheels of the trailer/semi-trailer is 100% up to a vehicle speed of 30 km/h . That means that the steering angles of (see Figure 1-2) the trailer’s wheels are exactly the same as the pre-set angular rotations. The angular rota- tions reduce at a speed of 30-50 km/h.
  • Page 9 User manual 2300 EF-S system Figure 1-3 Figure 1-4 Part no.: 162014 EN-1 Release 07/2020...

  • Page 10: Components

    User manual 2300 EF-S system 1.2 Components The EF-S system consists of the following main components: Figure 1-5 1. Generator box 10. Accumulator 2. Tank/filter box 11. Bluetooth module 3. Battery charger 12. Signaal lamp 4. Steering/centring cylinder 13. Stuur-/ centreercilinder SRE 5.

  • Page 11: Battery Charger

    User manual 2300 EF-S system 1.3 Battery charger The batteries for the EF-S system are charged by the generator via the NATO connection with a charging current of no more than 45 A when the tractor unit’s engine is running. Figure 1-6 The intelligent charger measures the temperature of the batteries.

  • Page 12: Warning Light

    User manual 2300 EF-S system 1.4 Warning light The EF-S system has a warning light. This light has three colour areas: Orange White Each colour area has a separate function and can light up. Figure 1-7 The white warning light indicates that the EF-S system does not have any faults and is ready for use.
  • Page 13 User manual 2300 EF-S system Figure 1-8 Part no.: 162014 EN-1 Release 07/2020...

  • Page 14: Remote Control

    User manual 2300 EF-S system 2 Remote control For safetyreasons, moving parts must remain in view of the oper- ator when the remote controlis used. The remote control is part of the EF-S system. The EF-S system can be operated (see Figure 2-1) with the remote control via a wireless connection (Bluetooth) or via the synchronisation cable.
  • Page 15 User manual 2300 EF-S system The following accessories are available for the remote control: A synchronisation cable to synchronise the remote control with a computer. A holde, also charger. A charging cable. This cable can be used to connect the remote control to a 12 V or 24 V socket.

  • Page 16: Function Keys

    User manual 2300 EF-S system 2.1 Function keys In addition to a screen, the remote control also has a number of keys. Use these keys to activate functions or to select menus. Figure 2-3 No. Item Description Screen Navigate to the next page in the menu. Activate selected functions.

  • Page 17: Replacing The Batteries

    User manual 2300 EF-S system 2.2 Replacing the batteries When the batteries have reached the end of their service life, the following message is dis- played at the bottom of the screen while charging. Figure 2-4 The batteries may only be replaced with rechargeable NiMH (Nickel Metal Hydride) AA-size batteries with a recommended capacity of 2000 mAh.
  • Page 18 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...
  • Page 19 User manual 2300 EF-S system Charging the batteries The batteries in a remote control can be charged in the following ways: Using the supplied holder (this is connected to a power source). Using the synchronization cable, which can be connected to the distribution box in the generator box.
  • Page 20 User manual 2300 EF-S system The following information is displayed on the screen when the remote control is connected to a power source ( in. 9V ). Figure 2-6 When the remote is turned off and connected to a power source, the following message will appear on the screen Part no.: 162014 EN-1 Release 07/2020...

  • Page 21: Turning On And Off

    User manual 2300 EF-S system 2.3 Turning on and off The way in which the remote can be turned on depends on whether it is connected to the tractor unit’s 12 V or 24 V connection or not. 2.3.1 Connected to the 12 V or 24 V connection 1.
  • Page 22 User manual 2300 EF-S system The EF-S system starts the shutdown procedure (it can be delayed) when the ignition key is turned to position “0”. This takes some time to complete. Vari- ous messages are displayed on the screen. The remote control is turned off after the shutdown procedure has been completed.

  • Page 23: Not Connected To The 12 V Or 24 V Connection

    User manual 2300 EF-S system 2.3.2 Not connected to the 12 V or 24 V connection Procedure: 1. Carry out the instructions given below to turn on the remote control. 2. Carry out the instructions given below to turn off the remote control. Part no.: 162014 EN-1 Release 07/2020...
  • Page 24 User manual 2300 EF-S system Connect the remote controlto the charger after use. Note: The EF-S system is not turned off if the remote controlis turned off while it is not connected to the voltage source (12Vor 24 V)! The orange warning light is lit to indicate that the remote control is turned off (see Figure 2-7) Figure 2-7...

  • Page 25: Selecting The Language

    User manual 2300 EF-S system 2.4 Selecting the language The remote control’s default start-up language is order specific. Other languages can be selec- ted manually. 1. Follow the procedure below to select English. Procedure - Connected to the tractor unit’s 12 V or 24 V connection (then continue with, Not connected to the 12V-24V connection of the tractor step 4).
  • Page 26 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...

  • Page 27: Screen Brightness

    User manual 2300 EF-S system 2.5 Screen brightness 1. Follow the procedure below to adjust the screen brightness. Procedure - Connected to the tractor unit’s 12 V or 24 V connection (Then continue with, Not con- nected to the 12V-24V connection of the tractor step 4). - Not connected to the tractor unit’s 12 V or 24 V connection.
  • Page 28 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...

  • Page 29: Configuring Key Sounds

    User manual 2300 EF-S system 2.6 Configuring key sounds 1. Carry out the instructions given below to turn the key sounds on or off. The “*” sign indicates whether the key sounds are turned on or off. Procedure - Connected to the tractor unit’s 12 V or 24 V connection (Then continue with, Not con- nected to the 12V-24V connection of the tractor step 4).
  • Page 30 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...

  • Page 31: Connecting To A Computer

    User manual 2300 EF-S system 2.7 Connecting to a computer The remote control can be connected to the main control unit in two ways: 1. Wireless via Bluetooth. 2. Via the synchronisation cable. icon is displayed on the screen if there is a Bluetooth connection between the remote control and the main control unit.

  • Page 32: Registering A New Remote Control

    User manual 2300 EF-S system The signal lamp lights up orange. The corresponding message is only visible for the after- sales service department. Figure 2-8 2.7.2 Registering a new remote control Procedure: 1. Carry out the following to register the remote control. Part no.: 162014 EN-1 Release 07/2020...
  • Page 33 User manual 2300 EF-S system The trailer/semi-trailer must be coupled and fully connected. Part no.: 162014 EN-1 Release 07/2020...

  • Page 34: Stop Button

    User manual 2300 EF-S system 2.8 Stop button A stop function is included in the remote control program .As soon as the corresponding but- is pressed, nothing happens, in a later version all running processes will be stopped. The button is NOT an géén The button is not an EMERGENCY STOP.

  • Page 35: Icons On The Display

    User manual 2300 EF-S system 2.9 Icons on the display Specific information is displayed on the screen by icons. The meaning of each of these icons is described in the table. Afb.2-9 Icons and texts Positie Icoon Beschrijving ABS/EBS signal is active. No ABS/EBS Main menu Text line where active menu is visible...
  • Page 36 User manual 2300 EF-S system Positie Icoon Beschrijving Pump freq. Speed ​ ​ o f the pump Shutting down The EF-S system switches off Steer.angles The angle the wheels make to the steered axle Go back 1 step in the menu Battery fully charged Battery partially charged Battery empty...

  • Page 37: Using The Ef-S System

    User manual 2300 EF-S system 3 Using the EF-S system The EF-S system is turned on when the ignition key is placed in the ignition position. First, thetractor unit’s EBS system is activated. This system then turns on both the EF-S system and the battery charger.
  • Page 38 User manual 2300 EF-S system The EF-S system starts in two phases: 1. The hydraulic system is pressurized. 2. The system is activated. During the first phase, the wheels of the trailer/semi-trailer do not move. During the second phase, the wheels can move. Always select the “Automatic steering”function when driving on a (see "Automatic steering"...

  • Page 39: Coupling

    User manual 2300 EF-S system 3.1 Coupling There is a sticker on the trailer/semi-trailer . This sticker contains information on (see Figure 3-1) how to couple the trailer/semi-trailer to the tractor unit. Figure 3-1 1. Always couple and uncouple the trailer/semi-trailer while it is in a straight line with the tractor unit.

  • Page 40: Main Menu

    User manual 2300 EF-S system 3.2 Main menu The main menu of the remote control of the EF-S system has four menu options: Steering Calibration System info Settings The diagram shows the main menu of the EF-S system’s operating system. (see Figure 3-2) Figure 3-2 1.

  • Page 41: Automatic Steering

    User manual 2300 EF-S system 3.3 Automatic steering Carry out the following procedure to activate automatic steering of the trailer/semi-trailer. The wheels of the steered axles rotate through an angle that is dependent on the towing angle. If an error occurs while driving in a bend, the steering behavior willbe different and this willaffect the covered path of the semi-trailer / trailer combination.
  • Page 42 User manual 2300 EF-S system The trailer’s wheels are steered automatically after the button is pressed. It is not necessary to keep the button pressed! Part no.: 162014 EN-1 Release 07/2020...

  • Page 43: To The Straight-Ahead Position (Centring)

    User manual 2300 EF-S system 3.4 To the straight-ahead position (centring) Carry out the following procedure after the steering angle of the EF-S system has been manu- ally altered or when steering is not desired. The wheels turn back to the straight-ahead pos- ition.
  • Page 44 User manual 2300 EF-S system Select “Autom. steering” when the articulated vehicle is driven again. Part no.: 162014 EN-1 Release 07/2020...

  • Page 45: To The Left (Ackermann)

    User manual 2300 EF-S system 3.5 To the left (Ackermann) If this function is activated, the trailer/semi-trailer steers to the left according to the Ack- ermann principle. In that case, the imaginary plumb lines go through the wheels of the artic- ulated vehicle through a point that is to the left of the articulated vehicle.
  • Page 46 User manual 2300 EF-S system If the button remains pressed, the angular rotation of the wheels is increased until the maximum permissible steering angle is reached. Manual steering of the wheels of the trailer/semi-trailer is possible up to a speed of 15 km/h. At higher speeds, the wheels of the steered axles are steered automatically to correspond to the angular rotation of the kingpin.

  • Page 47: To The Right (Ackermann)

    User manual 2300 EF-S system 3.6 To the right (Ackermann) If this function is activated, the trailer/semi-trailer steers to the right according to the Ack- ermann principle. In that case, the imaginary plumb lines go through the wheels of the artic- ulated vehicle through a point that is to the right of the articulated vehicle.
  • Page 48 User manual 2300 EF-S system If the button remains pressed, the angular rotation of the wheels is increased until the maximum permissible steering angle is reached. Manual steering of the wheels of the trailer/semi-trailer is possible up to a speed of 15 km/h. At higher speeds, the wheels of the steered axles are steered automatically to correspond to the angular rotation of the kingpin.

  • Page 49: To The Left (Crab Steering)

    User manual 2300 EF-S system 3.7 To the left (crab steering) If this function is activated, the trailer/semi-trailer steers to the left. In the Crab Steering function, the imaginary plumb lines run parallel through the wheels of the trailer/semi- trailer. The angular rotation of the wheels on the steered axles is the same. Depending on the customer’s requirements, left and right can be swapped over.
  • Page 50 User manual 2300 EF-S system If the buttons remain pressed, the angular rotation of the wheels is increased until the maximum permissible steering angle is reached. Manual steering of the wheels of the trailer/semi-trailer is possible up to a speed of 15 km/h. At higher speeds, the wheels of the steered axles are steered automatically to correspond to the angular rotation of the kingpin.

  • Page 51: To The Right (Crab Steering)

    User manual 2300 EF-S system 3.8 To the right (crab steering) If this function is selected, the trailer/semi-trailer steers to the right. In the Crab Steering function, the imaginary plumb lines run parallel through the wheels of the trailer/semi- trailer. The angular rotation of the wheels on the steered axles is the same. Depending on the customer’s requirements, left and right can be swapped over.
  • Page 52 User manual 2300 EF-S system If the button remain pressed, the angular rotation of the wheels is increased until the maximum permissible steering angle is reached. Manual steering of the wheels of the trailer/semi-trailer is possible up to a speed of 15 km/h. At higher speeds, the wheels of the steered axles are steered automatically to correspond to the angular rotation of the kingpin.

  • Page 53: Calibrating

    User manual 2300 EF-S system 3.9 Calibrating If the trailer/semi-trailer is not in a straight line with the tractor unit when driving, calibrate the trailer/semi-trailer using the “Calibrate” function. When the button is pressed, the wheels move to the straight-ahead position and the sensor values are zeroed. The calibration can onlybe performed at a speed of less than 15 km/h.
  • Page 54 User manual 2300 EF-S system Drive in a straight line at walking pace. Calibration is not possible at speeds of more than 15 km/h. A message is displayed on the screen if the button in the “Calibration” menu is pressed at a speed of more than 15 km/h.

  • Page 55: Turning Off The Ef-S System

    User manual 2300 EF-S system 3.10 Turning off the EF-S system During normal use, the EF-S system is turned off when the tractor unit’s ignition switch is turned to position “0”. A message is displayed on the screen . The warning light (see Figure 3-8) is lit during the EF-S system’s shutdown procedure.
  • Page 56 User manual 2300 EF-S system The remote control is turned off whether it is used wirelessly or with a cable. It can take some time for the EF-S system to be turned off. Wait until the warning light is no longer lit. Part no.: 162014 EN-1 Release 07/2020...

  • Page 57: Message History

    User manual 2300 EF-S system 3.11 Message history The warning messages and error messages that have been active during operation of the EF- S system as a result of system errors can be read via the remote control. To do so, use the button and the button.

  • Page 58: Messages

    User manual 2300 EF-S system 4 Messages An explanation of the messages that may be displayed on the remote control’s screen is given below. 4.1 Types of messages The messages that can be displayed on the screen during operation can be divided into three different categories.
  • Page 59 User manual 2300 EF-S system Restarting the system using the button on the remote control Note: The EF-S system can onlybe restarted using the button when an error message is displayed. 1. Follow the procedure given below. Figure 4-2 Restarting the system using the main switch on the generator box 1.
  • Page 60 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...

  • Page 61: Information Messages

    User manual 2300 EF-S system 4.2 Information messages The information messages explained in this section provide information about the processes that are performed and the status of these processes, i.e. whether the processes are active or have been completed. Code: 01190 Message: Calibration successful...
  • Page 62 User manual 2300 EF-S system Code : 01230 Colour: Orange Tabel-3 Information messages Code: 01240 Message: EF-S system is turning off This message is displayed on the remote control after the tractor Description: unit’s ignition switch has been turned to the “0” position. Colour: White Information messages...
  • Page 63 User manual 2300 EF-S system Code: 01280 Colour: Green Information messages Code: 01290 Message: Press GO to activate steering. This message is displayed on the remote control after the start-up Description: procedure has been completed. Colour: Green Information messages Code: 01300 Message: Wheels not aligned.
  • Page 64 User manual 2300 EF-S system Code: 10021 Message: Speed too high. Calibration is not possible. The sensors must be calibrated when the trailer/semi-trailer does not follow in line with the tractor unit. Drive in a straight line at a speed of less than 20 km/h (make sure the tractor unit and trail- Description: er/semi-trailer are aligned as much as possible) and activate the “Calibration”...

  • Page 65: Warning Messages

    User manual 2300 EF-S system 4.3 Warning messages Warning messages are activated if there is a problem in the EF-S system that must be rectified as quickly as possible by the service workshop. Code: 10010 Message: No data transfer 1. The distance between the Bluetooth module and the remote control is too great.
  • Page 66 User manual 2300 EF-S system Code: 10550 - 10660 Description: Do not drive. The EF-S system turns itself off. The EF-S system is turned off. Follow the instructions given on Description: the remote control. Colour: Warning message Code: 10560 Message: Towing angle too large.
  • Page 67 User manual 2300 EF-S system Code: 10620 - 10621 - 10622 - 10623 - 10624 - 10625 Message: No steering. Call the Service department. Contact the service workshop. The wheels of the trailer/semi- Description: trailer cannot be steered. The articulated vehicle can still be driven. Colour: Orange Delete...
  • Page 68 User manual 2300 EF-S system Code: 20370 Message: No steering. The batteries do not provide a sufficient voltage. Charge the bat- Description: teries. The articulated vehicle can still be driven. Colour: Orange Delete Press Warning message Code: 30680 Description: No steering. Call the Service department. Description: The articulated vehicle can still be driven.

  • Page 69: Error Messages

    User manual 2300 EF-S system 4.4 Error messages An error message is activated when there is a problem in the EF-S system that must be rectified IMMEDIATELY in a service workshop. The message remains active untilthe problem has been rectified and the EF-S has been restarted.
  • Page 70 User manual 2300 EF-S system 30060 - 30061 - 30080 - 30081 - 30100 - 30101 - 30120 - 30121 - 30130 - 30131 - 30140 - 30141 - 30142 - 30143 - 30144 - 30145 - 30150 - 30151 - 30160 - 30161 - 30170 - 30171 - 30180 - 30181 - 30190 - 30191 - 30200 - 30201 - 30210 - 30211 - 30220 - 30221 - 30230 - 30231 - 30240 - 30250 - 30251 - 30270 - 30271 - 30290 - 30291 - 30211 -...
  • Page 71 User manual 2300 EF-S system Code: 30590 Message: The oil temperature is too high. Description: Allow the oil to cool. The trailer/semi-trailer cannot be steered. Colour: Delete: After repair, press until code 10400 is displayed. Error message Part no.: 162014 EN-1 Release 07/2020...

  • Page 72: Putting Into Service

    User manual 2300 EF-S system 5 Putting into service The following paragraphs contain information regarding putting the EF-S system into service. 5.1 Vehicle registration and delivery All associated documentation (vehicle registration certificate, CE declaration, user guide, service manual) for the relevant Tritronic system should be handed to the cli- ent upon delivery of a trailer with a EF-S system.

  • Page 73: Safety & Environment

    User manual 2300 EF-S system 6 Safety & environment The following paragraphs contain information regarding safe use of the EF-S system. It also describes what should be done when the EF-S system reaches the end of its lifespan. Part no.: 162014 EN-1 Release 07/2020...

  • Page 74: Safety While Operating

    User manual 2300 EF-S system 6.1 Safety while operating Operating a trailer with a EF-S system installed may involve some possible risks. Con- sult the relevant regulations (for example: road traffic regulations, company pro- cedures, health and safety regulations) which are applicable to the country where the trailer will be used.

  • Page 75: Environment

    User manual 2300 EF-S system 6.2 Environment The EF-S system must be dismantled and disposed of in accordance with local and national regulations once it has reached the end of its lifespan, regardless of the cause. Contact your local or national public services, waste management authority or the supplier you purchased the product from for more information regarding locations where the mater- ials can be collected for recycling.

  • Page 76: General Information

    User manual 2300 EF-S system 7 General information The following paragraphs contain information regarding the delivery, storage and guarantee of the EF-S system . Read the following paragraphs when products are delivered! Part no.: 162014 EN-1 Release 07/2020...

  • Page 77: Pictograms

    User manual 2300 EF-S system 7.1 Pictograms The following pictograms are used in this user guide: Description Description Description Read this inform- Important mes- ation before you Delivery information. sage! start!t! Important Mounting inform- Parts information. restriction! ation Requirements Information about Information about set by storage...

  • Page 78: Cleaning

    User manual 2300 EF-S system 7.2 Cleaning All the components of the EF-S system meet standard IP65 and are dustproof and water- tight. TRIDEC stronglyadvises against cleaning the electricalcomponents using a high-pressure hose. Figure 7-1 7.3 System info The “System info” menu contains information about the following: The wireless system The installed programs The sensors...
  • Page 79 User manual 2300 EF-S system 1. Carry out the following. Part no.: 162014 EN-1 Release 07/2020...

  • Page 80: Programs

    User manual 2300 EF-S system 7.3.2 Programs The “Programs” menu gives information about the program versions of the various com- ponents. The menu consists of a number of pages. The button can be used to scroll through the various pages. Procedure: Part no.: 162014 EN-1 Release 07/2020...
  • Page 81 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...

  • Page 82: Sensors

    User manual 2300 EF-S system 7.3.3 Sensors This menu shows the various sensor values, such as: The "towing angle" and the "steering angle". The oil pressure in the centring circuit(s) and steering circuit(s). The temperature of the various components. Towing angle and steering angle The angle sensor (WS) transmits two signals: the WSA steering signal and the WSB control sig- nal.
  • Page 83 User manual 2300 EF-S system Procedure: 1. Carry out this procedure to read the various angles: 0WSA = towing angle measured by angle sensor WS on the kingpin 1WSA = average steering angle measured by angle sensor WS on axle 1 2WSA = average steering angle measured by angle sensor WS on axle 2 3WSA = average steering angle measured by angle sensor WS on axle 3 Part no.: 162014 EN-1...
  • Page 84 User manual 2300 EF-S system Pressure sensors The pressures in the centring circuit(s) and the steering circuit(s) can be read on both the remote control and in the service program. Procedure: 1. Follow the procedure given below. 0DA2 = oil pressure in the hydraulic centring circuit. 1DA1 = oil pressure in the hydraulic circuit of axle 1 2DA1 = oil pressure in the hydraulic circuit of axle 2 3DA1 = oil pressure in the hydraulic circuit of axle 3...
  • Page 85 User manual 2300 EF-S system Temperature sensors The EF-S system has a number of temperature sensors. The values can be read on both the remote control and in the service program. Procedure: 1. Follow the procedure given below. Part no.: 162014 EN-1 Release 07/2020...

  • Page 86: Serial Number

    User manual 2300 EF-S system Oil temp.:= temperature of the hydraulic oil Motor temp.: = temperature of the pump ECUtemp.: = temperature of the pump’s ECU 7.3.4 Serial number The “Serial number” menu provides the following information: Vehicle set: xxxx-xx-xxx_x Date: dd-mm-yy xxxx-xx-xxx_x...
  • Page 87 User manual 2300 EF-S system Part no.: 162014 EN-1 Release 07/2020...
  • Page 88 User manual 2300 EF-S system Notes Part no.: 162014 EN-1 Release 07/2020...
  • Page 89 User manual 2300 EF-S system Notes Part no.: 162014 EN-1 Release 07/2020...
  • Page 90 User manual 2300 EF-S system Notes Part no.: 162014 EN-1 Release 07/2020...
  • Page 91 User manual 2300 EF-S system Notes Part no.: 162014 EN-1 Release 07/2020...
