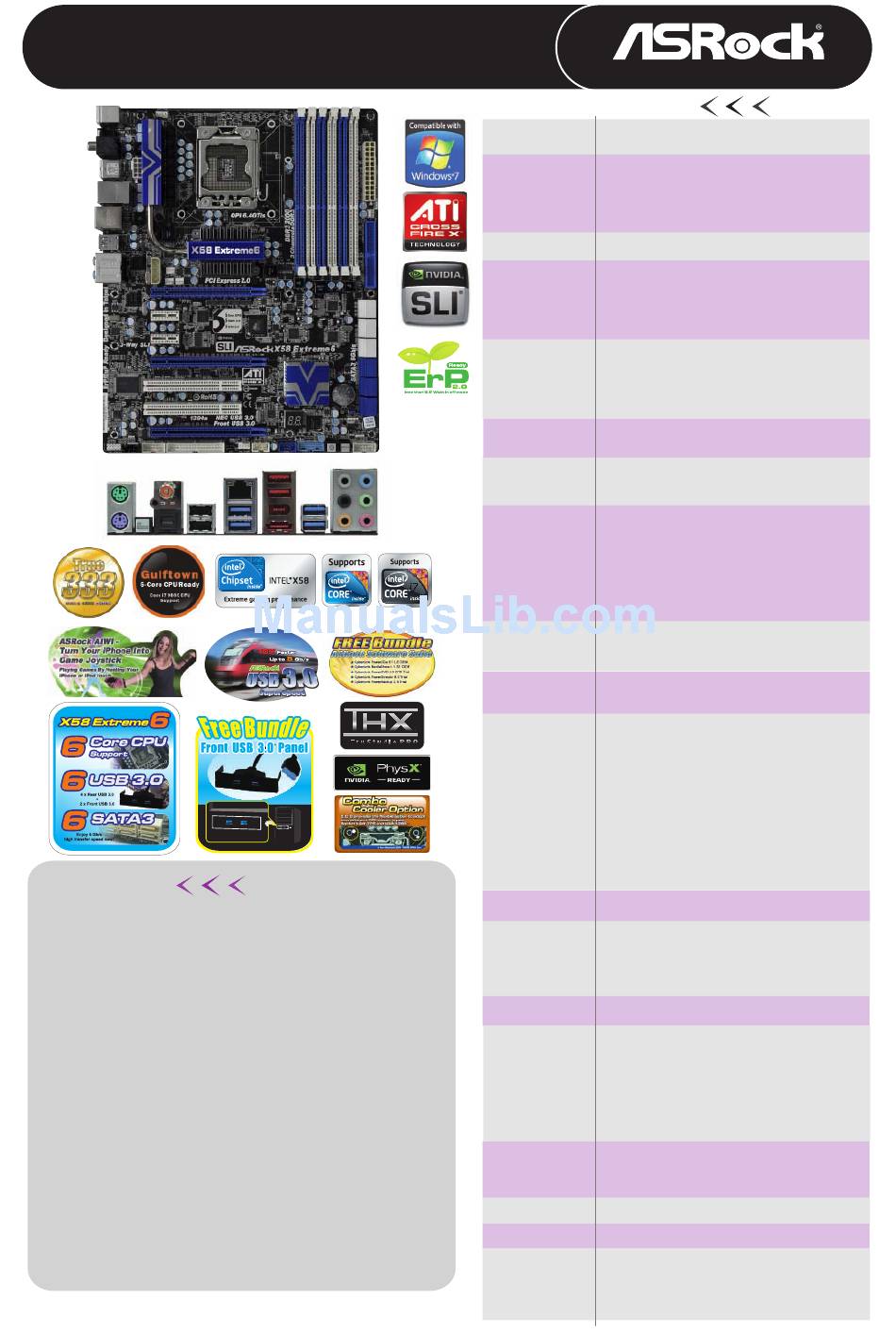

ASROCK X58 EXTREME6 Brochure

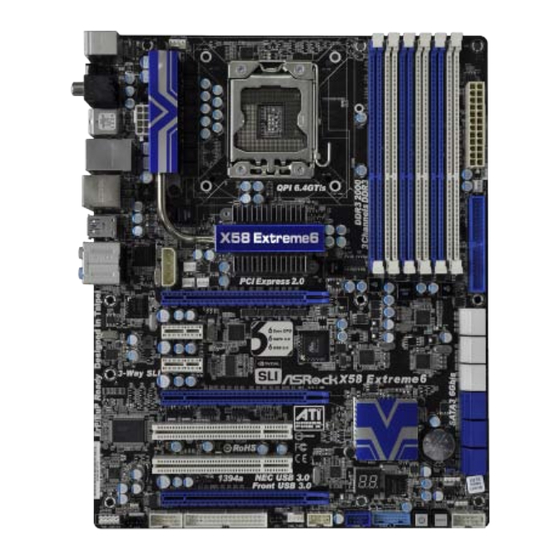

X58 Extreme6
Intel X58+ ICH10R Chipsets
®
Product Brief
- ASRock DuraCap (2.5 x longer life time), 100% Japan-made
high-quality Conductive Polymer Capacitors
- Six-Core CPU Ready
- Supports Triple Channel DDR3 2000(OC)
- Supports ATI Quad CrossFireX
TM
CrossFireX
TM
- Supports NVIDIA Quad SLI
®
- 2 x Front USB 3.0 ports, 4 x Rear USB 3.0 ports, 6 x SATA3 6.0
Gb/s connectors, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS
Switch with LED
- Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES,
OC DNA, Good Night LED, Multi-Speed Fan Control, AIWI,
APP Charger
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec), THX TruStudio PRO
audio support
- Free Software : CyberLink DVD Suite - OEM and Trial
- Free Bundle: 1 x Front USB 3.0 Panel, 1 x ASRock SLI_Bridge_
2S Card, 1 x ASRock 3-Way SLI-2S2S Bridge Card
- ErP / EuP 2.0 Ready
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
,3-Way CrossFireX
TM TM
,3-Way SLI and SLI
TM TM TM
and Premium Blu-ray
TM
Detail Specification
Platform
CPU
Chipset
Memory
Expansion Slot
Audio
LAN
Rear Panel I/O
SATA3
USB 3.0
Connector
Smart Switch
BIOS Feature
and
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
ww w. a s ro ck. c om
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
- Intel Socket 1366 Core™ i7 Processor Extreme Edition / Core™ i7
®
Processor Supports Intel Dynamic Speed Technology
®
- Six-Core CPU Ready
- System Bus up to 6400 MT/s; Intel ® QuickPath Interconnect
- Advanced V8 + 2 Power Phase Design
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
- Northbridge: Intel ® X58
- Southbridge: Intel ® ICH10R
- Dual Channel DDR3 memory technology
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333
(OC)/1066 non-ECC, un-buffered memory
- Supports DDR3 ECC, un-buffered memory with Intel
Workstation 1S Xeon processors 3500 series
®
- Max. capacity of system memory: 24GB
- Supports Intel Extreme Memory Profile (XMP)
®
- 3 x PCI Express 2.0 x16 slots (PCIE1: x16 mode; PCIE4/PCIE5:
single at x16 or dual at x8/x8 mode)
(Double-wide slot spacing between each PCI-E slot)
- 2 x PCI Express x1 slots
- 2 x PCI slots
- Supports ATI Quad CrossFireX , 3-Way CrossFireX
TM TM
CrossFireX
TM
- Supports NVIDIA Quad SLI , 3-Way SLI
® TM TM
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio PRO
TM
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9128, support RAID
(RAID 0, RAID 1 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 4 x SATA3 6.0 Gb/s connectors by Marvell SE9123/9120, support
NCQ, AHCI and "Hot Plug" functions
(SATA3_6 connector is shared with eSATA3 port)
- 4 x Rear USB 3.0 ports by NEC UPD720200, support USB 1.0/2.0/
3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by NEC
UPD720200, supports USB 1.0/2.0/3.0 up to 5Gb/s
- 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and
Hot Plug functions
- 6 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, IOH, ICH, VTT, IOH/ICH PCIE, CPU PLL, IOH
CSI, VCORE Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Microsoft Windows 7 / 7 64-bit / Vista / Vista
® ® TM
/ XP / XP 64-bit compliant
- FCC, CE, WHQL
- ErP/EuP 2.0 Ready (ErP/EuP 2.0 ready power supply is required)
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S2S Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 6 x SATA Data Cables (Optional)
- 3 x SATA 1 to 1 Power Cables (Optional)
- 1 x Front USB 3.0 Panel
- 6 x Screws
®
and
