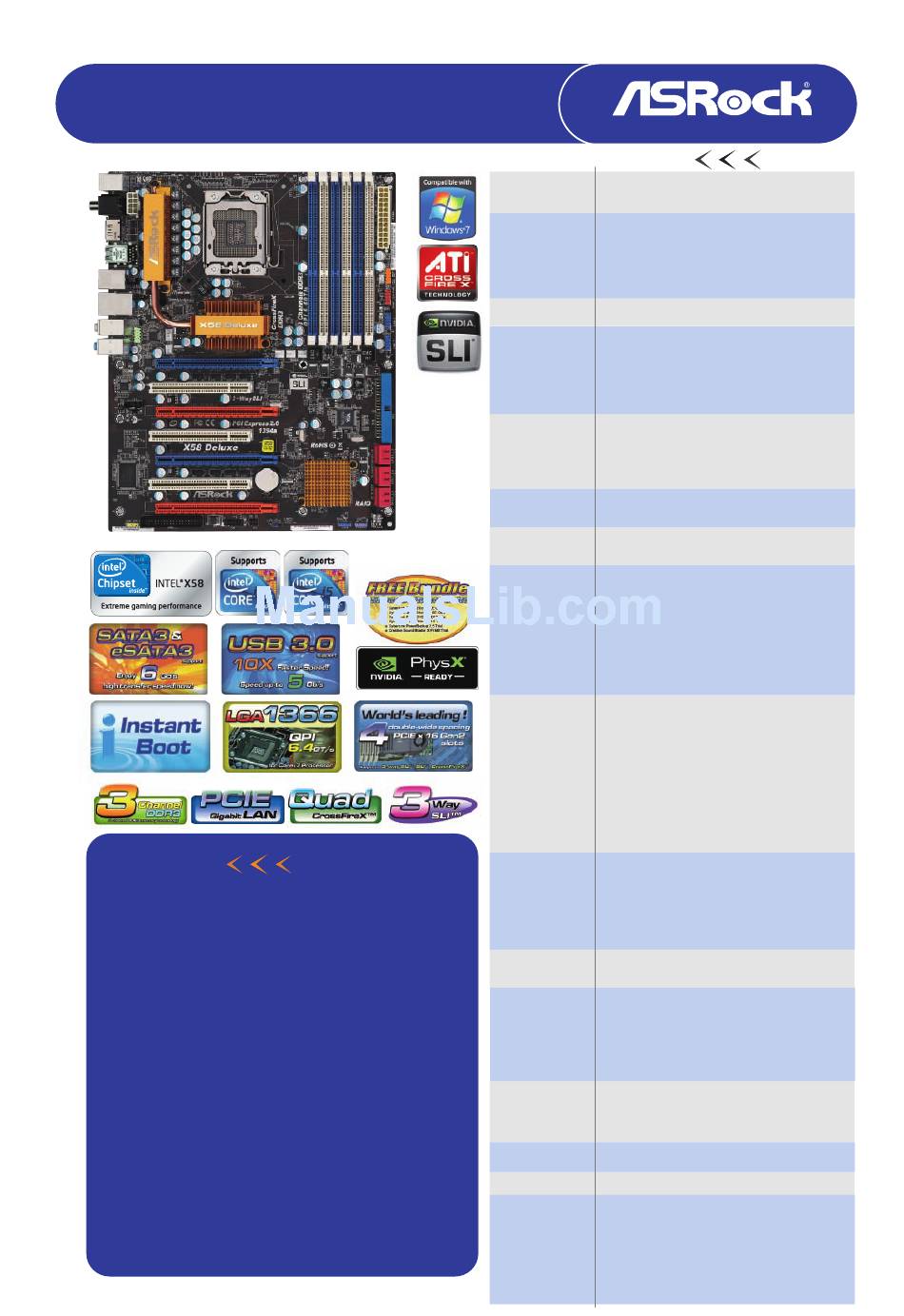

X58 Deluxe3
Intel
X58 + ICH10R Chipsets
®
Product Brief
- ASRock DuraCap (2.5 x longer life time), 100%
Japan-made high-quality Conductive Polymer Capacitors
- Supports Triple Channel DDR3 2000(OC)
- Supports NVIDIA
Quad SLI™, 3-Way SLI™ and SLI™
®
- Supports ATI™ Quad CrossFireX™, 3-Way CrossFireX™
and CrossFireX™
- 4 x PCI Express 2.0 x16 slots (Double-wide slot spacing
between each PCI-E slot)
- 1 x Powered eSATAII/USB Connector
- Supports ASRock Instant Boot, Instant Flash, OC Tuner,
IES, OC DNA
- 7.1 CH HD Audio (ALC890 Audio Codec), Premium Blu-ray
audio support
- Free Bundle: CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial
- Free Bundle: 2 x ASRock XFire_Bridge_3S Cards, 1 x
ASRock SLI_Bridge_3S Card, 1 x ASRock 3-Way SLI
Bridge Card, 1 x ASRock SATA3 Card , 1 x ASRock USB
3.0 Card
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
www.as rock.com

Detail Specification

Platform
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU
- Intel
Socket 1366 Core™ i7 Processor Extreme Edition
®
/ Core™ i7 Processor Supports Intel
Technology
- System Bus up to 6400 MT/s; Intel
Interconnect
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel
- Southbridge: Intel
- Triple Channel DDR3 memory technology
Memory
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333
(OC)/1066 non-ECC, un-buffered memory
- Supports DDR3 ECC, buffered memory with Intel
Workstation 1S Xeon
- Max. capacity of system memory: 24GB
- Supports Intel
- 4 x PCI Express 2.0 x16 slots (blue @ x8 / x16 mode,
Expansion Slot
orange @ x8 / N/A mode)
(Double-wide slot spacing between each PCI-E slot)
- 3 x PCI slots
- Supports ATI
TM
and CrossFireX
- Supports NVIDIA
Audio
- 7.1 CH HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATAII/USB Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
Connector
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel
AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 5 USB 2.0 ports)
BIOS Feature
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version)

Support CD

ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)

Unique Feature

- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft
Windows
®
XP / XP 64-bit compliant

Certifications

- FCC, CE, WHQL
- 2 x ASRock XFire_Bridge_3S Cards

Accessories

- 1 x ASRock SLI_Bridge_3S Card
- 1 x ASRock 3-Way SLI Bridge Card
- 1 x ASRock SATA3 Card
- 1 x ASRock USB 3.0 Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
- 1 x LED lead (Optional)
Dynamic Speed
®
QuickPath
®
X58
®
ICH10R
®
®
processors 3500 series
®
Extreme Memory Profile (XMP)
®
Quad CrossFireX
, 3-Way CrossFireX
TM
TM
Quad SLI
, 3-Way SLI
and SLI
®
TM
TM
TM
Matrix Storage), NCQ,
®
7 / 7 64-bit / Vista
/ Vista
64-bit /
®
TM
TM
TM
