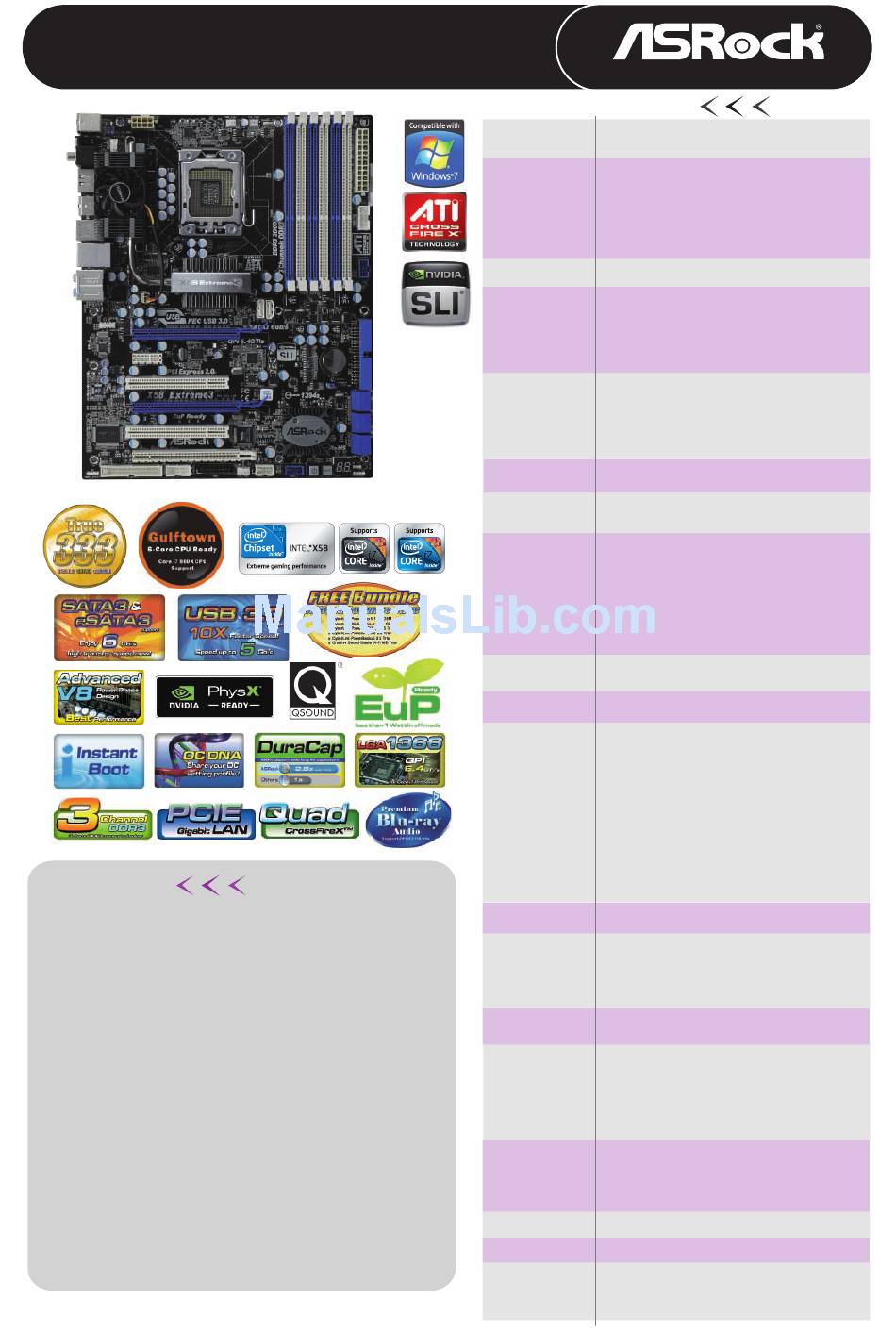

ASROCK X58 EXTREME3 Brochure

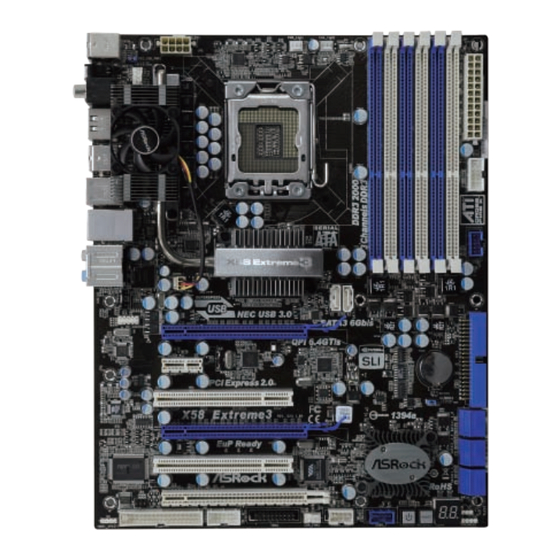

X58 Extreme3
Intel X58+ ICH10R Chipsets
®
Product Brief
- Supports the Core i7 980X 6-Core CPU
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Advanced V8 Power Phase Design
- Supports Triple Channel DDR3 2000 (OC)
- Supports ATI™ CrossFireX™ and
Quad CrossFireX™
- Supports NVIDIA Quad SLI™ and SLI™
®
- 1 x Powered eSATAIII/USB Connector,
2 x SATA3 6.0 Gb/s connector, 2 x USB 3.0 Ports
- ErP/EuP Ready, Dr. Debug
- Smart Swith Design : Power / Reset / Clear
CMOS Switch with LED
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, Multi-Speed Fan Control, OC Tuner,
IES, Good Night LED
- 7.1 CH HD Audio (VT2020 Audio Codec with
QSound), SRN 110dB & Premium Blu-ray audio
support
- Free Bundle: CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om
Detail Specification
Platform
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU
- Intel ® Socket 1366 Core™ i7 Processor Extreme Edition /
Core™ i7 Processor Supports Intel
Technology
- System Bus up to 6400 MT/s; Intel
Interconnect
- Advanced V8 Power Phase Design
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel
- Southbridge: Intel
Memory
- Dual Channel DDR3 memory technology
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333
(OC)/1066 non-ECC, un-buffered memory
- Supports DDR3 ECC, un-buffered memory with Intel
Workstation 1S Xeon
- Max. capacity of system memory: 24GB
- Supports Intel
Expansion Slot - 2 x PCI Express 2.0 x16 slots (blue @ x16 mode)
- 1 x PCI Express x16 slot (white @ x4 mode)
(Double-wide slot spacing between each PCI-E slot)
- 1 x PCI Express x1 slot
- 2 x PCI slots
- Supports ATI
TM
- Supports NVIDIA
- 7.1 CH HD Audio with Content Protection
Audio
- DAC with 110dB dynamic range (VIA
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 5 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATAIII/USB 2.0 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
SATA3
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9128, support
hardware RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug"
functions (SATA3_2 connector is shared with eSATA3 port)
- 2 x USB 3.0 ports by NEC MPD720200, support USB 1.0/2.0/3.0
USB 3.0
up to 5Gb/s
Connector
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 10, RAID 5 and Intel
Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x TPM header
- 1 x Chassis Intrusion header
- 1 x Power LED header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
Smart Switch - 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, IOH, ICH, VTT, IOH/ICH PCIE, CPU PLL, IOH
CSI, VCORE Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Drivers, Utilities, AntiVirus Software (Trial Version),
Support CD
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
/ XP / XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
Dynamic Speed
®
® QuickPath
® X58
ICH10R
®
®
processors 3500 series
®
Extreme Memory Profile (XMP)
®
CrossFireX and Quad CrossFireX
TM TM
® SLI TM and Quad SLI TM
VT2020 Audio Codec)
®
Matrix Storage), NCQ, AHCI and Hot
®
® 7 / 7 64-bit / Vista TM / Vista TM 64-bit
