Homelegance 8557-1SS Assembly Instruction

NO. DESCRIPTION
A
BACK FRAME
B
SEAT FRAME
C
SEAT CUSHION
D BACK CUSHION
LSF ARM
E
F
RSF ARM
MADE IN VIETNAM
R
Thank you for purchasing this product. Please take time to read and follow the instructions below.
Check that you have all parts and hardware before assembly. Parts apparently missing are often
found in the packing materials. If you do not have all the parts listed, have your dealer contact us
and they be sent to you immediately.
It is recommended to install protective pads under all legs and support to avoid damage or scratches
when placing furniture on a wood floor or orther hard surface, and to limit Indentation and prevent
discoloration if placing on carpet.
PARTS LIST

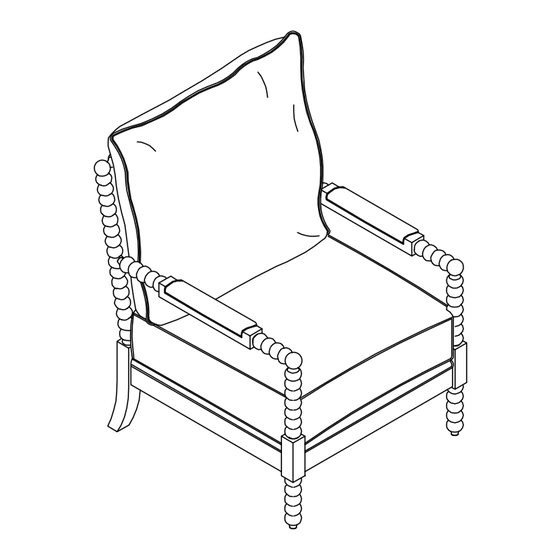

DRAWING
ASSEMBLY INSTRUCTIONS
ITEM NO:8557-1SS
Accent Chair
QTY No.
SKETCH
1
1 PC
2
1 PC
3
1 PC
4
1 PC
5
1 PC
6
1 PC 7
HARDWARE LIST
QTY
SIZE
BOLT
2 PCS
(Ø1/4''-28 *1-1/2"L)
BOLT
2 PCS
(Ø5/16''-25 *1-1/2"L)
BOLT
4 PCS
( Ø5/16''-32 *1-30/32"L )
BOLT
4 PCS
(Ø5/16''-55 *3-1/2"L)
SPRING WASHER
10 PCS
(Ø 5/16"×1.2mmL)
FLAT WASHER
10 PCS
(Ø 5/16 " ×19mmL)
ALLEN KEY
1 PC
(M4×60mmL)
PAGE 1 OF 4
