PLATINUM
Series User's Guide
TM

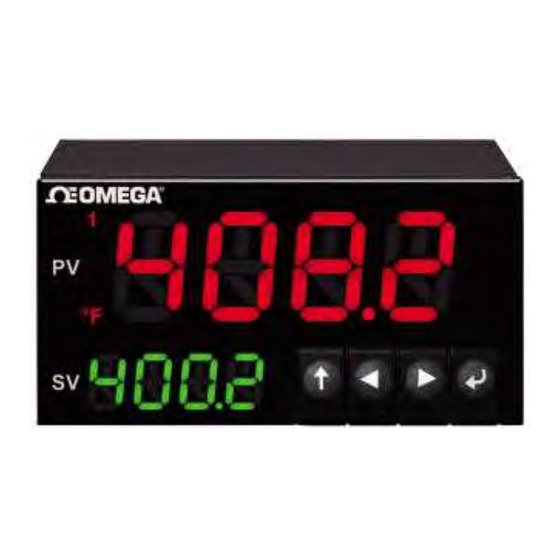

CN32Pt, CN16Pt, CN16DPt, CN8Pt, CN8DPt
omega.com
Omega Engineering, Inc:
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854, USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
C ustomer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660
e-mail: info@omega.com
Temperature & Process Controllers
info@omega.com
Fax: (203) 359-7700
TM
The information contained in this document is believed to
be correct, but OMEGA accepts no liability for any errors it
contains, and reserves the right to alter specifications
without notice.
OMEGA's policy is to make running changes, not model
changes, whenever an improvement is possible. This
affords our customers the latest in technology and
engineering. OMEGA is a registered trademark of OMEGA
ENGINEERING, INC. © Copyright 2015 OMEGA
ENGINEERING, INC. All rights reserved. This document
may not be copied, photocopied, reproduced, translated, or
reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of
OMEGA ENGINEERING, INC.
MQS5451/0922
Advertisement
Table of Contents
Related Manuals for Omega PLATINUM CN16DPt
Summary of Contents for Omega PLATINUM CN16DPt
- Page 1 The information contained in this document is believed to Omega Engineering, Inc: be correct, but OMEGA accepts no liability for any errors it 800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854, USA contains, and reserves the right to alter specifications without notice.
- Page 2 PLATINUM Series User’s Guide Introduction 1. Introduction The PLATINUM Series controller offers unparalleled flexibility in process measurement. While the controller is extremely powerful and versatile, great care has gone into designing a product that is easy to set up and use. Automatic hardware configuration recognition eliminates the need for jumpers and allows the unit’s firmware to automatically simplify itself, eliminating all menu options that do not apply to your configuration.
-
Page 3: Safety Considerations
Failure to follow all instructions and warnings is at your own risk and may result in property damage, bodily injury and/or death. Omega Engineering is not responsible for any damages or loss arising or resulting from any failure to follow any and all instructions or observe any and all... -
Page 4: Wiring Instructions
PLATINUM Series User’s Guide Wiring Instructions 3. Wiring Instructions Back Panel Connections Ethernet Connector if EIP Option Installed Ethernet Communications Status LEDs if EIP Option Installed USB Connector 8-Pin Power / Outputs Connector 10-Pin Input Connector Figure 1 – CN8Pt Models: Back Panel Connections 8-Pin Power / Outputs Connector 10-Pin Input Connector Ethernet Connector if EIP... -
Page 5: Connecting Power
PLATINUM Series User’s Guide Wiring Instructions Connecting Power Connect the main power connections to pins 7 and 8 of the 8-pin power / output connector as shown in Figure 3. Use copper conductors only for power connections Caution: Do not connect power to your device until you have completed all input and output connections. - Page 6 PLATINUM Series User’s Guide Wiring Instructions Process Process Thermo- 2-Wire 3-Wire 4-Wire Ther- Remote Number Voltage Current couple mistor Setpoint RTD2- RTD2+ Rtn(*) Vin +/- T/C+ RTD1+ RTD1+ RTD1+ T/C- RTD2- RTD1- RTD1- RTD1- V/I In *For Remote Setpoint with an RTD, Pin 1 on the Output Connector must be used for the RtN instead of Pin 1 on the Input Connector.
-
Page 7: Connecting Outputs
PLATINUM Series User’s Guide Wiring Instructions Connecting Outputs The PLATINUM Series supports 5 different types of outputs with the model number numeric designations summarized in Table 3. Your unit comes preconfigured with up to 3 outputs. Table 4 shows the output connector connections for the different configurations offered. Your output configuration is the 3 numeric digits following the first dash in your model number. -
Page 8: Description Of Button Actions
PLATINUM Series User’s Guide PLATINUMTM Series Navigation Table 5 – Definitions for Abbreviations in Table 4 4. PLATINUM Series Navigation Alarm Annunciators Process Value Negative Sign Temperature Units Program Buttons Setpoint Value Figure 6 – PLATINUM Series Display (CN8DPt Shown) Description of Button Actions The UP button moves up a level in the menu structure. -
Page 9: Circular Flow Of Menus
PLATINUM Series User’s Guide Complete Menu Structure Operating Mode: This mode allows users to switch between Run Mode, Standby Mode, oPER Manual Mode, etc. Circular Flow of Menus The following diagram shows how to use the LEFT and RIGHT buttons to navigate around a menu. Press the ENTER button on oPER to select and enter RUN oPER... - Page 10 PLATINUM Series User’s Guide Complete Menu Structure Level Level Level Level Level Level Level Notes tHRM 2.25k 2250 Ω thermistor 5000 Ω thermistor 10,000 Ω thermistor PRoC – Process input range: 4 to 20 mA Note: This Manual and Live Scaling submenu is the same for all PRoC ranges. MANL Rd.1 ____...
- Page 11 Retransmits received commands SEPR _CR_ Carriage Return separator in CoNt SPCE Space separator in CoNt Mode M.bUS Standard Modbus protocol ASCI Omega ASCII protocol AddR ____ USB requires Address EtHN PRot Ethernet port configuration AddR ____ Ethernet “Telnet” requires Address...
- Page 12 PLATINUM Series User’s Guide Complete Menu Structure Level Level Level Level Level Level Level Notes Multiple devices Serial Comm Mode bAUd 19.2 Baud rate: 19,200 Bd 9600 9,600 Bd 4800 4,800 Bd 2400 2,400 Bd 1200 1,200 Bd 57.6 57,600 Bd 115.2 115,200 Bd PRty...
-
Page 13: Programming Mode Menu (Prog)
PLATINUM Series User’s Guide Complete Menu Structure Level Level Level Level Level Level Level Notes ____ Set password for INIt Mode P.Pwd No password for PRoG Mode ____ Set password for PRoG Mode Programming Mode Menu (PRoG) The following table maps the Programming Mode (PRoG) navigation: Level Level Level... - Page 14 PLATINUM Series User’s Guide Complete Menu Structure Level Level Level Level Level Notes ALM.2 Alarm 2 oUt1 oUt1 is replaced by output type Note: This submenu is the same for all other outputs. ModE Output does nothing PID Control Mode oN.oF ACtN RVRS...
- Page 15 PLATINUM Series User’s Guide Complete Menu Structure Level Level Level Level Level Notes 4–20 Remote analog Input sets SP1; range: 4–20 mA Note: This submenu is the same for all RM.SP ranges. RS.Lo ____ Min Setpoint for scaled range IN.Lo ____ Input value for RS.Lo RS.HI...
-
Page 16: Operating Mode Menu (Oper)
PLATINUM Series User’s Guide Complete Menu Structure Operating Mode Menu (oPER) The following table maps the Operating Mode (oPER) navigation: Level Level Level Notes Normal Run Mode, process value displayed, SP1 in optional secondary display ____ Shortcut to change Setpoint 1, current Setpoint 1 value in main display ____ Shortcut to change Setpoint 2, current Setpoint 2 value in main display MANL M.CNt... - Page 17 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
-
Page 18: Data Acquisition
Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
