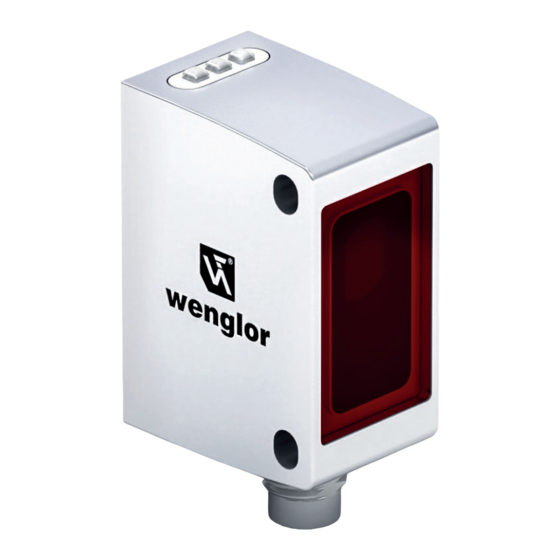

Long-range laser distance sensors

Advertisement

Quick Links

EN
P2KYxxx
Long-Range Laser Distance Sensors
Operating Instructions
Translation of the Original Operating Instruction
Subject to change without notice
Available as PDF version only
Version: 1.1.0
Status: 04.06.2024
www.wenglor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2KY Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wenglor P2KY Series

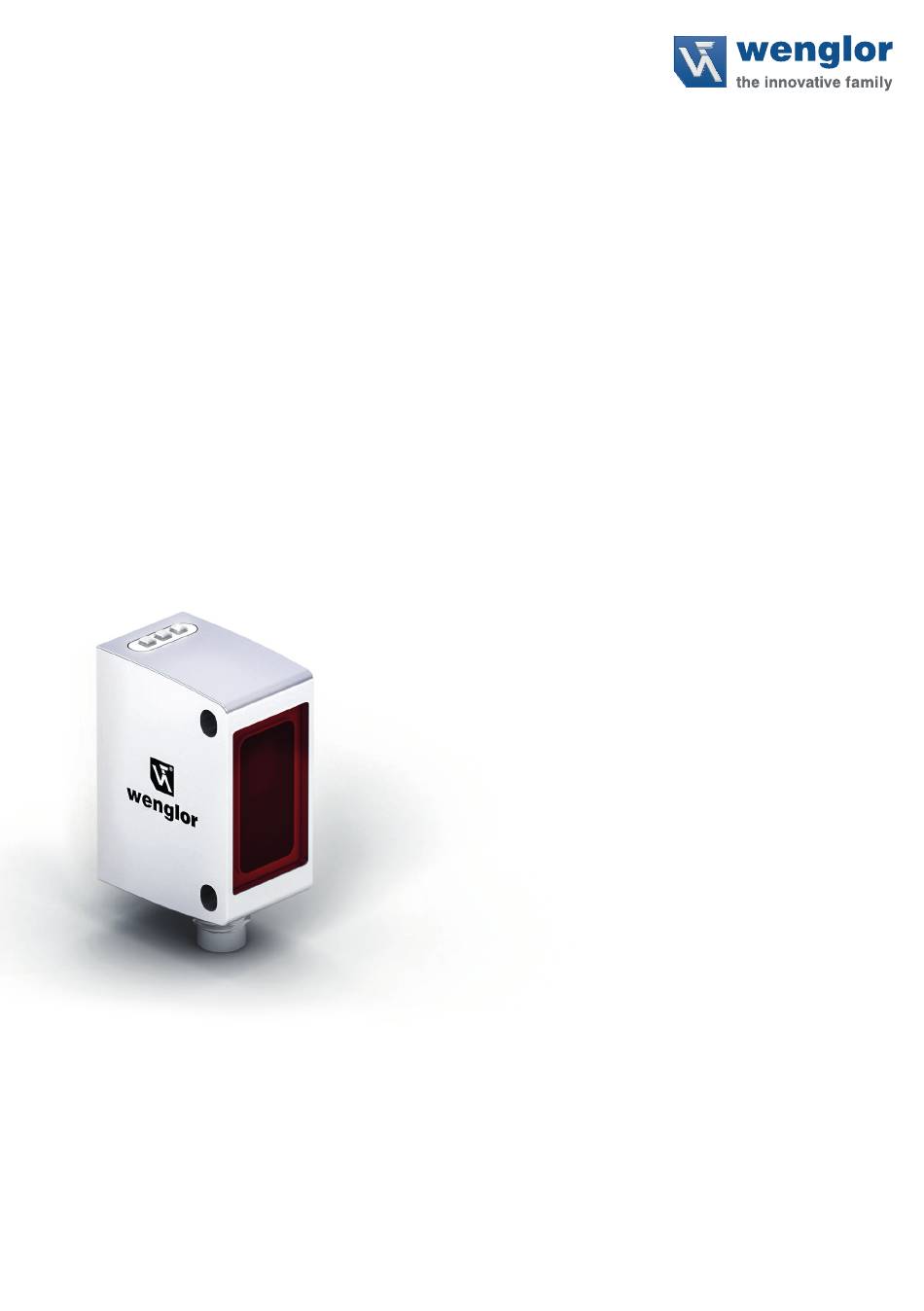

  • Page 1 P2KYxxx Long-Range Laser Distance Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.1.0 Status: 04.06.2024 www.wenglor.com...
  • Page 2: Table Of Contents

    Table of Contents 1. General ............................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols ........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ...............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications .........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6...
  • Page 3: General

    • The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference.
  • Page 4: Limitation Of Liability

    • wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc- tions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc- tions were prepared.
  • Page 5: For Your Safety

    • The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page.
  • Page 6: Personnel Qualifications

    • In the event of possible changes, the respectively current version of the operating instruc- tions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product.
  • Page 7: Technical Data

    3. Technical Data P2KYxxx Order Nr. Technical Data Optical Data Working range 0…1000 mm Setting range 100…1000 mm Switching hysteresis < 20 mm Light source Laser (red) Wavelength 680 nm Service life (ambient temp. = +25° C) 100000 h Laser class (EN 60825-1) Beam Divergence <...
  • Page 8: Spot Diameter

    3.1 Spot diameter Working distance 100 mm 500 mm 1000 mm Spot diameter 4 mm 7 mm 15 mm Table 1 3.2 Switching Distance Deviation P2KY005, P2KY012 Typical characteristic curve based on Kodak white (90% remission) Sr = switching distance dSr = change in switching distance Black, 6 % remission Gray, 18 % remission...
  • Page 9: Accessory Products

    3.3 Accessory Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master EFBL001, EFBL003, EP0L001 wTeach2 software DNNF005 Software IO-Link Device Tool DNNF019 Hygienically designed screws BEF-SET-48 3.4 Layout...
  • Page 10: Control Panel

    3.5 Control Panel 06 = teach-in key 5a = switching status display, A1 6a = switching status display, A2 68 = supply power indicator 3.6 Scope of Delivery • Sensor • Commissioning Instructions • Mounting-Set 46 Technical Data...
  • Page 11: Transport And Storage

    4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit.
  • Page 12: Electrical Connection

    5.2 Electrical Connection Connect the sensor to supply voltage (see section “3. Technical Data”, page Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Supply Voltage (AC Voltage) Encoder B Test Input inverted Switching Output...
  • Page 13: Diagnostics

    5.3 Diagnostics Causes for Triggering the Error Messages (A1/A2 Continuous blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking • Increase the sensor’s switching distance. at approx. 2.5 Hz Unreliable working range •...
  • Page 14 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
  • Page 15: Settings

    6. Settings The switching distance to the object can be taught in for both outputs by pressing the teach-in key on the sensor (foreground teach-in). Sensor Teach-in distance Object Switching point Foreground Teach-In for Switching Output 1 1. Mount the sensor in accordance with the mounting instructions. 2.
  • Page 16: Settings Via Io-Link

    In addition to foreground teach-in (default setting), there’s also a background teach-in option for both outputs. Additionally, there’s also a window teach-in option for both outputs. Process and parameters data, as well as the interface protocol and the IODD, can be found at www.wenglor.com in the product’s separate download area.
  • Page 17: Locking

    7.3 Locking If 18 to 30 V DC is continuously applied to the teach-in input, the teach-in key is locked and protected against inadvertent changes. 1. Change the A1/A2 pin function to external teach-in. 2. Permanently connect pin A2 to voltage within a range of 18 to 30 V DC. 3.
  • Page 18: Test Mode

    Initial version of the operating instructions 1.1.0 04.06.2024 New Connection Diagram“5.2 Electrical Connection” on page 12 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Maintenance Instructions...
  • Page 19 Long-Range Laser Distance Sensors...

This manual is also suitable for:

P2ky012P2ky005
