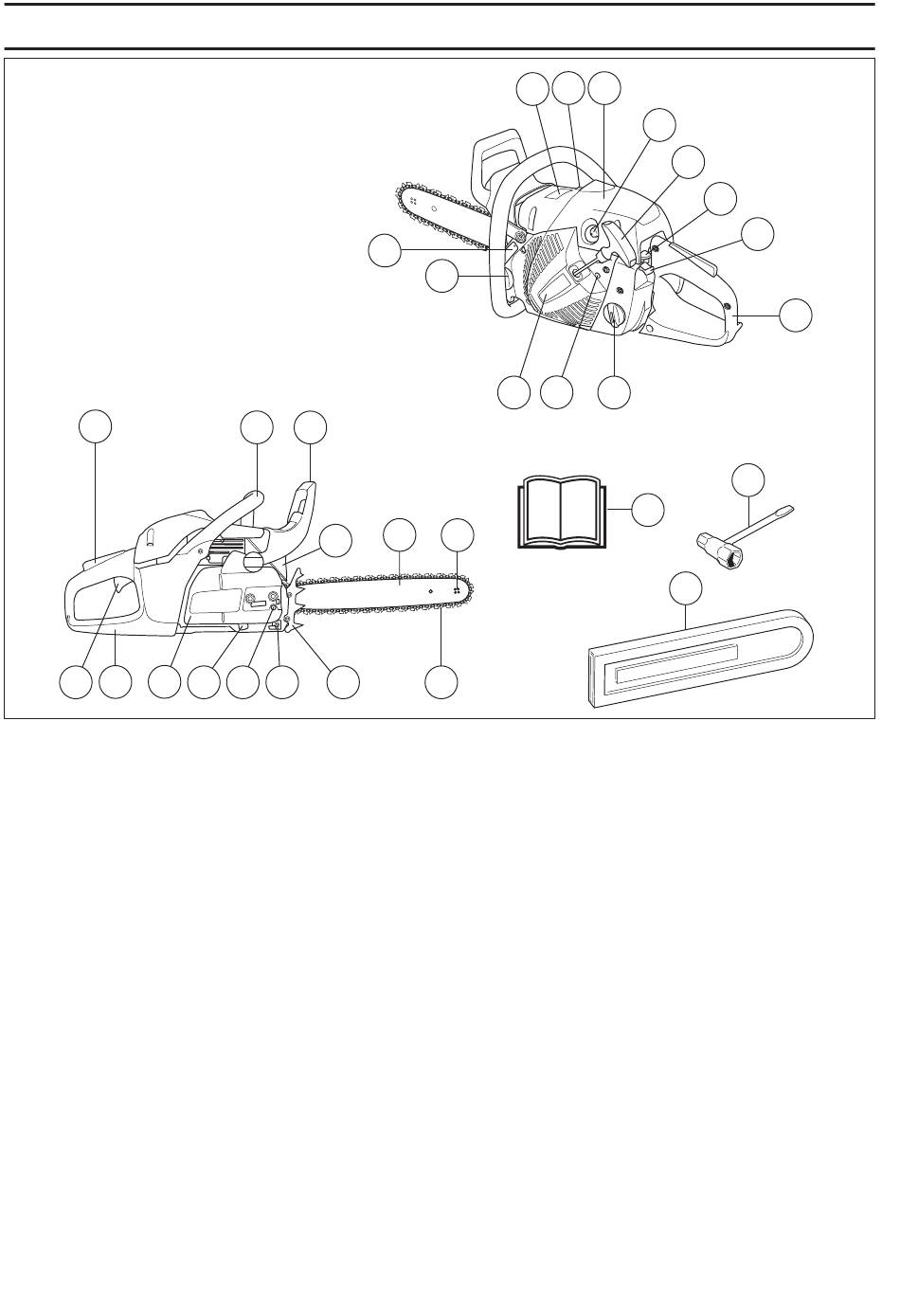

What is what on the chainsaw?

1 Information and warning decal
2 Decompression valve
3 Cylinder cover
4 Air purge
5 Starter handle
6 Stop switch (Ignition on/off switch.)
7 Choke control/Start throttle lock
8 Rear handle
9 Fuel tank
10 Adjuster screws carburetor
11 Starter housing
12 Chain oil tank
13 Product and serial number plate
14 Throttle trigger lockout
15 Front handle
6 – English

WHAT IS WHAT?

16
15
17
24 23 22 21
1
13
12
11
18
19
20
16 Front hand guard
17 Muffler
18 Guide bar
19 Bar tip sprocket
20 Saw chain
21 Spiked bumper
22 Chain catcher
23 Chain tensioning screw
24 Oil pump adjustment screw
25 Clutch cover
26 Right hand guard
27 Throttle trigger
28 Operator's manual
29 Combination spanner
30 Guide-bar cover
2 3
4
5
10
9
28
30
6
7
8
29
