Generac Power Systems 2650PSI Owner's Manual page 7

3. Insert one "L" hook through hole just under billboard
on left side of handle (viewing from rear of unit). Hold
hook in place with pliers and attach locknut with 7/16"
wrench (Figure 3).

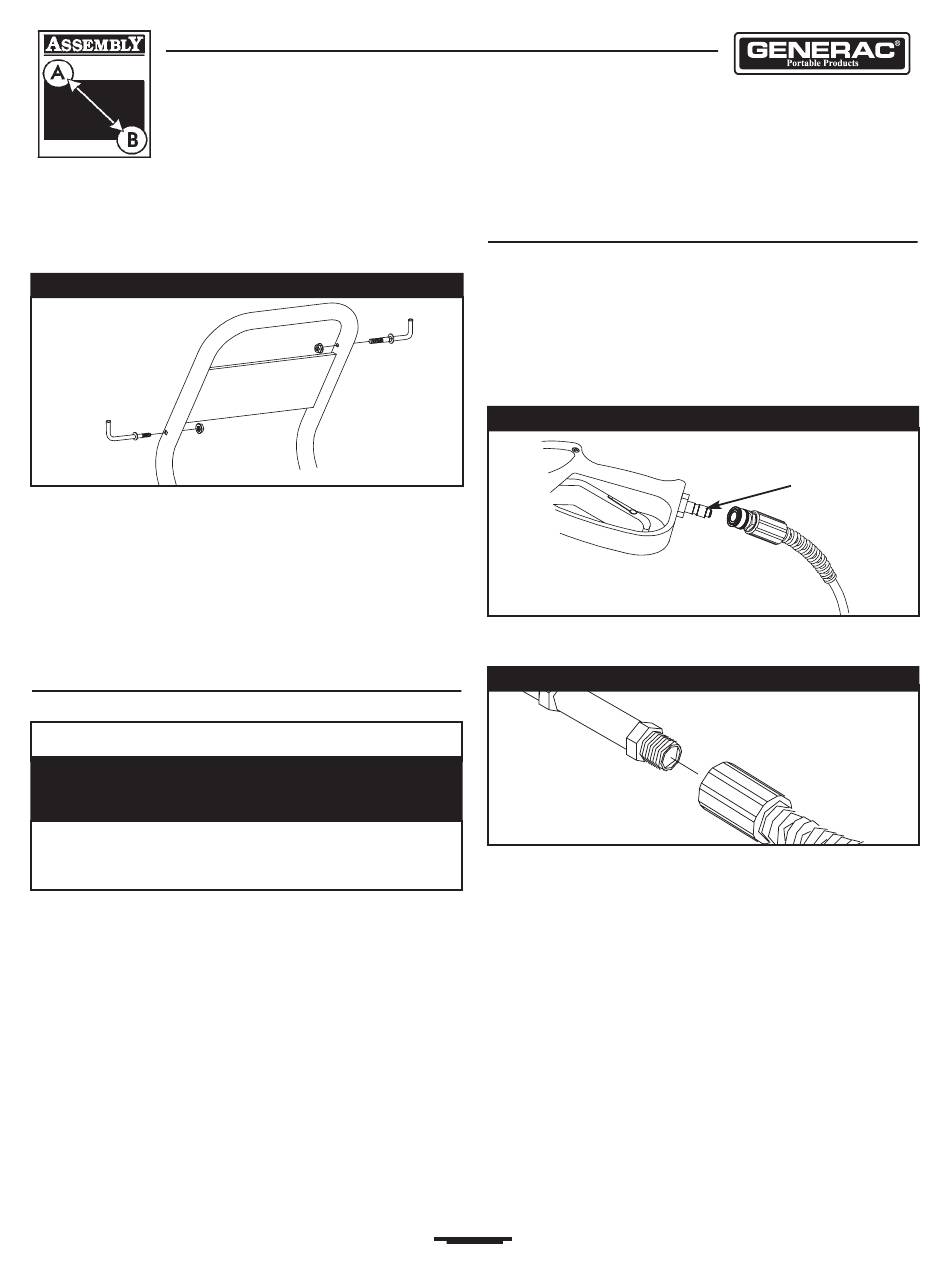

Figure 3 — Attach "L" Hooks to Handle
Hose Hook
4. Insert other "L" hook through hole just above
billboard on right side of handle (viewing from rear of
unit). Hold hook in place with pliers and attach locknut
with 7/16" wrench (Figure 3).
NOTE: If plastic knobs are provided in place of locknuts,
hold hooks in place and attach plastic knobs from inside of
unit.Tighten by hand.
Add Engine Oil and Fuel
• Place pressure washer on a level surface.
CAUTION
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
• Refer to engine manual for oil and fuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
• Refer to engine owner's manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine owner's manual for recommendations.
Generac Portable Products 2650 PSI Pressure Washer
Spray Gun
Hook
Connect Hose and Water Supply to
Pump
IMPORTANT: To avoid pump damage, you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
1. Uncoil high pressure hose and attach quick connect
end of hose to base of spray gun (Figure 4). Pull down
on collar of quick connect, slide onto spray gun and let
go of collar.Tug on hose to be sure of tight connection.
Figure 4 — Connect High Pressure Hose to Spray Gun
2. Attach other end of high pressure hose to high
pressure outlet on pump (Figure 5).Tighten by hand.
Figure 5 — Connect High Pressure Hose to Water Outlet
7
Connect high
pressure hose
here.
