How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between four different spray tips.The spray tips vary
the spray pattern as shown below (Figure 10).
CAUTION
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
• NEVER exchange spray tips without locking the safety latch
on the trigger.

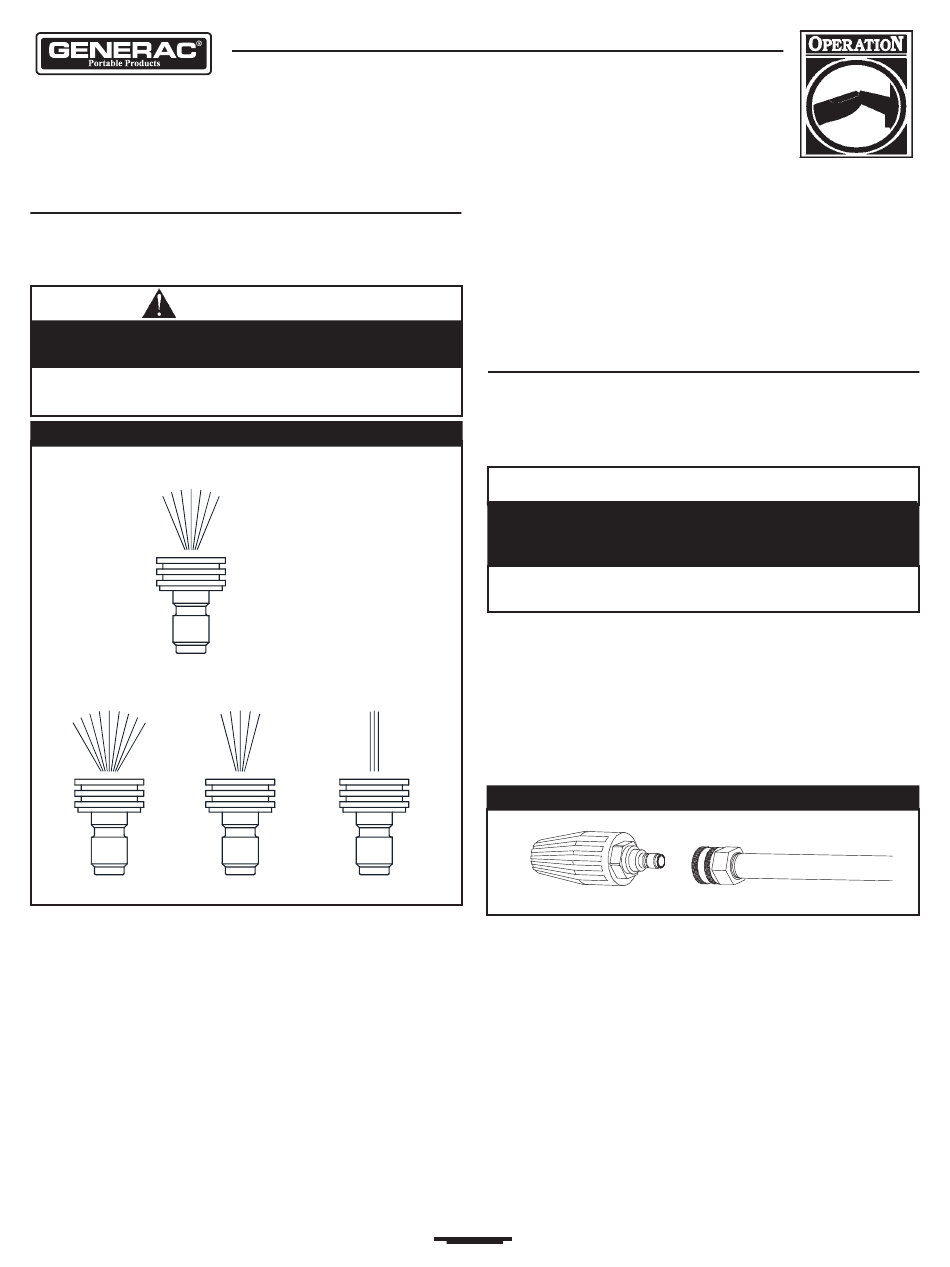

Figure 10 — Spray Tip Spray Patterns
Low Pressure
High Pressure
40° White 15° Yellow
Follow these instructions to change spray tips:
1. Engage safety latch on spray gun.
2. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
nozzle extension.
3. Select desired spray tip:
• For gentle rinse, select white 40° spray tip.
• To scour surface, select yellow 15° or red 0° spray
tip.
• To apply chemical, select black spray tip.
Generac Portable Products 2650 PSI Pressure Washer
Black
Use to apply
chemical
0° Red
4. Pull back on collar, insert new spray tip and release collar.
Tug on spray tip to make sure it is securely in place.
5. For most effective cleaning, keep spray tip from 8 to
24 inches away from cleaning surface. If you get spray
tip too close, you may damage cleaning surface.
6. DO NOT get closer than 6 inches when cleaning tires.
How to Use the Turbo Nozzle
The turbo nozzle rotates the high pressure stream in a
rapid circular pattern. Always start the turbo nozzle at a
distance, gradually getting closer to the surface until you
get the cleaning force you want.
CAUTION
The turbo nozzle produces an extremely high pressure
spray which is capable of removing paint and cutting
holes through surfaces if held too close.
• Always make sure the surface you will clean will not be
damaged by the high pressure spray by testing in a hidden area.
To attach the turbo nozzle to the spray gun:
1. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
nozzle extension.
2. Pull back on collar, insert turbo nozzle and release
collar (Figure 11).Tug on turbo nozzle to make sure it
is securely in place.
Figure 11 - Attaching Turbo Nozzle to Nozzle Extension
3. For most effective cleaning, keep turbo nozzle from 8 to
24 inches away from cleaning surface. If you get turbo
nozzle too close, you may damage cleaning surface.
NOTE: Detergent cannot be applied with the turbo
nozzle.
