EVAL_TDA38812_1VOUT user guide
User guide for TDA38812 evaluation board
Evaluation board test results

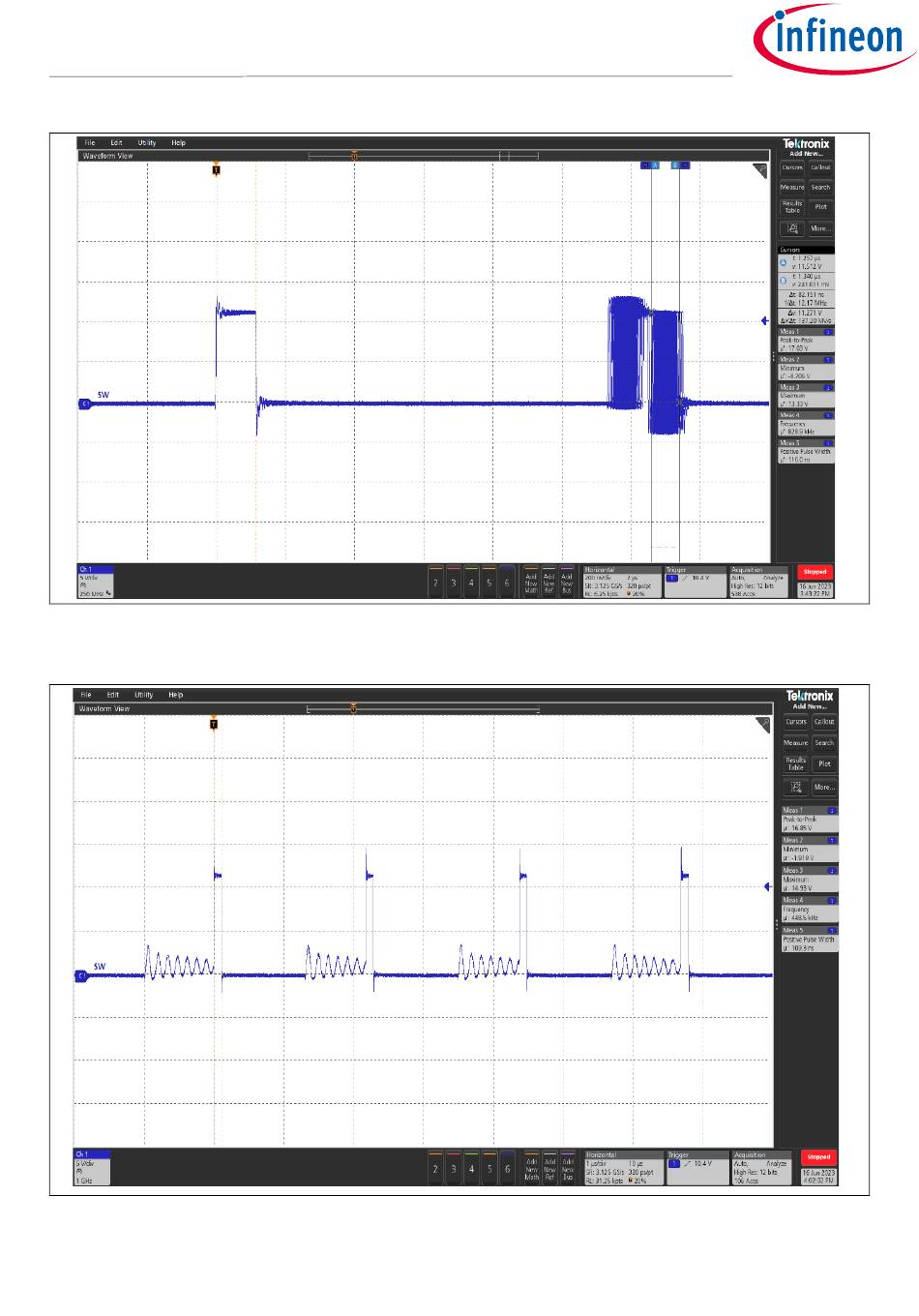

Figure 14
SW node jitter, 12 A load, F
Figure 15
SW node (in DEM), 1 A load
User Guide
= 800 kHz
SW
18
V 1.0
2023-07-21
