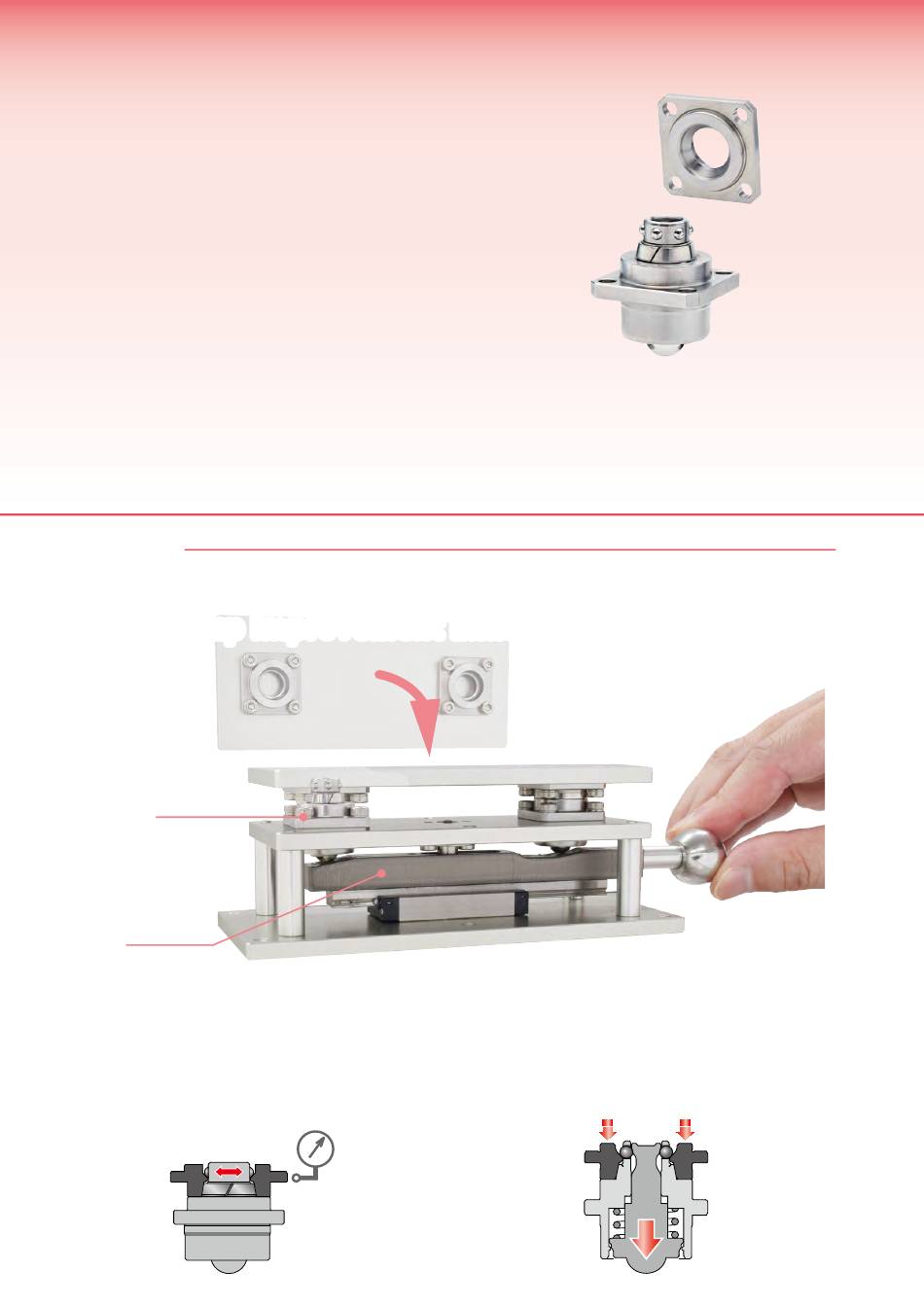

Lo c a tio n C l a m p
S m ar t S eri es
Loc at i o n Clam p
K S L
Mod e l
Powered by Third-Party Source: Smart Series
Enables easier pallet change and setup.
Locating Repeatability：0.010mm
Features
Setup Improvement Enhances Productivity.
Setup Improvement Enhances Productivity.
K S L
model
Location Clamp
Mechanical
Location Clamp locates and clamps simultaneously with high accuracy. Fixture changeover becomes faster
and easier, thus by eliminating alignment inspection for accuracy which is done in many different ways.
| Locating Repeatability |
Locating Repeatability：0.010mm
Used with a combination of the clamp and block.
Mount the block on the object for locating.
1
Locates and Clamps Simultaneously.
Locates and Clamps Simultaneously.
0.010mm
| Clamping Function |
Clamping Force : 50N
Clamped by the built-in spring.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for kosmek Smart Series
Summary of Contents for kosmek Smart Series
- Page 1 Lo c a tio n C l a m p S m ar t S eri es Loc at i o n Clam p K S L Mod e l Powered by Third-Party Source: Smart Series Enables easier pallet change and setup. Locating Repeatability：0.010mm Features Locates and Clamps Simultaneously. Locates and Clamps Simultaneously. Setup Improvement Enhances Productivity. Setup Improvement Enhances Productivity. K S L ...
-
Page 2: Action Description
Action Action Model No. Model No. External External Features Features Specifications Specifications Cautions Description Description Indication Indication Dimensions Dimensions Action Description Released by External Force Locked by Spring Pallet Steel Bearing Block Clamp Pushing Surface Pushing Surface When the pushing surface is released, the block is clamped and located by Released when the pushing surface is pushed in. the built-in spring. Internal Structure Drawing ※ This is a simplified drawing. Actual components are different. Piston Rod Steel Bearing (Clamping) Taper Reference Surface Block Clearance Seating Surface Clamp Pushing Surface Pushing Surface ※1... - Page 3 Smart Series Location Clamp K SL m o d e l System References When Using 2 Location Clamps Products and Functions Datum Clamp Pallet (Object for Locating) With Locating Function Datum Block Taper Sleeve Cut Block Datum Block For Reference Base Locating Taper Reference Surface (360° ) When Using 4 Location Clamps Pallet Cut Block (Object for Locating) Guide Block For One Direction Locating Cut Block Taper Reference Surface (Two Parts) ※ Only cut block requires attention in the mounting phase. For detail, please refer to ʻmounting distance accuracy and phase of KSL-BCʼ on P.6. Datum Block Guide Block Guide Block For Guide...
-
Page 4: Specifications
Action Action Model No. Model No. External External Features Features Specifications Specifications Cautions Description Description Indication Indication Dimensions Dimensions Model No. Indication Model No. Indication (Clamp) (Block) K S L 0 0 5 0 - M D K S L 0 0 5 0 - B D Design No. -
Page 5: External Dimensions
Smart Series Location Clamp K SL m o d e l Clamp External Dimensions Machining Dimensions of Mounting Hole ※ The drawing shows the released state of KSL. ※1 2-Thread for Jack Bolt M4×0.7 4-φ3.4 4-M3×0.5 Thread □18 □24 + 0 .011 30° φ18H6 0 Rz6.3 φ18 φ11.8 φ9 φ5.7 Distance Accuracy of Each Clamp (±0.02) 4-KSL0050-MD φ12.8 ±0.0055 φ18js6 (φ32) Note : ... - Page 6 Action Action Model No. Model No. External External Features Features Specifications Specifications Cautions Description Description Indication Indication Dimensions Dimensions Block External Dimensions KSL0050-BD KSL0050-BC KSL0050-BG ±0.0055 ±0.0055 ±0.0055 φ18js6 φ18js6 φ18js6 φ9.15 φ9.15 φ9.15 φ11.9 φ11.9 φ12 φ0.005 A φ0.005 A φ18 φ18 φ18 (φ32) (φ32)
- Page 7 Smart Series Location Clamp K SL m o d e l Cautions ● Notes for Design 1) Check Specifications 3) Setting of Rough Guide ● This product is locked by the built-in spring and released by ● If the position of the pallet (fixture) during loading is outside applying external force. the allowable offset, the clamp may prematurely contact Apply a force in the range shown in the specifications (refer to the seating/taper surface of the block causing damage affecting P.4 Releasing Force) to release. Applying excessive load on the locating accuracy. It is recommended to use rough guides to cylinder leads to deformation and galling. load the pallet within the allowable offset. ● Please use each product according to the specifications. Pallet 2) When Using a Pallet in Vertical Position ● ...
- Page 8 ④ Make sure there is no trouble/issue in the bolts and respective Defects or failures caused by the following are not covered. parts before restarting a machine or device. ① If the stipulated maintenance and inspection are not carried out. ② Failure caused by the use of the non-confirming state at the userʼs discretion. 3) Do not touch a cylinder or workpiece while it is working. ● Otherwise, your hands may be injured. ③ If it is used or operated in an inappropriate way by the operator. (Including damage caused by the misconduct of the third party.) ④ If the defect is caused by reasons other than our responsibility. ⑤ If repair or modifications are carried out by anyone other than Kosmek, or without our approval and confirmation, it will void warranty. ⑥ Other caused by natural disasters or calamities not attributable to our company. ⑦ Parts or replacement expenses due to parts consumption and deterioration. 4) Do not disassemble or modify. (Such as rubber, plastic, seal material and some electric components.) ● Contains a powerful spring which is dangerous. Damages excluding from direct result of a product defect shall be ...
