Summary of Contents for kosmek LHA0360-A Series

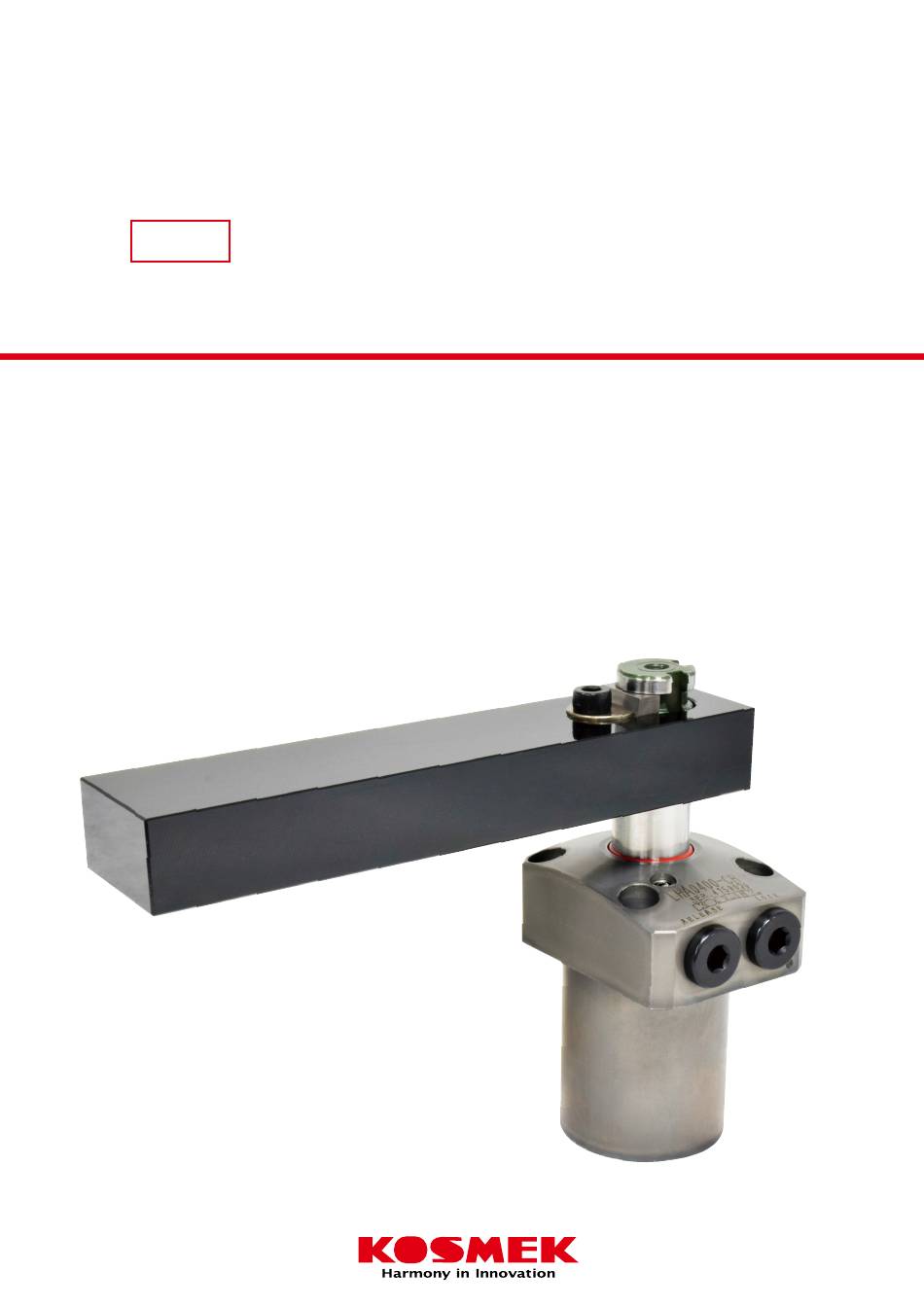

- Page 1 Swing Clamp Option Ａ Qu ic k Chan ge Le ve r Type The Fastest Lever Change, With Only One Bolt LH A - A M o d e l ...
- Page 2 H ydra u li c S w i n g C l amp Swi n g Clam p H yd r au l i c Doubl e Act ion Quic k Chang e Lev er Ty pe A LH A- A M od e l ...
- Page 3 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions The Fastest Lever Change, with Only One Bolt Only one bolt is required for lever installation and removal. Allows for the fastest lever setup time. Only One Bolt for Lever Change! Remove the Lever with One Wrench Wedge function will be released by loosening one bolt, No Special Tools Required! so the lever can be easily removed. Use One Wrench Special tool or gear puller is not required. for Removal! Secure Lever Tightening Even with Small Torque Even with small torque, a swing lever can be securely tightened with wedge function. Compared to the standard model, tightening torque is reduced by 90%. Even for large clamps, a lever can be simply tightened with small torque wrench. Standard Model Quick Change Lever Type A Wedge Mechanism for Requires Large Torque Lever Tightening with for Tightening… Small Torque The rod must be fixed so it does not damage Due to Small Torque, Not Required to Fix the Rod! the internal parts…...
- Page 4 Swing Clamp L HA-A Quick Change Lever Type A m o d e l Model No. Indication Clamp Body L H A 048 0 - C R Body Size ： φD=36mm ： φD=55mm ： φD=40mm ： φD=65mm ： φD=48mm ...
- Page 5 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions Tightening Kit for Quick Change Lever Type A Tightening Kit for mounting Quick Change Lever Type A. Sold separately from clamp body. 【Contents of Tightening Kit】 ・Wedge 1 ・Wedge 2 ・Tightening Bolt Wedge 1 Tightening Bolt Pin for Stopper Wedge 2 and Phasing L ZH 0 48 0 - W Swing Lever Corresponding Model No. ： LHA0360-□-A ： LHA0550-□-A ...
- Page 6 Swing Clamp LHA-A Quick Change Lever Type A m o d e l Clamping Force Curve ※ Clamping force curve is the same as that of standard model LHA. L : Lever Length (mm) (Example) When using LHA0480-A Supply Hydraulic Pressure 5.0MPa, Lever Length L=50mm, Clamping force is about 3.1kN. F :Clamping Force (kN) P:Hydraulic Pressure (MPa) Notes： 1. Tables and graphs shown are the relationships between the clamping force (kN) and supply hydraulic pressure (MPa). 2. Cylinder output (when L=0) cannot be calculated with the formula of clamping force. 3. There may be no lever swing action with large inertia depending on supply hydraulic pressure or lever mounting position. 4. The clamping force is shown with lever in the locked position. 5. The clamping force varies depending on the lever length. Set the supply hydraulic pressure suitable to the lever length. 6. Using in the non-usable range may damage the clamp and lead to fluid leakage. ...
- Page 7 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions = ／ ※1 LHA0550-A P(1-0.0011×L) ( 1.0039+0.0011×L) Clamping Force Calculation Formula (kN) Cylinder Force Hydraulic Cylinder Force Clamping Force (kN) Non-Usable Range(■) Max. Lever Length Pressure (kN) Lever Length L (mm) L=50(s=20) (MPa) L=50 L=60 L=80 L=100 L=120 L=140 L=160 L=200 (mm) ...
- Page 8 Swing Clamp LHA-A Quick Change Lever Type A m o d e l Allowable Swing Time Graph ※ Allowable swing time graph is the same as that of standard model LHA. Adjustment of Swing Time 90° Swing Full Stroke (Swing Stroke) The graph shows allowable swing time against lever inertia moment. (Total Operation Time) Please make sure that an operation time is more than the operation (Vertical Stroke) time shown in the graph. Excessive action speed can reduce stopping accuracy and damage internal parts. LHA0360-A LHA0400-A LHA0480-A Allowable Locking Time (sec) Allowable Locking Time (sec) Allowable Locking Time (sec) 0.2 0.4 0.6 1.0 1.2 1.4 1.6 0.2 0.4 0.6 1.0 1.2 1.4 1.6 0.2 0.4 0.6 1.0 1.2...
- Page 9 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions Model Allowable Locking Time (sec) LHA0480-A 0.2 0.4 0.6 1.0 1.2 1.4 1.6 0.020 ① ③ (How to read the allowable swing time graph) 0.016 When using LHA0480-A Lever Inertia Moment： 0.0068kg・ m 0.012 90° Swing ①90° Swing Time when Locking ： About 0.44 sec or more Full Stroke (Reference) ...
- Page 10 Swing Clamp L HA-A Quick Change Lever Type A m o d e l External Dimensions ※1. Slot for Lever Phasing C：Gasket Option (With G Thread Plug) Released State Locked State ※ The drawing shows the released state of LHA-CR-A. R type L type Common for R/L type Release Port ： G Thread ※3 (Only for -C option: able to attach speed control valve) R Type 2-Slot for Lever Phasing Swing Direction Machining Dimensions of Mounting Area When Clamping ※6 Release PortφP ※6 ２-G Thread Plug (Included) L Type (Only for -C Option) 4-φR Lock Port ： G Thread SC Screw ※3 Spot FacingφQ...
- Page 11 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions Model No. Indication ( Format Example：LHA0550-CR-A, LHA0750-SL-A ) Body Size Design No. LHA 048 0 - Piping Method Swing Direction When Clamping Action Confirmation Method (When selecting Blank) Options (When selecting A) External Dimensions and Machining Dimensions for Mounting (mm) Model No. LHA0360-□-A LHA0400-□-A LHA0480-□-A LHA0550-□-A LHA0650-□-A LHA0750-□-A Full Stroke ...
- Page 12 Swing Clamp LHA-A Quick Change Lever Type A m o d e l Quick Change Lever Type A Design Dimensions ※ Reference for designing Quick Change Swing Lever Type A. Corresponding Model No. (mm) LHA0360 LHA0400 LHA0480 LHA0550 LHA0650 LHA0750 Corresponding Model No. -□-A -□-A -□-A -□-A -□-A -□-A 15 18 22 25 30 35.5 + 0 .027 + 0 .027 + 0 .033 + 0 .033 + ...
- Page 13 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions Accessories：Material Swing Lever for Quick Change Lever Type A (mm) Model No. Indication LZH0360 LZH0400 LZH0480 LZH0550 LZH0650 LZH0750 Model No. LZH 048 0 - A -A -A -A -A -A LHA0360 LHA0400 LHA0480 LHA0550 LHA0650 LHA0750 Corresponding Model No. -□-A -□-A -□-A ...
- Page 14 Control Valve B Z L Speed Control Valve (For Low Pressure) m od e l Model No. Indication (Speed Control Valve for Low Pressure) BZL 0 10 0 - B G Thread Size ： Thread Part G1/8A Thread ： Thread Part G1/4A Thread Thread Part Design No. 0 ： Revision Number Control Method B ： Meter-out Circuit Symbol：Meter-out P1 Port P2 port...
- Page 15 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions Flow Rate Characteristic Graph < Hydraulic Fluids ISO-VG32 （25〜35° ）> BZL0100-B：Meter-out BZL0200-B：Meter-out Controlled Flow Direction Controlled Flow Direction Pressure Loss 5MPa Pressure Loss 5MPa Pressure Loss 3MPa Pressure Loss 3MPa Pressure Loss 1MPa Pressure Loss 1MPa ←Closed Number of Turns of Adjusting Screw Opened→ ←Closed Number of Turns of Adjusting Screw Opened→ Free Flowing Direction Free Flowing Direction Fully Opened Fully Opened Fully Closed Fully Closed Pressure Loss (MPa) Pressure Loss (MPa) External Dimensions (mm) Model No. BZL0100-B ...
- Page 16 2）Procedure before Piping ● Please read "Notes on Hydraulic Cylinder Speed Control Unit" to assist ● The pipeline, piping connector and fixture circuits should be cleaned with proper hydraulic circuit designing. Improper circuit design may by thorough flushing. lead to malfunctions and damages. (Refer to page 17) ● The dust and cutting chips in the circuit may lead to fluid leakage ● Ensure there is no possibility of supplying hydraulic pressure to the and malfunction. lock and release ports simultaneously. ● There is no filter provided with Kosmekʼ s product except for a part of valves which prevents foreign materials and contaminants from 3）Swing lever should be designed so that the moment of inertia is small. getting into the air circuit. ● Large moment of inertia will degrade the lever's stopping accuracy and cause undue wear to the clamp. 3）Applying Sealing Tape Additionally, the clamp may not function, depending on supplied ● Wrap with tape 1 to 2 times following the screw direction. hydraulic pressure and lever mounting position. ● Pieces of the sealing tape can lead to oil leakage and malfunction.
- Page 17 Lever Installation/ Model No. Performance External Lever Design Specifications Accessories Cautions Removal Procedure Indication Curve Dimensions Dimensions 6）Swing Speed Adjustment 5）Installation / Removal of the Swing Lever ● Adjust the speed following "Allowable Swing Time Graph". ● Oil or debris on the mating surfaces of the lever, If the clamp operates too fast the parts will wear out leading to taper sleeve or piston rod may cause the rod to loosen. premature damage and ultimately complete equipment failure. Please clean them thoroughly before assembly. ● Please make sure to release air from the circuit before adjusting ● Tighten the tightening bolt of swing lever with the torque shown below. speed. I t will be difficult to adjust the speed accurately with air Tightening with greater torque than recommended can damage mixed in the circuit. the bolt and lever tightening function.
- Page 18 Swing Clamp L HA-A Quick Change Lever Type A m o d e l Cautions ● Notes on Hydraulic Cylinder Speed Control Unit Please pay attention to the cautions below. Design the hydraulic circuit for controlling the action speed of hydraulic cylinder. ！ Improper circuit design may lead to malfunctions and damages. Please review the circuit design in advance. ● Flow Control Circuit for Single Acting Cylinder In the case of meter-out circuit, the hydraulic circuit should For spring return single acting cylinders, restricting flow during be designed with the following points. release can extremely slow down or disturb release action. ① Single acting components should not be used in the same The preferred method is to control the flow during the lock action. flow control circuit as the double acting components. It is also preferred to provide a flow control valve at each actuator The release action of the single acting cylinders may become which has limited action speed (swing clamp, hydraulic compact erratic or very slow. cylinder, etc.) ...
- Page 19 ● The product warranty period is 18 months from shipment from our factory or 12 months from initial use, whichever is earlier. 2）Warranty Scope ● If the product is damaged or malfunctions during the warranty period due to faulty design, materials or workmanship, we will replace or repair the defective part at our expense. Defects or failures caused by the following are not covered. ① If the stipulated maintenance and inspection are not carried out. ② If the product is used while it is not suitable for use based on the operatorʼ s judgment, resulting in defect. ③ If it is used or handled in inappropriate way by the operator. （Including damage caused by the misconduct of the third party.） ④ If the defect is caused by reasons other than our responsibility. ⑤ If repair or modifications are carried out by anyone other than Kosmek, or without our approval and confirmation, it will void warranty. ⑥ Other caused by natural disasters or calamities not attributable to our company. ⑦ Parts or replacement expenses due to parts consumption and deterioration. (Such as rubber, plastic, seal material and some electric components.) Damages excluding from direct result of a product defect shall be excluded from the warranty.
- Page 20 KOSMEK EUROPE GmbH Schleppeplatz 2 9020 Klagenfurt am Wörthersee Austria TEL.+43-463-287587 FAX.+43-463-287587-20 BRANCH OFFICE (INDIA) KOSMEK LTD - INDIA F 203, Level-2, First Floor, Prestige Center Point, Cunningham Road, Bangalore -560052 India TEL.+91-9880561695 THAILAND REPRESENTATIVE OFFICE 67 Soi 58, RAMA 9 Rd., Suanluang, Suanluang, Bangkok 10250 TEL.
