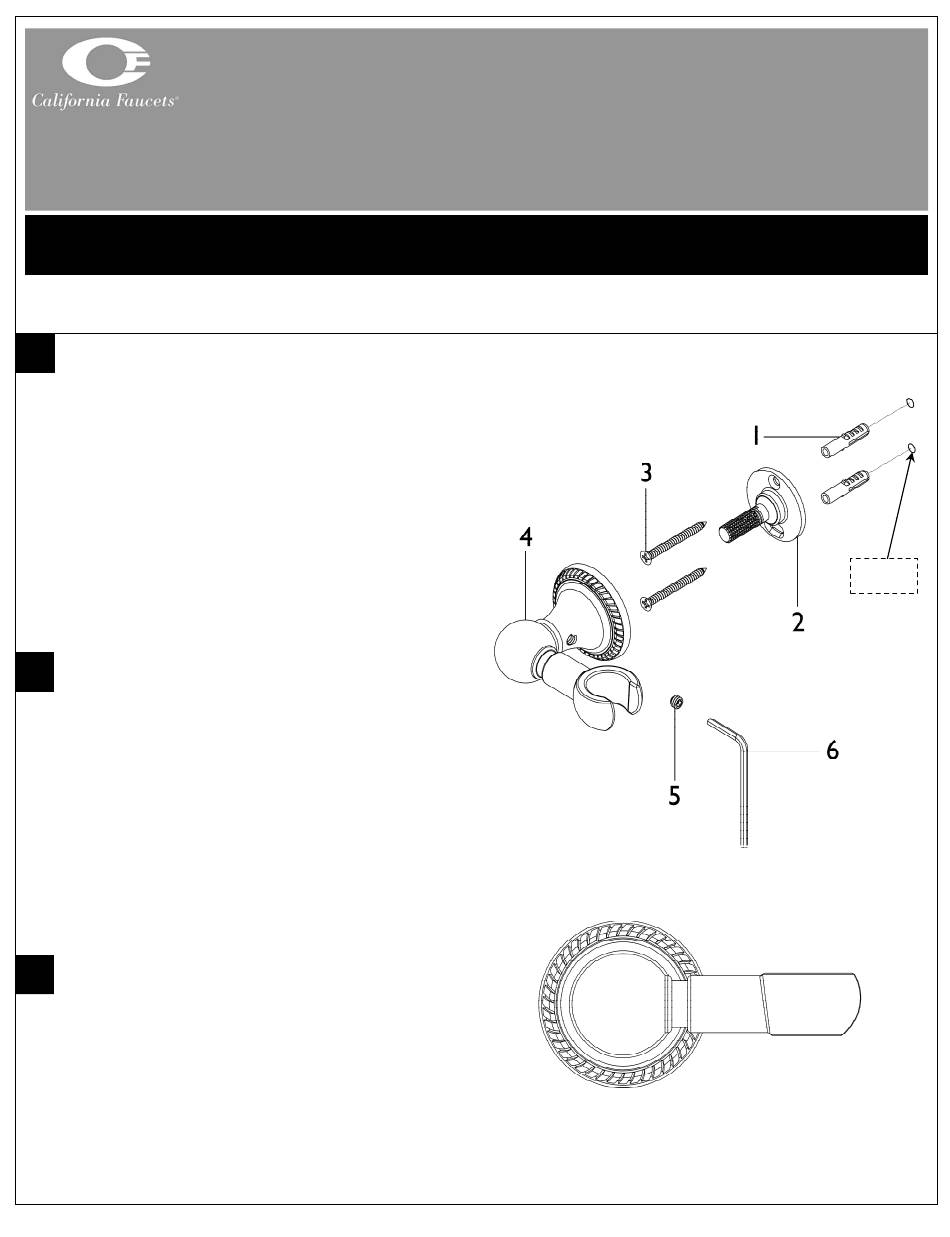

California Faucets Christopher Grubb SH-20S Series Installation Instructions

Handshower Holder Swivel Wall Bracket
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
1
PRE-DRILL WALL FOR SCREW ANCHOR
Remove HOLDER (4) from MOUNT (2) by loosening
•
SETSCREW (5) using supplied hex KEY (6)
Place MOUNT (2) to desired location on finished wall surface
•
and mark the two hole positions
Using appropriate drill bit, drill Ø 1/4" holes from marked
•
hole positions
Insert ANCHORS (1) into drilled holes
•
2
INSTALLING MOUNT TO WALL
Insert SCREWS (3) into MOUNT (2) and loosely tighten
•
SCREWS (3) into ANCHOR (1)
Attach HOLDER (4) onto MOUNT (2) and rotate until hook
•
is horizontal as shown
Carefully remove HOLDER (4) from MOUNT (2) and
•
securely tighten SCREWS (3)
3
ATTACHING HOLDER ASSEMBLY
Attach HOLDER (4) to MOUNT (2)
•
Tighten SETSCREW (5) with hex KEY (6) provided
•
SH-20S-XX_ii_210212
SH-20S-XX
(XX = Series Style for CF Faucets Sets)
Installation Instructions
BY A LICENSED PROFESSIONAL
www.calfaucets.com 5271 Argosy Ave. Huntington Beach, CA 92649
Front View
SH-20S-38 Shown
800-822-8855
DRILL
Ø 1/4"
Pg 1
