California Faucets StyleTherm TH52D2-R Installation Instructions

1/2” thermostatic valve w/ dual non-shared & single control outlets

Advertisement

Quick Links

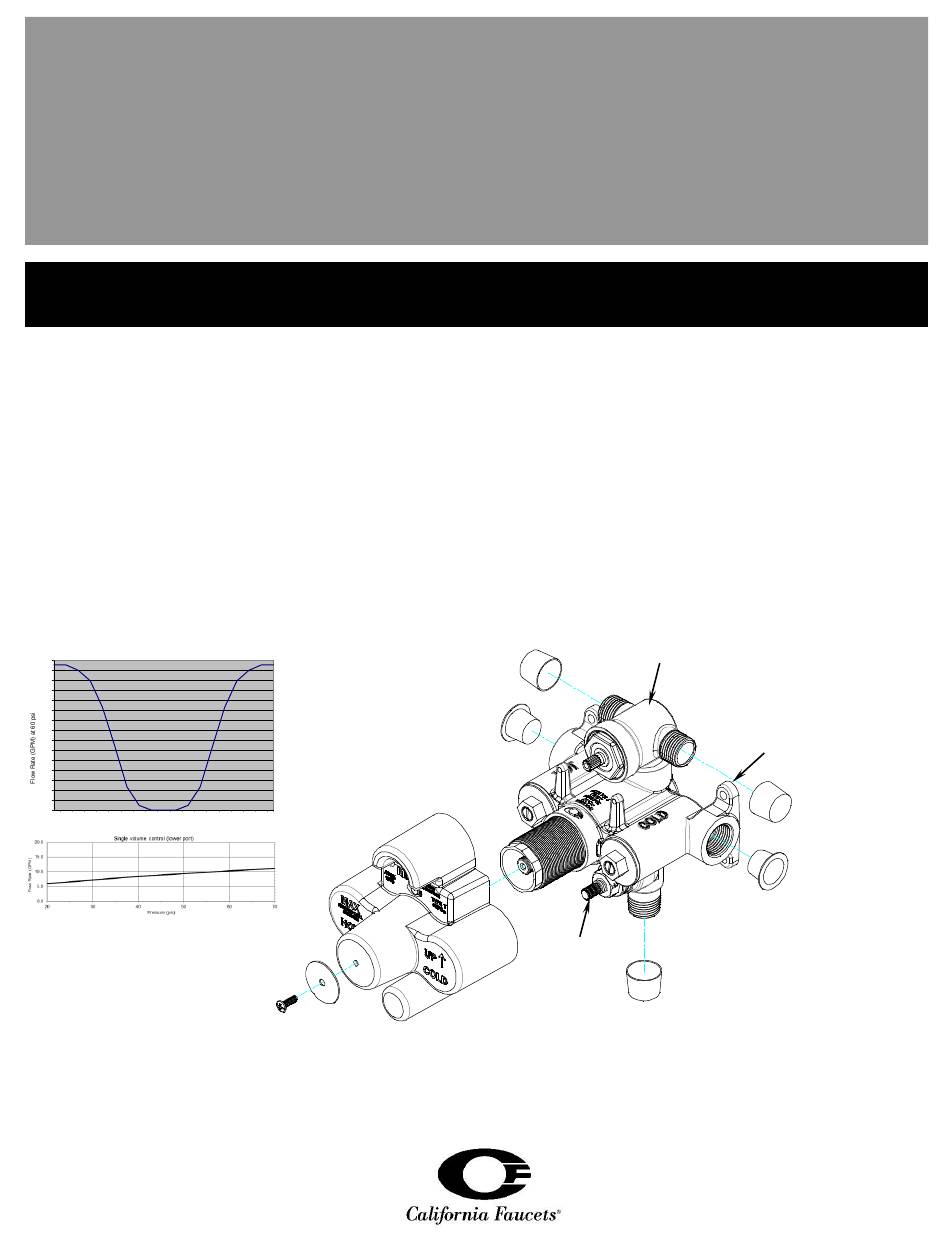

½" Thermostatic Valve w/ Dual Non-Shared & Single Control Outlets
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
WARNING: This valve is factory set to deliver water at 100°F; however, it is the installer's responsibility to verify correct temperature
setting to prevent risk on scalding or other severe injury prior to consumer use. The installer is responsible for adjusting maximum
temperature setting according to Thermostatic Rough and Thermostatic Trim Installation Instructions.
Operating Specifications:
Recommended Supply Pressure:
Recommended Hot Water Supply Temperature:
Nominal Flow Rate @ 60 psi (non-shared port):
Nominal Flow Rate @ 60 psi (lower port):
Operating pressures between hot and cold supplies should vary no more than 30 psi.
*
If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (RPV).
Follow all applicable local plumbing codes when setting the temperature on the water heater.
Dual non-shared volume control (upper port)
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
50
60
70
80
90
100 110 120 130 140 150 160 170 180
Volume Control Lever Rotation
(0=full open RT, 90=closed & 180=full open LT)
TH52D2-R_ii_161005
StyleTherm
TH52D2- R
Installation Instructions
BY A LICENSED PROFESSIONAL
20 to 70 psi
120 to 140°F
7.2 gpm
10.5 gpm
Mudguard
Mudguard
Mudguard
Screw
Washer
*†
Dual Non-Shared
Volume Control
Thread
Protector
Single Volume
Control
Valve
Mounting Tab
Thread
Protector
Body
Pg 1

Advertisement

loading

Summary of Contents for California Faucets StyleTherm TH52D2-R

  • Page 1 TH52D2- R ½” Thermostatic Valve w/ Dual Non-Shared & Single Control Outlets Installation Instructions CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED BY A LICENSED PROFESSIONAL IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
  • Page 2: Water Connections

    INSTALLING VALVE TO FRAME  Determine the desired location for the valve, construct suitable stud, and support framing  Attach VALVE (1) to CROSS SUPPORT (2) by using SCREWS (3) (not supplied) as shown  The valve should be level in HORIZONTAL, VERTICAL and PARALLEL to wall ...
  • Page 3 5” MAX FINISHED WALL  VALVE (1) shall be located in framed wall so that FINISHED WALL (7) falls within the MIN/MAX limits stated on MUDGUARD (4)  The Maximum GAP (8) between FINISHED (7) and 5½” MAX MUDGUARD (4) shall be no more than ∕...
  • Page 4 ROUGH-IN DIMENSIONS SIDE VIEW FRONT VIEW ALL DIMENSIONS SHOWN TO NEAREST 1/16” californiafaucets.com 5271 Argosy Ave. Huntington Beach, CA 92649 800-822-8855 TH52D2-R_ii_161005 Pg 4...
