ENGLISH
Isolated SmartSolar MPPT RS
SmartSolar MPPT RS 450|100 & 450|200
Rev 13 - 05/2024
This manual is also available in HTML5.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSolar MPPT RS and is the answer not in the manual?

Questions and answers

Summary of Contents for Victron energy SmartSolar MPPT RS

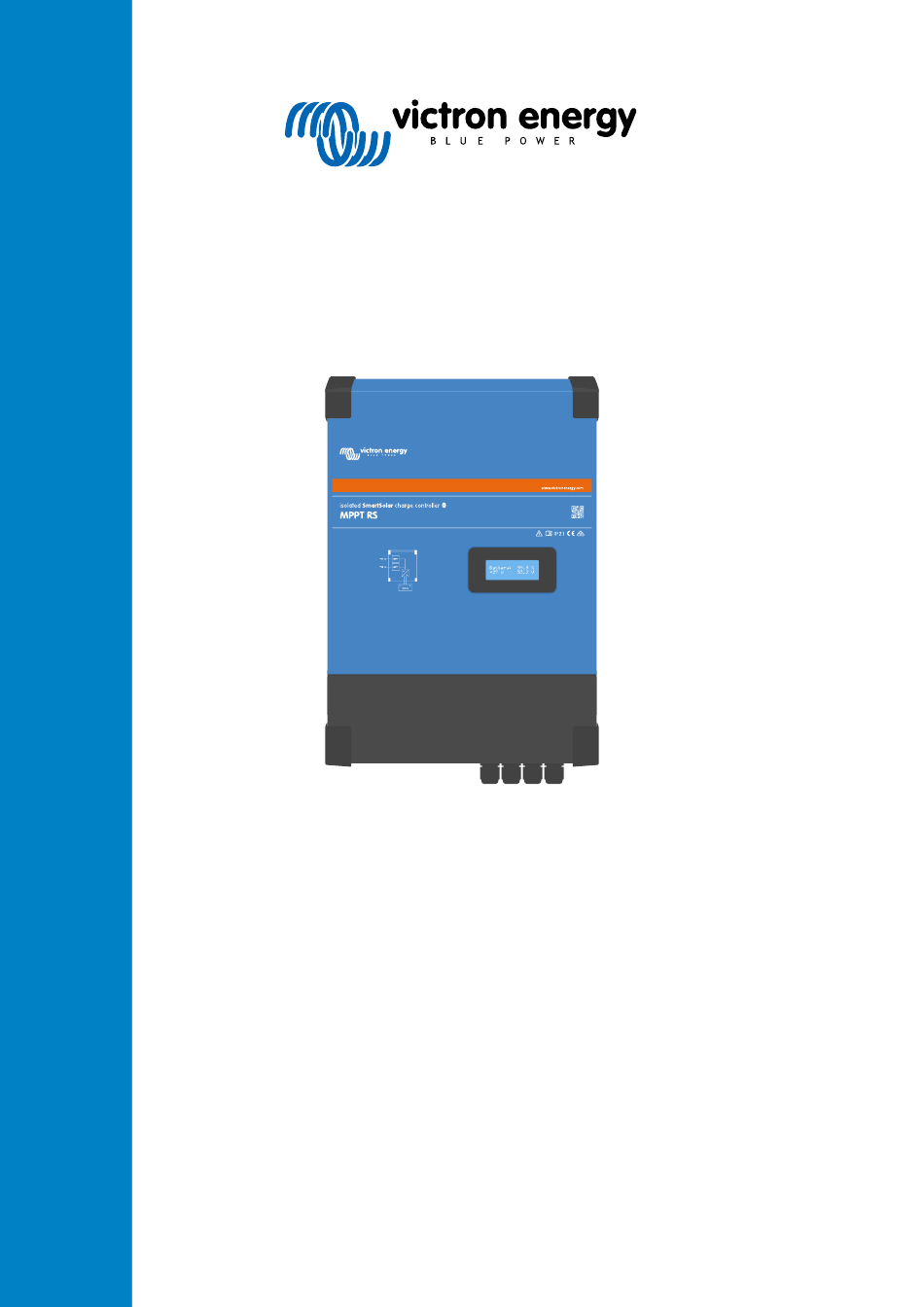

  • Page 1 ENGLISH Isolated SmartSolar MPPT RS SmartSolar MPPT RS 450|100 & 450|200 Rev 13 - 05/2024 This manual is also available in HTML5.
  • Page 2: Table Of Contents

    Isolated SmartSolar MPPT RS Table of Contents 1. Safety Instructions ........................1 1.1. Meaning of icons ......................2 2. General Description ......................... 3 2.1. Features ........................3 2.2. Interfacing and Communications ..................3 2.3. Setup options ........................ 4 3. Installation ..........................5 3.1.
  • Page 3 Isolated SmartSolar MPPT RS 6.5.5. Reverse PV polarity ..................... 32 6.6. Batteries are undercharged ....................32 6.6.1. Insufficient solar ....................33 6.6.2. Too much DC load ....................33 6.6.3. Battery cable voltage drop ..................33 6.6.4. Wrong temperature compensation setting ..............34 6.7.
  • Page 4: Safety Instructions

    Isolated SmartSolar MPPT RS 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only.
  • Page 5: Meaning Of Icons

    Isolated SmartSolar MPPT RS If the maximum AC mains operating voltage is higher than the PV array maximum system voltage, then the instructions shall require PV modules that have a maximum system voltage rating based upon the AC mains voltage.
  • Page 6: General Description

    Isolated SmartSolar MPPT RS 2. General Description The MPPT RS is a solar charge controller intended to operate with a PV voltage of between 65-450V and designed to charge a 48V battery bank. 2.1. Features Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, a fast MPPT algorithm will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Page 7: Setup Options

    Isolated SmartSolar MPPT RS 2.3. Setup options Adaptive three step charging The Charge Controller is configured for a three step charging process: Bulk – Absorption – Float. A regular equalization charge can also be programmed. Bulk- During this stage the controller delivers as much charge current as possible to rapidly recharge the batteries.
  • Page 8: Installation

    This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·...
  • Page 9: Mppt Grounding, Detection Of Pv Array Insulation Faults & Earth Fault Alarm Notification

    Isolated SmartSolar MPPT RS 3.2. MPPT grounding, detection of PV array insulation faults & Earth fault alarm notification The RS will test for sufficient resistive isolation between PV+ and GND, and PV- and GND. In the event of a resistance below the threshold (indicating an earth fault), the inverter shuts down and disables the ac outputs (mppt keeps charging the battery as this has no impact on safety due the isolation to the battery side).
  • Page 10: Solar Input Wiring

    Isolated SmartSolar MPPT RS 3.4. Solar input wiring The MPPT RS 450/100 and the MPPT RS 450/200 Solar charge controllers are available with two different options for PV cable connection methods. • The "- Tr" version has screw terminal blocks inside. The PV cables pass through glands on the bottom of the unit and the lower cover must be removed to access the terminal blocks inside.
  • Page 11: Solar Array Configuration

    Isolated SmartSolar MPPT RS Side-by-side comparison of the MPPT RS 450/200 - MC4 (left) and MPPT RS 450/200 - Tr (right). The MC4 connectors are pre-wired whereas the "- Tr" version has screw terminal blocks, PV wires pass through cable glands at the bottom of the unit.
  • Page 12: Mppt Rs Example Pv Configuration

    Isolated SmartSolar MPPT RS The MPPT RS must keep the individual tracker inputs isolated from each other. That means one solar PV array per input, do not attempt to connect the same array to multiple tracker inputs. When the MPPT switches to float stage it reduces battery charge current by increasing the PV Power Point voltage.
  • Page 13: Cable Connection Sequence

    Isolated SmartSolar MPPT RS Figure 2. MPPT RS PV example diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc 418V and 304V DC PV Distribution 3.6. Cable connection sequence First: Confirm correct battery polarity, connect the battery.
  • Page 14: Energy Storage System (Ess)

    The remote on/off connector has two terminals, the “Remote L” and the “Remote H” terminal. The SmartSolar MPPT RS ships with the remote on/off connector terminals connected to each other via a wire link. Note that for the remote connector to be operational, the main on/off switch on the solar charger needs to be switched to “on”...
  • Page 15: Programmable Analog/Digital Input Ports

    Isolated SmartSolar MPPT RS 3.9.5. Programmable analog/digital input ports The product is equipped with 2 analog/digital input ports, they are labelled AUX_IN1+ and AUX_IN2+ on the removable User I/O terminal block. The digital inputs are 0-5v, and when a input is pulled to 0v it is registered as 'closed' These ports can be configured in VictronConnect.
  • Page 16: Victronconnect Setup, Configuration And Operation

    4. VictronConnect setup, configuration and operation 4.1. Setup The following steps are necessary to successfully connect the SmartSolar MPPT RS via Bluetooth and the VictronConnect app: Make sure that Bluetooth is enabled on your SmartSolar MPPT RS. Bluetooth is enabled by default.
  • Page 17: Overview Page

    Isolated SmartSolar MPPT RS 4.2. Overview page The main overview page provides at-a-glance information of the SmartSolar MPPT RS. It is divided into three tabs: • Status: Instant readout of the basic state of the MPPT charger. • History: View up to the last 30 days of solar and battery data.
  • Page 18 Isolated SmartSolar MPPT RS History tab: • Up to 30 days of historic data is displayed. • Bar graphs show the solar yield in kWh. The shaded areas highlight the time spend in the different charging stages. • The "Solar panel" area records the total solar yield in kWh, maximum PV power and voltage.
  • Page 19: Settings Page

    Isolated SmartSolar MPPT RS 4.3. Settings page The Settings menu is accessible by pressing the cog wheel from the top right of the Overview page. The following menu options are available: • Battery: Adjust the charging parameters for the battery •...
  • Page 20: Product Info

    To get to the Product info page, tap the 3 vertical dots icon from the Settings page. • Product: Shows the product name and the model number. • Serial number: Shows the serial number of the SmartSolar MPPT RS. • NEMA2000 device instance: Displays the network device instance number for this particular device.
  • Page 21: Battery

    • BMS controlled: This item is only visible in case the unit is controlled remotely by a BMS. This is automatically enabled when the SmartSolar MPPT RS detects that it is connected to a system with a BMS. Click this field to change.
  • Page 22 Isolated SmartSolar MPPT RS Charge voltages: • Absorbtion voltage: Set the absorbtion voltage. • Float voltage: Set the float voltage. • Equalization voltage: Set the equalization voltage. Equalization: • Automatic equalization: Set-up the frequency of the auto equalize function. Available options are between 1 and 250 days.
  • Page 23 Isolated SmartSolar MPPT RS When "Expert mode" is enabled, the following additional settings will become available: Bulk: • Re-bulk voltage offset: Set the voltage offset that will be used over the float voltage setting that will determine the threshold that the charge cycle will restart.
  • Page 24: Solar

    The custom name will also be shown on the LCD on the front of the SmartSolar MPPT RS. Tap on the row to set a custom name. 4.7. Relay A programmable relay is available in the SmartSolar MPPT RS. The contacts are accessible via the User I/O terminals. See the User I/O functions table for the pinout.
  • Page 25 Isolated SmartSolar MPPT RS Relay mode One of several relay modes can be selected from the list: • Relay always off: The relay is always off and will not operate under any condition, there are no other configurable options. Use this option if you don't plan to use the relay.
  • Page 26: Display

    Isolated SmartSolar MPPT RS 4.8. Display These settings define the behaviour of the front panel LCD backlight and the temperature unit that it will display. • Display backlight: Set up whether the front panel LCD backlight will be on or off.
  • Page 27: Operation

    Isolated SmartSolar MPPT RS 5. Operation 5.1. Startup and shutdown procedure Note: This presumes the correct installation procedure has been followed, and battery and PV polarity was tested and confirmed to be correct by the installer. These polarity tests are essential as part of installation, but should not be necessary as part of the normal start up and shut down procedure.
  • Page 28: Protections And Automatic Restarts

    Isolated SmartSolar MPPT RS The system will display code notifications as required. See troubleshooting section for additional information. In the top right of the display are other system information icons. Communicating on any interface (e.g., Bluetooth, VE.Can, etc.) Bluetooth Enabled, Icon colour changes when connected...
  • Page 29: Troubleshooting

    Isolated SmartSolar MPPT RS 6. Troubleshooting 6.1. Troubleshooting and support For unexpected behaviour or suspected product faults, refer to this chapter. Start by checking the common issues described here. If the problem persists, contact the point of purchase (Victron dealer or distributor) for technical support.
  • Page 30: Pv Voltage Is Too Low

    Isolated SmartSolar MPPT RS To find out the reason why the solar charger is off, click on the "Why is the charger off?" text. A pop-up window will appear with some of the explanations and possible remedies. Reasons why the solar charger is off: •...
  • Page 31: Disabled In The Settings

    If a flag on top of the relays indicates the "C" position then it is closed. When the relays are closed the PV array is short circuited to stop PV power from entering the SmartSolar MPPT RS. The PV fuses or circuit breakers in the installation may open.
  • Page 32: Pv Input Fuses Blown

    If the fuses close to the PV input terminals are blown then the MPPT will be off. The fuses will blow if a fault has occurred inside the SmartSolar MPPT RS. In this case you should return the unit to the supplier.
  • Page 33: Batteries Are Not Being Charged

    Isolated SmartSolar MPPT RS 6.5. Batteries are not being charged This chapter describes situations where the charger is active, but the batteries are not being charged. The VictronConnect app indicates that the charger is active and the charge voltage is correct, but the charge current is zero, or close to zero.
  • Page 34 Isolated SmartSolar MPPT RS Possible causes of a disconnected battery: • Loose or missing battery cables. • Loose cable connections or badly crimped cable terminals. • A blown (or missing) fuse in the battery supply cable. • Open (or faulty) circuit breaker in the battery supply cable.
  • Page 35: Battery Settings Too Low

    Isolated SmartSolar MPPT RS 6.5.3. Battery settings too low • In the VictronConnect app, navigate to the solar charger "Settings" menu and select the "Battery" menu. • Check if the "Max. charge current" value is set correctly and corresponds with the battery manufacturer's recommendation.
  • Page 36: Insufficient Solar

    Isolated SmartSolar MPPT RS 6.6.1. Insufficient solar Check if the solar charger reaches the float charge stage each day. To investigate look at the history tab in the VictronConnect app. The histogram displays how long the batteries have been charged in the Bulk, Absorption and Float stage each day, for the last 30 days.
  • Page 37: Wrong Temperature Compensation Setting

    Isolated SmartSolar MPPT RS Measure the battery voltage on the terminals of the battery using a multimeter. Compare the two voltages to see if there is a voltage difference. 6.6.4. Wrong temperature compensation setting If the temperature compensation coefficient is set incorrectly, the batteries can be undercharged or be overcharged. The temperature compensation can be set via VictronConnect or via a display.
  • Page 38: Pv Problems

    Isolated SmartSolar MPPT RS A battery contains a number of cells that are connected in series. When a battery is old or has been damaged, a likely scenario is that one of these cells is not operational anymore. When the faulty battery is charged, the damaged cell will not accept charge and the remaining cells will receive the broken cell’s charge voltage and thus will be overcharged.
  • Page 39: Full Rated Output Not Reached

    Isolated SmartSolar MPPT RS The VictronConnect App can be used to see what the maximum PV power was for any of the last thirty days. This information could be used to diagnose problems with less than expected PV power or daily yield.
  • Page 40: Pv Voltage Too High

    An overvoltage event can damage the solar charger, depending on how much the maximum PV voltage was exceeded. This damage is not covered by warranty. 6.9. Communication problems This chapter describes issues that might arise when the SmartSolar MPPT RS is connected to the VictronConnect app, other Victron devices or third-party devices. 6.9.1. VictronConnect app...
  • Page 41: Ve.direct Port

    Isolated SmartSolar MPPT RS If still unresolved, refer to the VictronConnect app manual. • PIN code lost If you have lost the PIN code, you will need to reset the PIN code to its default PIN code. This is done in the VictronConnect app: Navigate to the device list of the VictronConnect app.
  • Page 42: Error Code Overview

    Isolated SmartSolar MPPT RS 6.10. Error code overview The error codes are displayed on the VictronConnect app, display or connected GX device. For the most up-to-date version of this list see this link: https://www.victronenergy.com/live/mppt-error-codes. Note that not all of these errors might apply to your product. Some error types only apply to solar chargers, DC-DC chargers or AC chargers or are specific only to certain models within a charger group.
  • Page 43 Isolated SmartSolar MPPT RS Error 21 - Current sensor issue • The current measurement is out of range. Disconnect all wires, and then reconnect all wires, to make the charger restart. Also, make sure the minus on the MPPT charge controller (PV minus/Battery minus) is not bypassing the charge controller.
  • Page 44 Isolated SmartSolar MPPT RS Multi (connected to the grid): • The ground wire in the installation is not present or not connected properly. • Line and Neutral are swapped in the installation. This error will not auto-reset. Check the installation and restart the unit using the power-switch.
  • Page 45 Isolated SmartSolar MPPT RS When removing charger from such system, and reusing it in a system without BMS, that setting needs to be cleared. Here is how to do that: • Chargers with LCD display: go into the setup menu, and change setting ‘BMS’ from ‘Y’ to ‘N’ (setup item 31).
  • Page 46 Isolated SmartSolar MPPT RS Error 119 - Settings data lost • The charger cannot read its configuration, and stopped. This error will not auto-reset. To get it working again: First, restore it to factory defaults. (top right in Victron Connect, click on the three dots) Disconnect the charge controller from all power-sources Wait 3 minutes, and power up again.
  • Page 47: Technical Specifications

    Isolated SmartSolar MPPT RS 7. Technical Specifications Isolated SmartSolar MPPT 450/100-Tr 450/100-MC4 450/200-Tr 450/200-MC4 CHARGER Programmable charge voltage Minimum: 36 V range Maximum: 60 V Charge voltage'absorption' Default : 57.6 V (adjustable) Charge voltage 'float' Default : 55.2 V (adjustable)
  • Page 48: Compliance

    Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://ve3.nl/7R. UK PSTI STATEMENT OF COMPLIANCE: We, Victron Energy B.V., confirm that our product SmartSolar MPPT RS complies with the security requirements outlined in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.
  • Page 49: Appendix

    Isolated SmartSolar MPPT RS 8. Appendix Page 46 Appendix...
  • Page 50: Appendix B : Block Diagram

    Isolated SmartSolar MPPT RS 8.1. Appendix B : Block Diagram Page 47 Appendix...
  • Page 51: Appendix C : Example System Schematic And Wiring Diagram

    Isolated SmartSolar MPPT RS 8.2. Appendix C : Example system schematic and wiring diagram 8 x 270W 60 cell panels in 11 x 270W 60 cell panels in series – 304 Voc series – 418 Voc AC Input Supply - Either...
  • Page 52: Appendix D : Dimensions

    SmartSolar MPPT RS 450/100-MC4 310.4 6.2(3x) 32.5 43.4 98.3 87.5 87.5 442.3 103.5 26.3 119.2 Dimensions in mm Dimension Drawing - SmartSolar MPPT RS SCC145120510 SmartSolar MPPT RS 450/200-MC4 435.3 147.0 6(4x) 6.2(3x) 44.8 98.3 487.1 115.4 138.2 147.0 Dimensions in mm...
