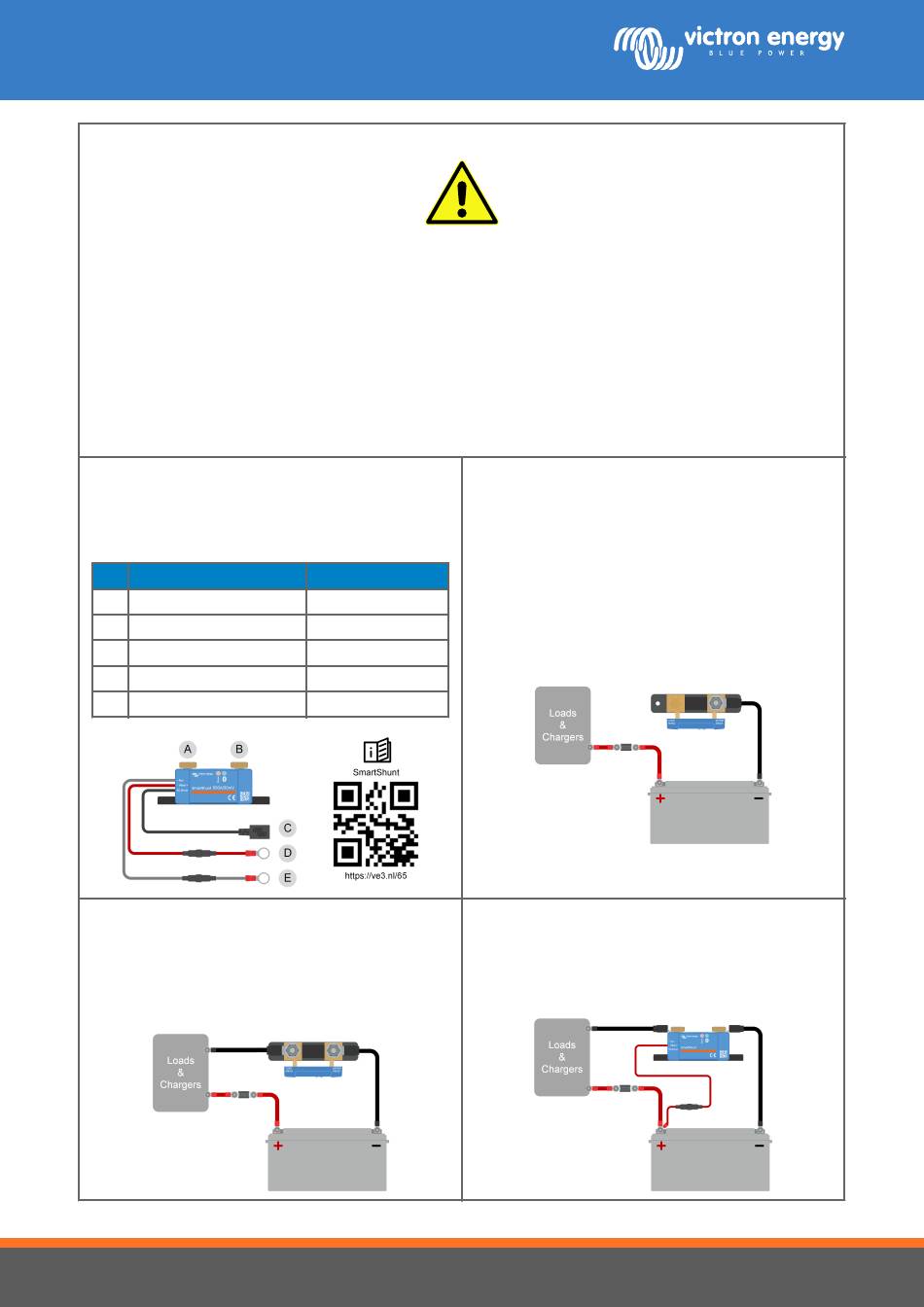

Victron energy SmartShunt IP65 Quick Installation Manual

Quick installation guide
SmartShunt IP65
Battery safety warnings
• Working in the vicinity of a lead-acid battery is dangerous. Batteries can generate explosive gasses during operation. Never smoke
or allow a spark or flame in the vicinity of a battery. Provide sufficient ventilation around the battery.
• Wear eye and clothing protection.
• Avoid touching eyes while working near batteries. Wash your hands when done.
• If battery acid contacts skin or clothing, wash them immediately with soap and water. If acid enters an eye, immediately flood the
eye with running cold water for at least 15 minutes and get medical attention immediately.
• Be careful when using metal tools in the vicinity of batteries. Dropping a metal tool onto a battery might cause a short circuit and
possibly an explosion.
• Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a battery. A battery can produce
a short circuit current high enough to melt objects such as rings, causing severe burns.
1 - Introduction

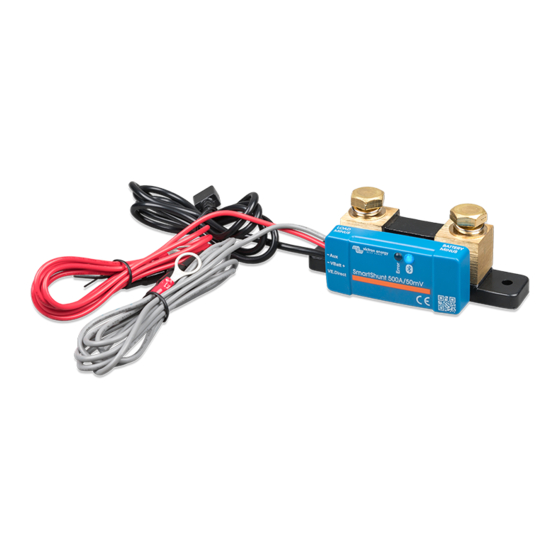

• Familiarize yourself with the SmartShunt.
• The full manual is available online. Scan below QR code or
navigate to: https://ve3.nl/65.
# Connection
A LOAD MINUS
B BATTERY MINUS
C VE.Direct (black wire)
D VBatt+ (red wire)
E Aux (grey wire)
3 - DC system negative
• Connect the negative terminal of the DC electrical system to
the SmartShunt "LOAD MINUS" terminal (A).
2 - Battery negative
• Connect the negative battery terminal to the SmartShunt
"BATTERY MINUS" terminal (B).
Terminal type
M10 bolt
M10 bolt
VE.Direct plug
M10 ring terminal
M10 ring terminal
4 - Power
• Connect the red SmartShunt "VBatt +" wire (D) to the positive
battery terminal.
Page 1 Rev: 01
