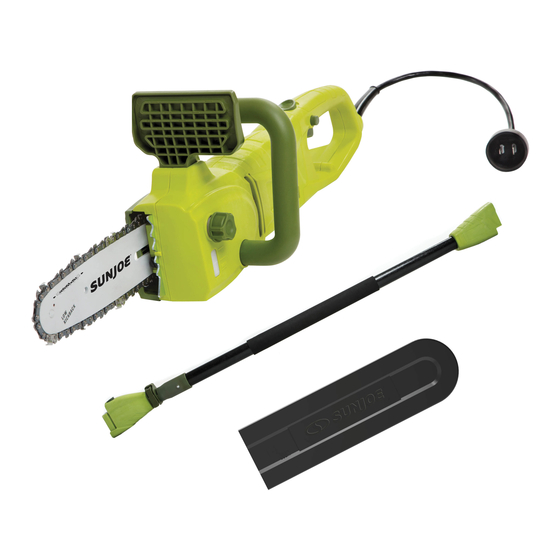

Electric pole + chain saw 8-inch | 8-amp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

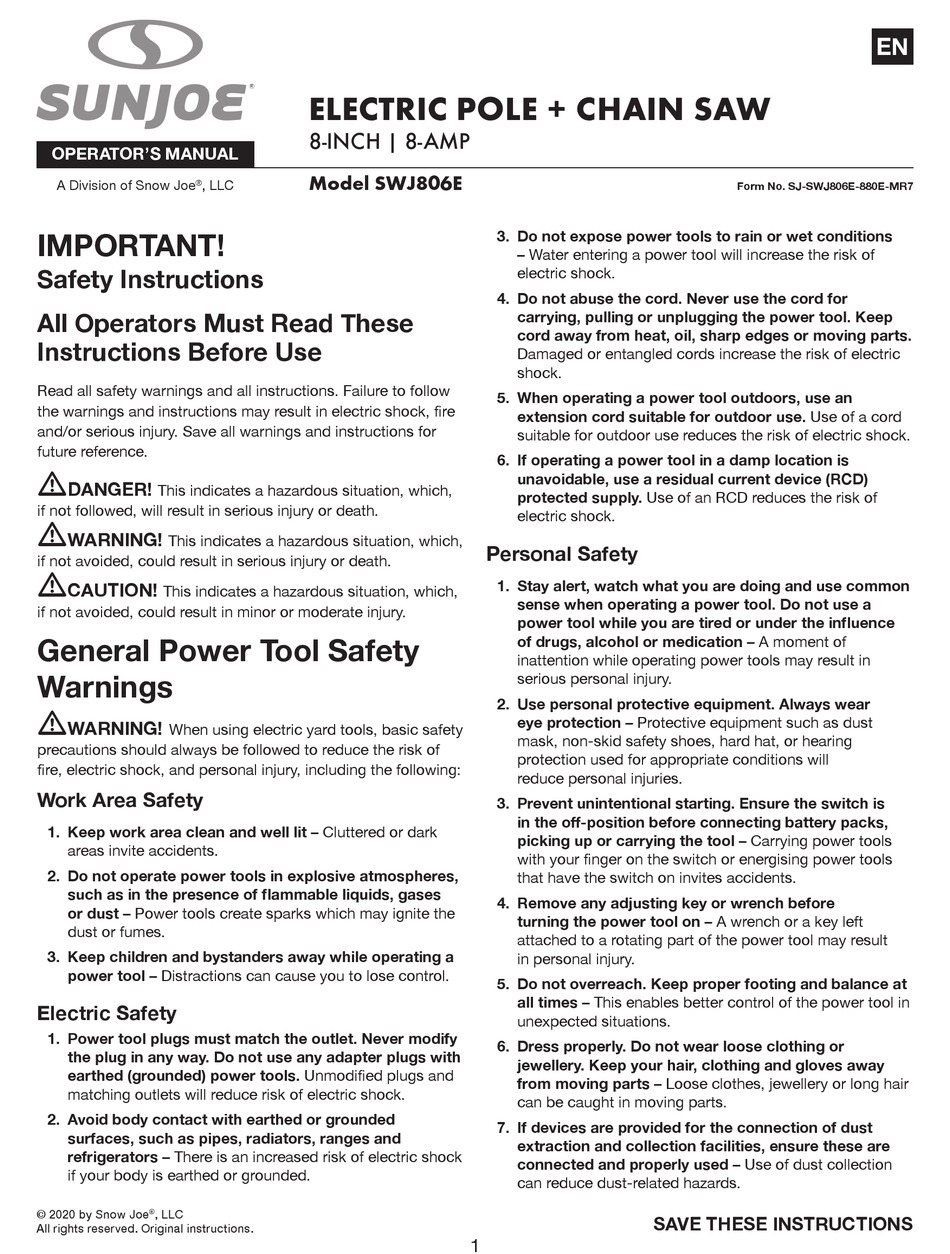

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire
and/or serious injury. Save all warnings and instructions for
future reference.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
General Power Tool Safety
Warnings
m
WARNING!
When using electric yard tools, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
Work Area Safety
1. Keep work area clean and well lit – Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases
or dust – Power tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away while operating a
power tool – Distractions can cause you to lose control.
Electric Safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators – There is an increased risk of electric shock
if your body is earthed or grounded.
© 2020 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
R
ELECTRIC POLE + CHAIN SAW
8-INCH | 8-AMP
Model SWJ806E
3. Do not expose power tools to rain or wet conditions
– Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication – A moment of
inattention while operating power tools may result in
serious personal injury.
2. Use personal protective equipment. Always wear
eye protection – Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting battery packs,
picking up or carrying the tool – Carrying power tools
with your finger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on – A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
5. Do not overreach. Keep proper footing and balance at
all times – This enables better control of the power tool in
unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts – Loose clothes, jewellery or long hair
can be caught in moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used – Use of dust collection
can reduce dust-related hazards.
1
Form No. SJ-SWJ806E-880E-MR7
SAVE THESE INSTRUCTIONS
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sunjoe SWJ806E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOWJOE sunjoe SWJ806E

Summary of Contents for SNOWJOE sunjoe SWJ806E

  • Page 1 ELECTRIC POLE + CHAIN SAW 8-INCH | 8-AMP OPERATOR’S MANUAL Model SWJ806E A Division of Snow Joe , LLC ® Form No. SJ-SWJ806E-880E-MR7 IMPORTANT! 3. Do not expose power tools to rain or wet conditions – Water entering a power tool will increase the risk of Safety Instructions electric shock.

  • Page 2: Chain Saw Safety Warnings

    Power Tool Use and Care • Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is 1. Do not force the power tool. Use the correct power recommended. Adequate protective clothing will reduce tool for your application – The correct power tool will personal injury by flying debris or accidental contact with do the job better and safer at the rate for which it was the saw chain.

  • Page 3: Electrical Safety

    • Maintain a firm grip (right hand on the rear handle and • Do not cut small brush and saplings with the pole chain left hand on the front handle with thumbs and fingers saw. Small branches may catch in the chain and be encircling the respective handles) and position your whipped towards the operator, which could pull the body and arms to allow you to resist kickback forces.
  • Page 4 4. To prevent the appliance cord from disconnecting from the respective handles) and position your body and arms to allow you to resist kickback forces. Kickback forces can extension cord during operation, make a knot with the two cords as shown in Table 1. be controlled by the operator if proper precautions are taken.

  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, Keep bystanders and children and follow all instructions in the a safe distance away.

  • Page 6: Technical Data

    Know Your Electric Pole + Chain Saw Read the owner’s manual and safety instructions carefully before operating the electric pole + chain saw. Compare the illustration below to the electric pole + chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

  • Page 7: Carton Contents

    Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563). Chain/sprocket end WARNING! Unpacking and assembly should be cover completed on a flat and stable surface, with adequate space for moving the machine and its packaging.
  • Page 8 Fig. 3 Fig. 6 Cutting bar Chain Loop 6. Hold the chain in position on the bar and place the loop 3. Remove the old chain from the bar. around the sprocket. Fit the bar flush against the mounting surface so that the bar studs are in the long slot of the bar 4.
  • Page 9 9. Remove all slack from the chain by turning the chain 2. While pulling the handle lock, use the other hand to grasp tensioner screw clockwise until the chain seats snugly the front hand grip and slide the removable cutting head against the bar with the drive links in the bar groove up to remove it (Fig.

  • Page 10: Chain Saw Assembly

    Operation Chain Saw Assembly 1. To remove the cutting head from the telescoping pole, Starting and Stopping PULL the cutting head lock back to release, and grasping the front hand grip, SLIDE UP to remove the cutting head CAUTION! (Fig. 14). •...
  • Page 11 WARNING! Do not operate the electric pole + chain Extension cord Fig. 18 saw in a tree, on a ladder, or on a scaffold. Using the tool restraint hook under such circumstances is extremely dangerous. CAUTION! The chain will continue to run for several seconds after turning off the tool.
  • Page 12 3. Extend the pole to the desired length (Fig. 21). Fig. 23 NOTE: Push poles toward each other to shorten the pole or pull them away from each other to lengthen the pole. Only extend the pole to the minimum length required to reach the limb to be cut.
  • Page 13 Basic Cutting Procedure • Release the trigger ON/OFF switch as soon as the cut is completed. Failure to follow proper cutting procedures will This unit is designed for trimming small branches and limbs up result in the bar and chain binding and becoming pinched to recommended 6.5 in.

  • Page 14: Bucking A Log

    Basic Cutting Procedures Bucking a Log WARNING! WARNING! Do not cut limbs or trees that are larger Do not buck logs that are larger than the than the maximum cutting thickness. maximum cutting thickness. • Practice cutting a few small logs using the following Bucking is the process in which a log is cut into lengths.

  • Page 15: Maintenance

    + Sun Joe customer service center ® ® at 1-866-SNOWJOE (1-866-766-9563) for all maintenance operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualified Chain Needs Tensioning personnel will completely invalidate the warranty.

  • Page 16: Chain Sharpening

    Snow Joe + Sun Joe dealer or call the Snow Joe ® ® ® Sun Joe customer service center at 1-866-SNOWJOE ® Inspection tool Depth (1-866-766-9563). limiter Sharpening is necessary when: tooth •...

  • Page 17: Troubleshooting Tips

    OFF immediately. Remove the to experience problems or need repairs beyond these minor power cord and check the saw for any damage. adjustments, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. If you cannot find the cause of the problem or are uncertain...

  • Page 18: Model And Serial Numbers

    Support If your Sun Joe SWJ806E electric pole + chain saw requires ® service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit.
  • Page 19 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 20 This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com.
