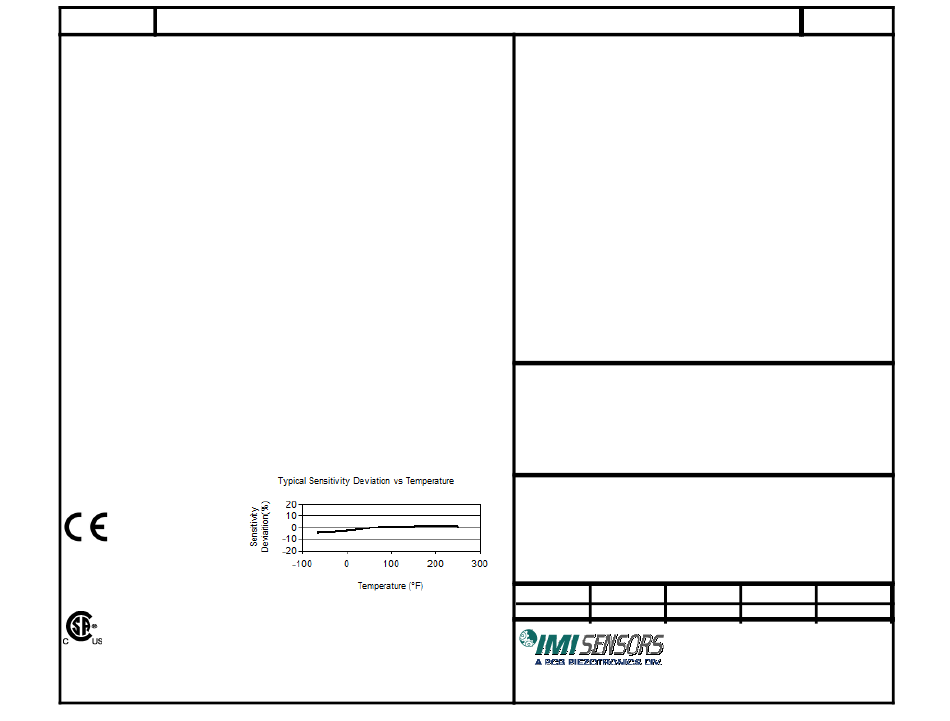

PCB Piezotronics ICP EX639A91 Installation And Operating Manual page 18

Model Number
639A91
Performance
Sensitivity(± 10 %)
Measurement Range
Frequency Range(± 5 %)
Frequency Range(± 3 dB)
Resonant Frequency
Broadband Resolution(1 to 10,000 Hz)
Non-Linearity
Transverse Sensitivity
Environmental
Overload Limit(Shock)
Temperature Range(Operating)
Temperature Response
Enclosure Rating
Electrical
Excitation Voltage
Constant Current Excitation
Output Impedance
Output Bias Voltage
Discharge Time Constant
Settling Time(within 10% of bias)
Spectral Noise(1 Hz)
Spectral Noise(10 Hz)
Spectral Noise(100 Hz)
Spectral Noise(1 kHz)
Electrical Isolation(Case)
Physical
Sensing Element
Sensing Geometry
Housing Material
Sealing
Size (Height x Length x Width) .72 in x .95 in x .95 in
Weight(Maximum)
Electrical Connector
Electrical Connection Position
Mounting
Mounting Torque(Through Bolt)
[4]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
®
ICP is a registered trademark of PCB Piezotronics, Inc.
INDUSTRIAL TRIAXIAL ICP® ACCELEROMETER
EN GLISH SI
100 mV/g 10.2 mV/(m/s²)
± 50 g pk ± 491 m/s² pk
1.5 to 5,500 Hz 1.5 to 5,500 Hz
0.5 to 13 kHz 0.5 to 13 kHz
≥ 26 kHz ≥ 26 kHz
2
.3 mg
3.0 mm/s rms
1 % 1 %
≤ 5 % ≤ 5 %
± 5,000 g pk ± 5,000 g pk
-65 to 250 °F -54 to 121 °C
See Graph See Graph
IP68, IP69K IP68, IP69K
18 to 30 VDC 18 to 30 VDC
2 to 20 mA 2 to 20 mA
≤ 150 Ohm ≤ 150 Ohm
8 to 12 VDC 8 to 12 VDC
≥ .32 sec ≥ .32 sec
< 2 sec < 2 sec
90 µg/√Hz 2
883 (µm/sec )/√Hz
2
20 µg/√Hz
196 (µm/sec )/√Hz
2
10 µg/√Hz
98.1 (µm/sec )/√Hz
2
3.0 µg/√Hz
29.4 (µm/sec )/√Hz
8 8
≥ 10 Ohm ≥ 10 Ohm
Ceramic Ceramic
Shear Shear
Stainless Steel Stainless Steel
Hermetic Hermetic
18.3 mm x 24.1 mm x 24.1
mm
3.0 oz 85 gm
4-Pin, M12 4-Pin, M12
Side Side
Through Hole Through Hole
2 to 5 ft-lb 2.7 to 6.8 n-M
Optional versions have identical specifications and accessories as listed for the standard model except
[1]
where noted below. More than one option may be used.
- Hazardous Area Approval- contact factory for
EX
specific approvals
M - Metric Mount
[2]
Supplied Accessory: Model M081A119 Supplied Accessories: M081A119 mounting bolt replaces
081A119
[3]
[2]
[2][1]
[2][1]
[2][1]
[2][1]
N OTES:
[1]Conversion Factor 1g = 9.81 m/s².
[2]Typical.
[3]Zero-based, least-squares, straight line method.
[4]See PCB Declaration of Conformance PS023 for details.
SUPPLIED ACCESSORIES:
Model 081A119 Captive mounting bolt 1/4-28 x .625" (1)
Model ACS-1T NIST traceable triaxial amplitude response, 10 Hz to upper 5% frequency. (1)
Entered: LK Engineer: NJF
Date: 11/15/2019 Date: 11/15/2019 Date: 11/15/2019 Date: 11/15/2019 64198
Revision: D
ECN #: 50195
OPTION AL VERSION S
Sales: MC Approved: NJF Spec Number:
IMI Sensors 3425 Walden Depew, NY 14043
UNITED STATES
Phone: 800-959-4464
Fax: 716-684-3823
E-Mail: imi@pcb.com
Web site: http://www.imi-sensors.com
