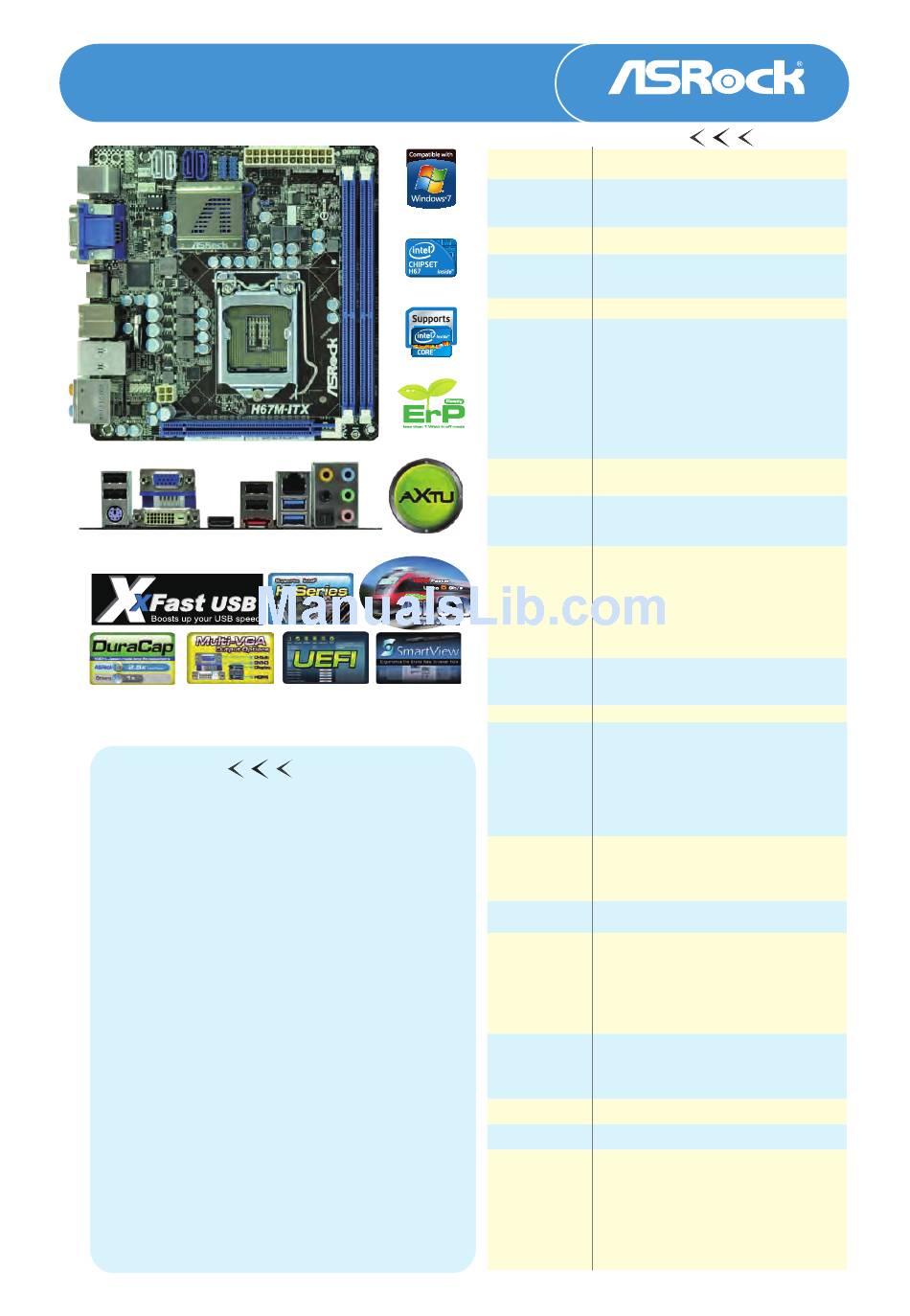

ASROCK H67M-ITX Specification Sheet

H67M-ITX
®
Intel H67 Chipset
Product Brief
- ASRock DuraCap (2.5 x longer life time, 100%
Japan-made high-quality Conductive Polymer
Capacitors)
®
- Supports Intel K-Series unlocked CPU
- Supports Dual Channel DDR3 1333
- Intel ® HD Graphics 2000/3000 and new Visual
Features, DX10.1, Pixel Shader 4.1
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Multi VGA Output options: D-Sub, DVI-D, HDMI
- 2 x SATA3, 2 x USB 3.0, 8 x USB 2.0 , 1 x
eSATA2
- Supports AXTU, UEFI, XFast USB, Instant Boot,
Instant Flash, APP Charger, Good Night LED,
SmartView
- 7.1 CH HD Audio with Content Protection (Realtek
ALC892 Audio Codec)
- Free Bundle : 1 x 3D Red/Cyan Anaglyph Glasses
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
w w w. as rock . com
Detail Specification
Platform
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Supports 2 nd Generation Intel
Package
- Supports Intel ® Turbo Boost 2.0 Technology
®
- Supports Intel K-Series unlocked CPU
- Supports Hyper-Threading Technology
Chipset
- Intel ® H67
- Dual Channel DDR3 memory technology
Memory
- 2 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
Expansion Slot
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
* Requires Processor with Intel
Graphics*
- Intel ® HD Graphics 2000/3000 and new Visual Features
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to 1920x
1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI
(Compliant HDMI monitor is required)
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker
/ Microphone
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
SATA3
RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and "Hot
Plug" functions
- 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to
USB 3.0
5Gb/s
- 2 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID
Connector
10, RAID 5 and Intel Rapid Storage),NCQ, AHCI and Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x CIR header
- 1 x COM port header
- 1 x Power LED header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage
Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version),
Support CD
- ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature - ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
®
OS - Microsoft Windows
XP 64-bit compliant
- FCC, CE, WHQL
Certifications
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
- 1 x 3D Red/Cyan Anaglyph Glasses (Optional)
® Core TM i7 / i5 / i3 in LGA1155
®
Graphics Technology
® TM TM
7 / 7 64-bit / Vista / Vista 64-bit / XP /
