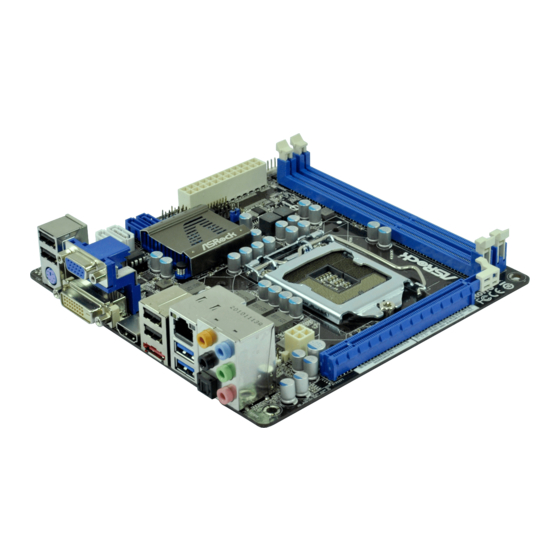

ASROCK H67M-ITX User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. H67M-ITX
  6. User manual

ASROCK H67M-ITX User Manual

Hide thumbs Also See for H67M-ITX:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

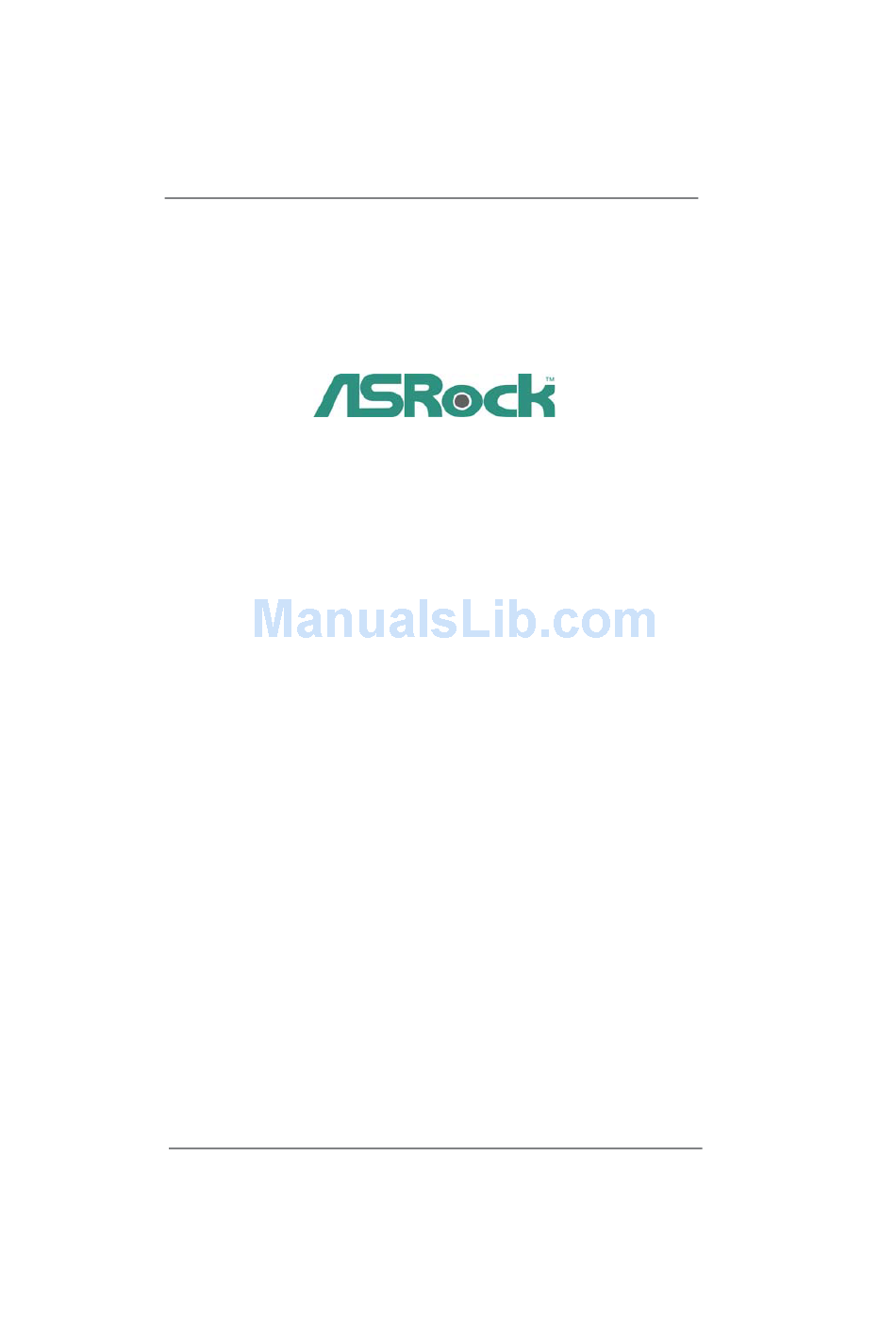

Enlarged version
H67M-ITX/HT
H67M-ITX

User Manual

Version 1.0
Published January 2011
Copyright©2011 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H67M-ITX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK H67M-ITX

Summary of Contents for ASROCK H67M-ITX

  • Page 1: User Manual

    H67M-ITX/HT H67M-ITX User Manual Version 1.0 Published January 2011 Copyright©2011 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of profi ts, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product.

  • Page 3: Table Of Contents

    ..... 34 2.13 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs ................35 2.14 Hot Plug and Hot Swap Functions for SATA3 HDDs ..35 2.15 SATA / SATAII / SATA3 HDD Hot Plug Feature and Operation Guide ............
  • Page 4 3.3 OC Tweaker Screen ............43 3.4 Advanced Screen ............46 3.4.1 CPU Confi guration ..........47 3.4.2 Intel IGD SWSCI OpRegion Confi guration... 49 3.4.3 North Bridge Confi guration........50 3.4.4 South Bridge Confi guration ........51 3.4.5 Storage Confi guration .......... 52 3.4.6 Super IO Confi...

  • Page 5: Introduction

    ASRock’s commit- ment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation. Chapter 3 and 4 contain the confi guration guide to BIOS setup and information of the Support CD.

  • Page 6: Specifi Cations

    Specifications Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) ® - Supports 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package ®...
  • Page 7 - 4 x Ready-to-Use USB 2.0 Ports - 1 x eSATA2 Connector - 2 x Ready-to-Use USB 3.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (see CAUTION 7) SATA3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,...
  • Page 8 Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
  • Page 9 Your friends then can load the OC profi le to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve effi...
  • Page 10 BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS fi le to your USB fl ash drive, fl oppy disk or hard drive, then you can update your BIOS only in a few clicks without prepar- ing an additional fl...
  • Page 11 EuP ready power supply are required. According to Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power effi ciency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you...

  • Page 12: Motherboard Layout (H67M-Itx/Ht)

    (Dual Channel: DDR3_A1, DDR3_B1, Blue) SATA2 Connector (SATA_2 (port 4), Blue) 1155-Pin CPU Socket SATA2 Connector (SATA_3 (port 5), Blue) PCI Express 2.0 x16 Slot (PCIE1, Blue) USB 2.0 Header (USB6_7, Blue) ATX 12V Power Connector (ATX12V1) USB 2.0 Header (USB8_9, Blue)

  • Page 13: Motherboard Layout (H67M-Itx)

    (Dual Channel: DDR3_A1, DDR3_B1, Blue) SATA3 Connector (SATA_1 (port 1), White) 1155-Pin CPU Socket SATA2 Connector (SATA_2 (port 4), Blue) PCI Express 2.0 x16 Slot (PCIE1, Blue) SATA2 Connector (SATA_3 (port 5), Blue) ATX 12V Power Connector (ATX12V1) USB 2.0 Header (USB6_7, Blue) Front Panel Audio Header USB 2.0 Header (USB8_9, Blue)

  • Page 14: I/O Panel (H67M-Itx/Ht)

    Optical SPDIF Out Port PS/2 Keyboard Port (Purple) Line In (Light Blue) Antenna Ports * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications ACT/LINK...

  • Page 15: I/O Panel (H67M-Itx)

    VGA/DVI-D Port Optical SPDIF Out Port PS/2 Keyboard Port (Purple) Line In (Light Blue) * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications ACT/LINK...

  • Page 16: Remote Receiver And Remote Controller (H67M-Itx/Ht)

    Remote Controller. The Remote Receiver is able to receive the multi-direction infrared signals from the Remote Controller (top, down and front), which is compatible with most of the chassis on the market. For the installation guide, please refe to page 28 for details.

  • Page 17: Wifi-802.11N Module And Asrock Wifi 2.4Ghz Antenna (H67M-Itx/Ht)

    WiFi function. With WiFi-802.11n module, you can easily create a wireless environment and enjoy the convenience of wireless network connectivity. Therefore, from anywhere within the signal range, you will be able to play LAN games, connect to the internet, access and share printers, and make Internet phone calls easily.
  • Page 18 WiFi-802.11n module supports Station mode. You can use the wireless function to connect the access point (AP), or connect with other stations in the wireless range instead. There are two choices provided in station mode: Infrastructure mode and Ad-hoc mode. Please read below introduction for the differences of these two modes.

  • Page 19: Installation

    Chapter 2: Installation This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the confi guration of your chassis to ensure that the motherboard fi ts into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 20: Cpu Installation

    Before you insert the 1155-Pin CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Other- wise, the CPU will be seriously damaged.
  • Page 21 1155-Pin CPU For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Step 3-3. Carefully place the CPU into the socket by using a purely vertical mo- tion.

  • Page 22: Installation Of Cpu Fan And Heatsink

    Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155- Pin CPU to dissipate heat. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dis- sipation.

  • Page 23: Installation Of Memory Modules (Dimm)

    DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. notch break...

  • Page 24: Expansion Slots (Pci Express Slots)

    Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 4. Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5.

  • Page 25: Dual Monitor And Surround Display Features

    Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D, D-Sub and HDMI), you can easily enjoy the benefi ts of dual monitor feature without installing any add-on VGA card to this motherboard. This mother-...
  • Page 26 Please refer to the following steps to set up a surround display environment: 1. Install the PCI Express VGA card on PCIE1 slot. Please refer to page 24 for proper expansion card installation procedures for details.
  • Page 27 C. Click “OK” to save your change. D. Repeat steps A through C for the display icon identifi ed by the number three and four. 6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use.

  • Page 28: Remote Receiver Installation Guide

    Remote Controller, please try to install it to the other front USB port. * Only one of the front USB port can support CIR function. When the CIR function is enabled, the other port will remain USB function.

  • Page 29: Jumpers Setup

    CMOS when you just fi nish updating the BIOS, you must boot up the system fi rst, and then shut it down before you do the clear-CMOS ac- tion. Please be noted that the password, date, time, user default profi le, 1394...

  • Page 30: Onboard Headers And Connectors

    2.10 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATAII Connectors...
  • Page 31 Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).
  • Page 32 Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.
  • Page 33 Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

  • Page 34: Serial Ata (Sata) / Serial Ataii (Sataii) Hard Disks Installation

    STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII con- nector. STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard disk. 2.12 Serial ATA3 (SATA3) Hard Disks Installation ®...

  • Page 35: Hot Plug And Hot Swap Functions For Sata / Sataii Hdds

    SATA / SATAII HDD. What is Hot Swap Function? If SATA / SATAII HDDs are built as RAID 1 or RAID 5 then it is called “Hot Swap” for the action to insert and remove the SATA / SATAII HDDs while the system is still power-on and in working condition.

  • Page 36: Sata / Sataii / Sata3 Hdd Hot Plug Feature And Operation Guide

    1. Below operation procedure is designed only for our motherboard, which supports SATA / SATAII / SATA3 HDD Hot Plug. * The SATA / SATAII / SATA3 Hot Plug feature might not be supported by the chipset because of its limitation, the SATA / SATAII / SATA3 Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com...
  • Page 37 SATA / SATAII / SATA3 HDD damage and data loss. Step 1 Unplug SATA data cable from SATA / SATAII / SATA3 HDD side. Step 2 Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII / SATA3 HDD side.

  • Page 38: Driver Installation Guide

    Support CD, “Guide to SATA Hard Disks Installation and RAID Confi guration”, which is lo- cated in the folder at the following path: .. \ RAID Installation Guide and the document in the support CD, “Guide to Intel Rapid Storage”, which is located in the folder at the follow- ing path: ..

  • Page 39: Installing Windows

    7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64- bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow below procedures according to the OS you install. 2.18.1 Installing Windows XP / XP 64-bit Without RAID ®...

  • Page 40: Uefi Setup Utility

    To exit the current screen or the UEFI SETUP UTILITY Use < > key or < > key to choose among the selections on the menu bar, and then press <Enter> to get into the sub screen. You can also use the mouse to click your required item.

  • Page 41: Navigation Keys

    To save changes and exit the UEFI SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen 3.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. H67M-ITX/HT...
  • Page 42 H67M-ITX...

  • Page 43: Oc Tweaker Screen

    Vista / 7 and want to enable this function, please set this item to [Enabled]. This item will be hidden if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issue with some power supplies.
  • Page 44 Turbo Boost Power Limit Use this item to adjust Turbo Boost power limit. Confi guration options: [Auto] and [Manual]. The default value is [Auto]. Core Current Limit Use this item to add voltage when CPU is in Turbo mode. DRAM Timing Control...
  • Page 45 [Auto], [Slow] and [Fast]. The default value is [Auto]. Voltage Control Power Saving Mode Use this to enable or disable Power Saving Mode. The default value is [Disabled]. DRAM Voltage Use this to select DRAM Voltage. Confi guration options: [Auto], [1.250V] to [1.800V].

  • Page 46: Advanced Screen

    fi rst like MS-DOS or Windows . Just launch this tool and save the new UEFI fi le to your USB fl ash drive, fl oppy disk or hard drive, then you can update your UEFI only in a few clicks without preparing an additional fl...

  • Page 47: Cpu Confi Guration

    CPU does not support Hyper-Threading technology. Active Processor Cores Use this item to select the number of cores to enable in each processor package. Confi guration options: [All], [1] and [2]. The default value is [All].
  • Page 48 IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory Protection” can prevent data pages from being used by malicious software to execute code. This option will be hidden if the current CPU does not support No-Excute Memory Protection.

  • Page 49: Intel Igd Swsci Opregion Confi Guration

    3.4.2 Intel IGD SWSCI OpRegion Configuration DVMT Mode Select Use this option to adjust DVMT mode. The default value is [DVMT Mode]. DVMT (Dynamic Video Memory Technology) is an architecture that offers breakthrough performance for the motherboard through effi cient memory utilization.

  • Page 50: North Bridge Confi Guration

    Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for Directed I/O). The default value of this feature is [Disabled]. Primary Graphics Adapter This allows you to select the boot graphic adapter priority. Confi guration options: [Onboard] and [PCI Express]. The default value is [PCI Express].

  • Page 51: South Bridge Confi Guration

    This allows you to enable or disable the “Onboard HDMI HD Audio” feature. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. Please set this option to [Enabled] if you plan to use this ®...

  • Page 52: Storage Confi Guration

    3.4.5 Storage Configuration SATA Mode Use this to select SATA mode. Confi guration options: [IDE Mode], [AHCI Mode] and [RAID Mode]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

  • Page 53: Super Io Confi Guration

    Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Confi guration options: [Auto], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4], [2E8 / IRQ3].

  • Page 54: Acpi Confi Guration

    Use this item to enable or disable PS/2 keyboard to turn on the system from the power-soft-off mode. PCI Devices Power On Use this item to enable or disable PCI devices to turn on the system from the power-soft-off mode. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the power-soft-off mode.

  • Page 55: Usb Confi Guration

    3.4.8 USB Configuration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. USB 3.0 Controller Use this item to enable or disable the use of USB 3.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four confi...

  • Page 56: Hardware Health Event Monitoring Screen

    3.5 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 57: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to confi g- ure the boot settings and the boot priority. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key.

  • Page 58: Security Screen

    3.7 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it.

  • Page 59: Exit Screen

    When you select this option, it will pop-out the following message, “Discard changes?” Select [OK] to discard all changes. Load UEFI Defaults Load UEFI default values for all the setup questions. F9 key can be used for this operation. Launch EFI Shell from fi lesystem device Attempts to Launch EFI Shell application (Shell64.efi) from one of the...

  • Page 60: Software Support

    CD automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the Main Menu did not appear automatically, locate and double click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to dis- play the menus.

  • Page 61: Installing Os On A Hdd Larger Than 2Tb

    2. Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility > Advanced > Storage Confi guration > SATA Mode. 3. Choose the item “UEFI:xxx“ to boot in UEFI Setup Utility > Boot > Boot Option #1. ®...
