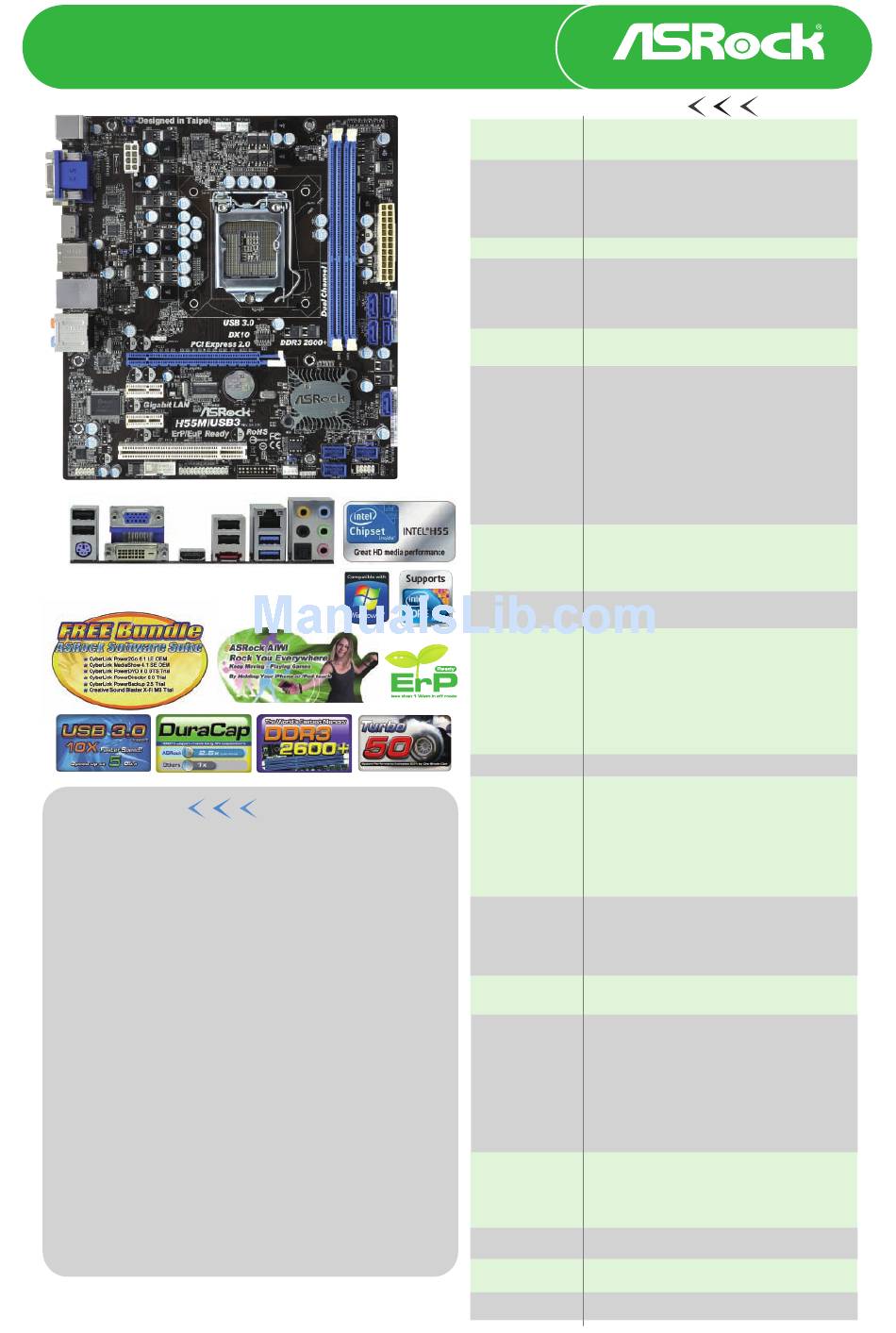

ASROCK H55M/USB3 R2.0 Brochure

H55M/USB3 R2.0
Intel H55 Chipset
®
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Supports Dual Channel DDR3 2600+(OC)
- Supports ASRock AIWI
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- 1 x USB 3.0 port, Combo Cooler Option
(C.C.O.)
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, Good Night LED, Multi-Speed Fan
Control, OC Tuner, IES
- Turbo 50 / Turbo 100 Technology
- ErP/EuP Ready
- Supports HDMI Audio with Dolby True HD and
DTS HD Master Audio
- 7.1 CH HD Audio with Content Protection
(Realtek ALC892 Audio Codec), Premium
Blu-ray audio support
- Free Software : CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster
X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive
Polymer Capacitors)
CPU
- Supports Intel
Processors in LGA1156 Package
- 4 + 1 Power Phase Design
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel H55
®
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/
1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
- Supports Intel
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 2 x PCI Express 2.0 x1 slots (2.5GT/s)
- 1 x PCI slot
* Requires Processor with Intel
Graphics *
- Intel ® HD Graphics
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up to
1920x1200
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI 1.3a (Compliant HDMI monitor is
required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Supports HDMI Audio with Dolby True HD and DTS HD Master Audio
(when Intel ® Core
CPU is installed)
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 5 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Connector
- 1 x Ready-to-Use USB 3.0 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone
USB 3.0
- 1 x USB 3.0 port by Fresco FL1000G, supports USB 3.0 up to 5Gb/s
Connector
- 5 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
functions
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 64Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, VCCM, SB, VTT, PCH PLL Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Turbo 50 / Turbo 100 Technology (Requires Processor with Intel
Graphics Technology)
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Fan Multi-Speed Control
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
