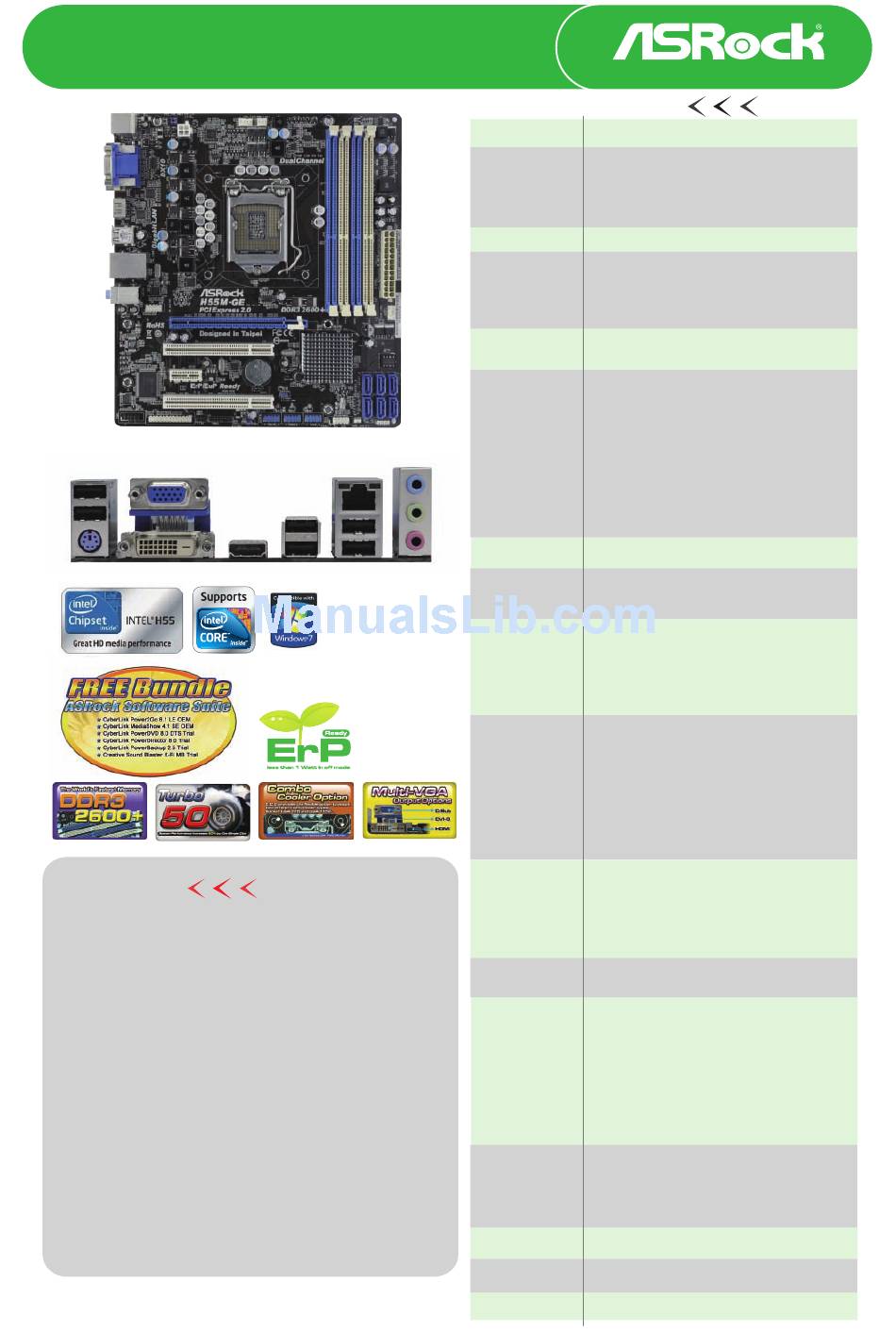

ASROCK H55M-GE Brochure & Specs

H55M-GE
Intel H55 Chipset
®
Product Brief
- Supports Dual Channel DDR3 2600+(OC)
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, Good Night LED, Multi-Speed Fan
Control, OC Tuner, IES
- Supports Turbo 50 / Turbo 100 Technology
- Combo Cooler Option (C.C.O.)
- ErP / EuP Ready
- Free Software: CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB -
Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om

Detail Specification

Platform
- Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
CPU
- Supports Intel
LGA1156 Package
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel H55
®
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Supports Intel
Expansion Slot - 1 x PCI Express 2.0 x16 slot (5GT/s at x16 mode)
- 1 x PCI Express 2.0 x1 slot (2.5GT/s)
- 2 x PCI slots
* Requires Processor with Intel
Graphics *
- Intel HD Graphics
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up to
1920x1200
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High
Bit Rate Audio) with HDMI 1.3a (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
with DVI and HDMI ports
Audio
- 5.1 CH HD Audio (VIA
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
functions
- 1 x IR header
- 1 x Print Port header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x TPM header
- 1 x Chassis Intrusion header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 16Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, CPU GFX, VCCM, VTT, PCH PLL Voltage Multi-adjustment
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software
Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster
X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Turbo 50 / Turbo 100 Technology (Requires Processor with Intel
Graphics Technology)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
Core i7 / i5 / i3 and Pentium G6950 Processors in
® TM ®
® Turbo Boost Technology
Extreme Memory Profile (XMP)
®
® Graphics Technology
VT1705 Audio Codec)
®
7 / 7 64-bit / Vista / Vista 64-bit / XP / XP
® TM TM
®
