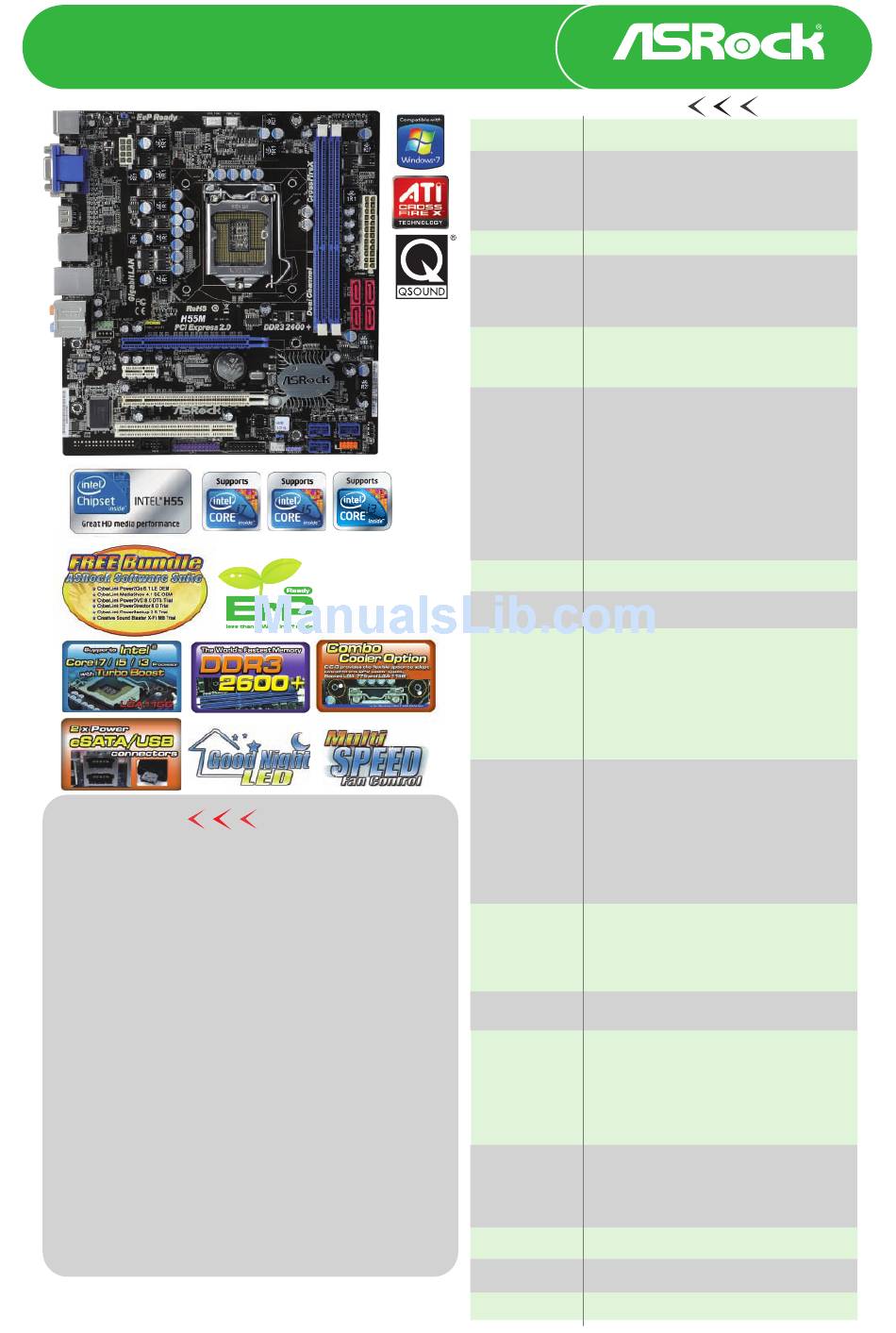

ASROCK H55M Brochure

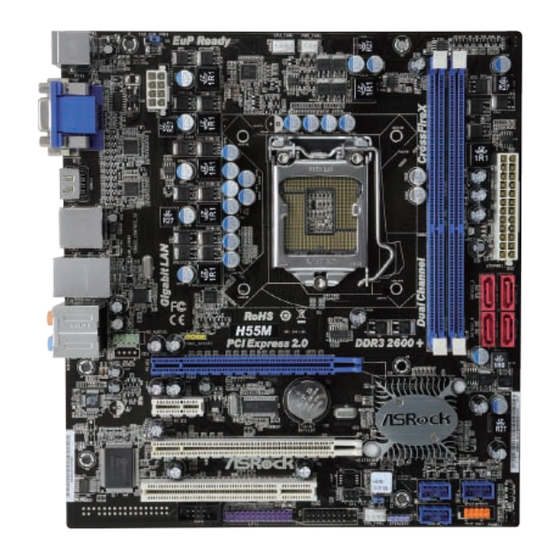

H55M
Intel H55 Chipset
®
Product Brief
- Supports Dual Channel DDR3 2600+ (OC)
- Supports ATI™ CrossFireX™ and
Quad CrossFireX™
- 1 x PCI Express 2.0 x16 slot (at x16 mode),
1 x PCI Express 2.0 x16 slot (at x4 mode,
2.5GT/s)
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- Supports Full HD 1080p Blu-ray (BD) /
HD-DVD playback
- 2 x Powered eSATAII/USB Connectors,
Combo Cooler Option (C.C.O.)
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, OC DNA, Intelligent Energy Saver,
Multi-Speed Fan Control, Good Night LED
- ErP/EuP Ready
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om
Detail Specification
Platform - Micro ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm
- Solid Capacitor for CPU power
CPU
- Supports Intel
Processors in LGA1156 Package
- 4 + 1 Power Phase Design
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel H55
®
- Dual Channel DDR3 memory technology
Memory
- 2 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/
1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
- Supports Intel
- 1 x PCI Express 2.0 x16 slot (at x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
- 1 x PCI Express 2.0 x1 slot (2.5GT/s)
- 1 x PCI slot
- Supports ATI
* Requires Processor with Intel
Graphics *
- Intel Graphics Media Accelerator HD
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.3a Technology with max. resolution up
to 1920x1200
- Supports DVI with max. resolution up to 1920x1200 @
60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @
75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 1.3a
(Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 7.1 CH HD Audio (VIA
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Connector
- 4 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 1 x IR header
- 1 x Print Port header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x TPM header
- 1 x Chassis Intrusion header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature - 16Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, CPU GFX, VCCM, SB, VTT, PCH_PLL Voltage
Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
Core i7 / i5 / i3 and Pentium G6950
® TM ®
Turbo Boost Technology
®
Extreme Memory Profile (XMP)
®
CrossFireX and Quad CrossFireX
TM TM
Graphics Technology
®
VT1718S Audio Codec)
®
7 / 7 64-bit / Vista / Vista
® TM TM
TM
64-bit /
